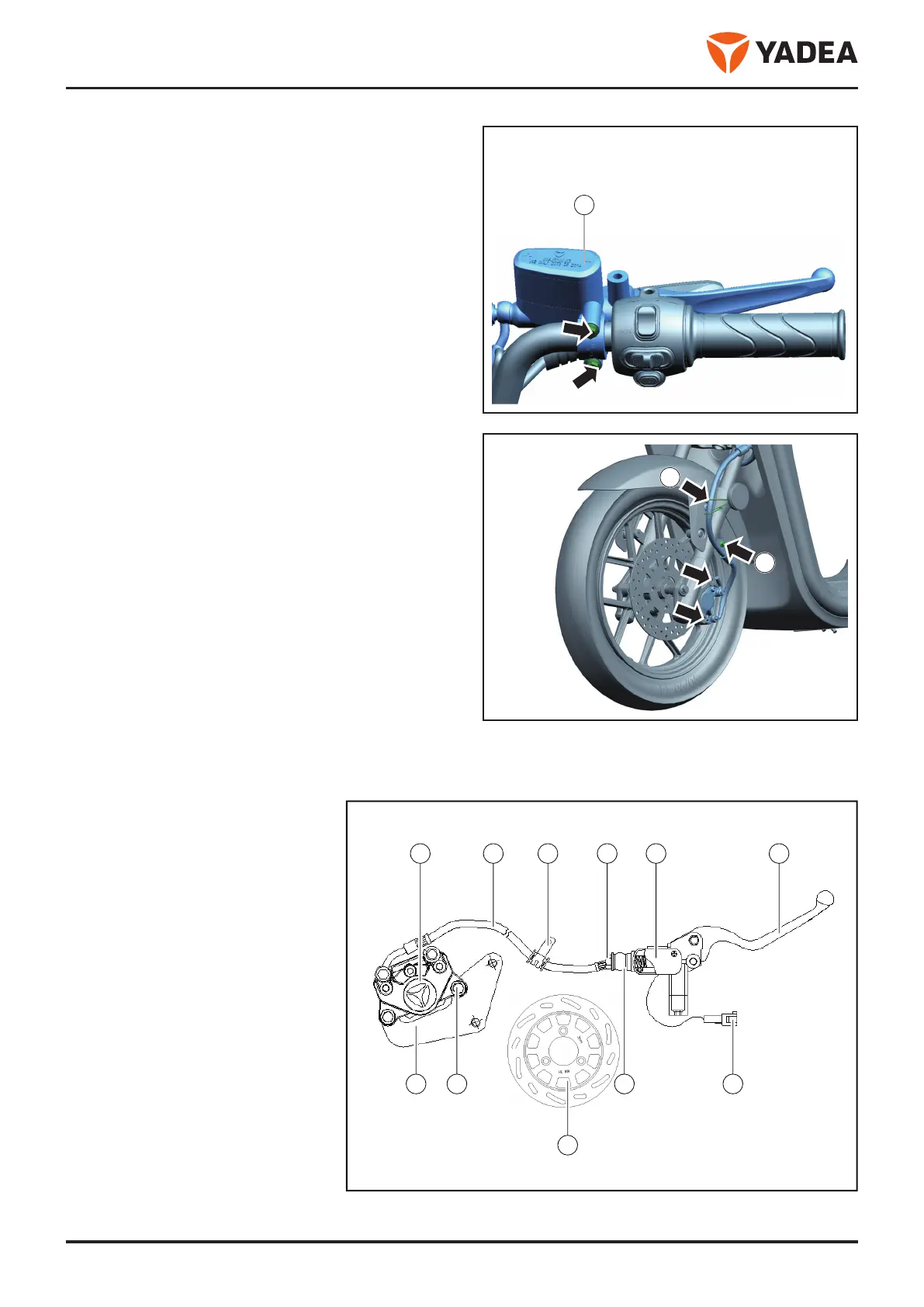

Disassembly the brake lever fixing bolt - arrow - .
●
Disassembly the front brake handle - 1 -.
●
Disassembly the front brake tubing fixing bolt -
arrow A.-.
●
Disconnect the card - Arrow B.-.
●
Disassembly the front brake disc brake pump fixing
bolt - arrow - .
●
Disassembly the front brake disc brake pump along
the front brake tubing.
Installation
Installation is carried out in reverse order of disassembly.
7.3.2 Front brake composition
1. Caliper body assembly
2. Tubing assembly
3. Clip
4. Sealing gasket
5. Front brake main pump
assembly
6. Front brake handle
7. Brake power off switch
assembly
8. Tubing bolts
9. Front disc brakes
10. Bolts
11. Calipers connect the
plate
22 21 8
:
9
2 3 4 65 7
1
A
B
