YD-EM279
41
PREMIUM E-MOBILITY
3.3.6 Disassembly and installation the rear turn signals lamp
3.3.6.1 Overview
When an electric vehicle needs to be steered, the central control can make the turn signal emit a yellow
flashing signal, reminding others that the car is about to turn.
3.3.6.2 Service tools
●
Cross screwdriver
●
Open wrench
3.3.6.3 Disassembly and installation
Disassembly
●

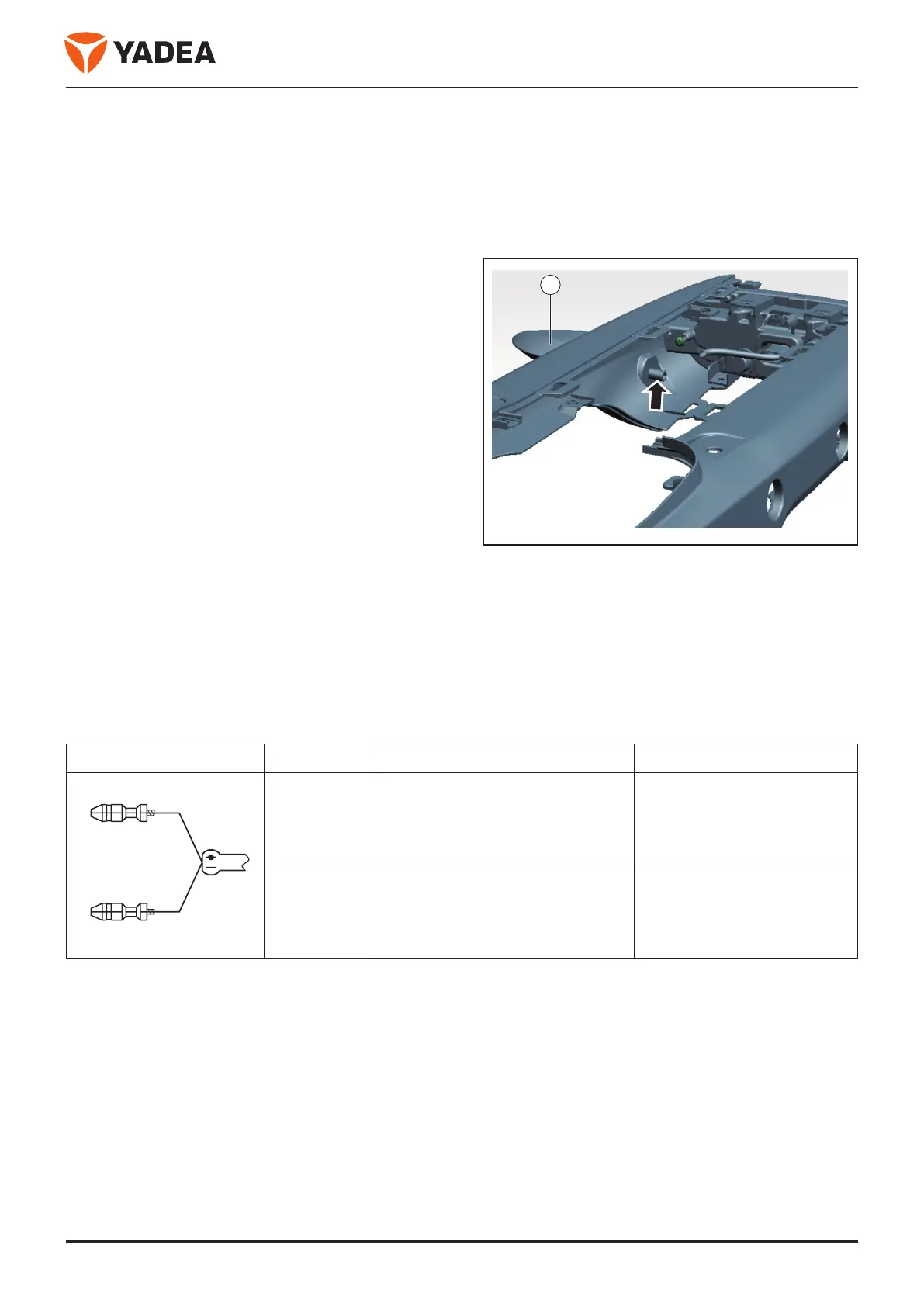

Park the vehicle on a horizontal road surface to
support the main bracket.
●
Close the key and pull it out.
●
Open the seat cushion and turn off the air switch.
●
Disassembly the front wall. → page 51
●
Disconnect the cable tie - Arrow A -.
●
Disconnect the cable tie - Arrow B -.
●
Take off the protective sleeve.
●
Disassembly the nut, Disassembly the turn signal -
1 -.
Installation
Installation is carried out in reverse order of disassembly.
3.3.6.4 Connector interface definition
Connector No. Interface definition Color
1
2
1 Cathode Left (orange) Right (blue)
2 Negative electrode Black
1
