5.1.16 Disassembly and installation of shelf baseplates
5.1.16.1 Service tools
●
Sleeve 10mm
5.1.16.2 Disassembly and installation
Disassembly
●
Park the vehicle on a horizontal road surface to
support the main bracket.
●

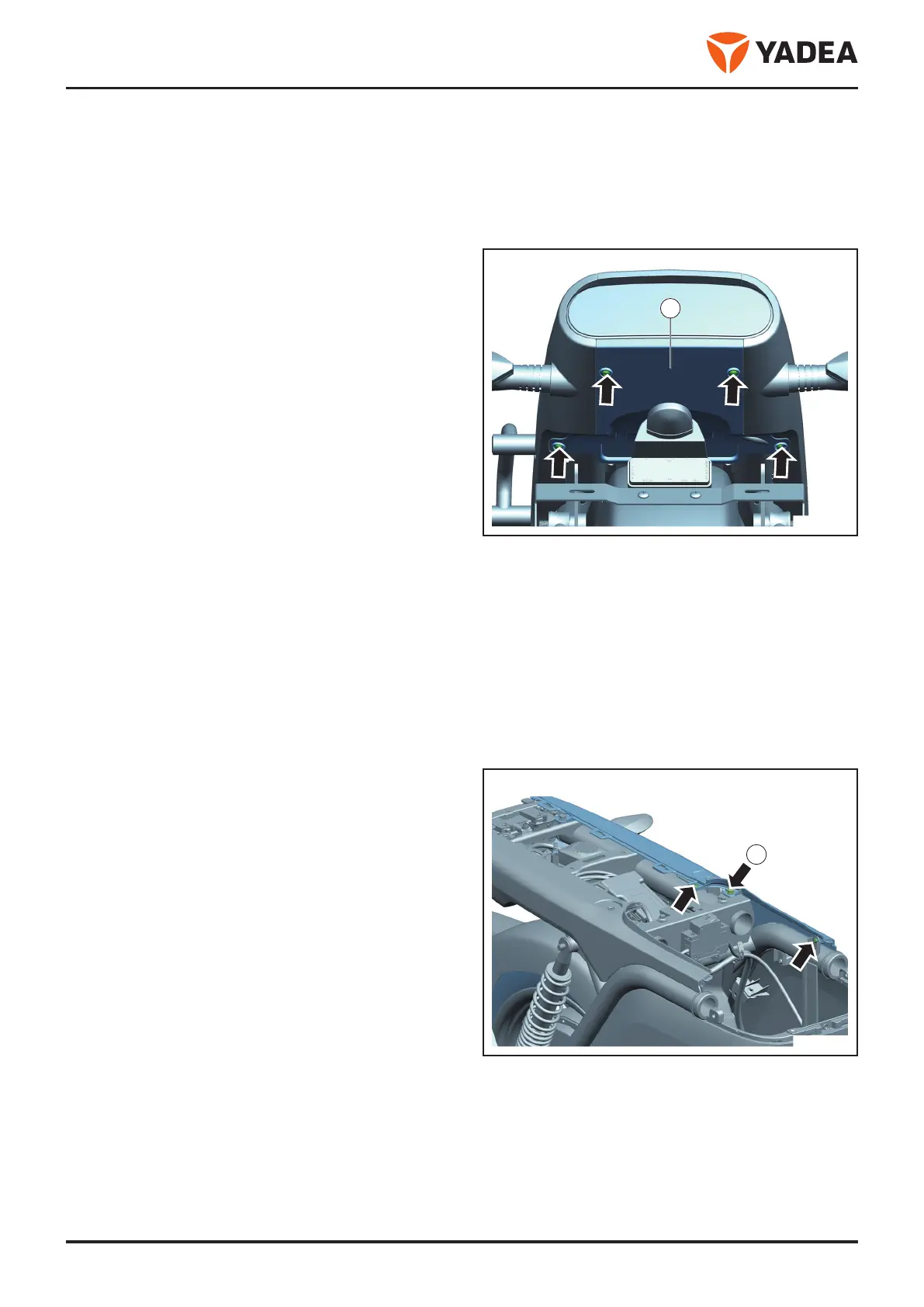

Disassembly screws – arrows -.
●
Disassembly the shelf baseplate – 1 - .
Installation
Installation is carried out in reverse order of disassembly.
5.1.17 Disassembly and installation of shelf side panels
5.1.17.1 Service tools
●
Sleeve 10mm
5.1.17.2 Disassembly and installation
Disassembly
●
Park the vehicle on a horizontal road surface to
support the main bracket.
●
Close the key and pull it out.
●
Open the seat cushion and turn off the air switch.
●
Open the rear armrest.
●
Disassembly the shelf cover. → Page 59
●
Disassembly the shelf baseplate.
●
Disassembly screws – arrows -.
●
Disassembly bolt – arrow A -.
