GENERAL CHASSIS
4-1
EAS21830
GENERAL CHASSIS

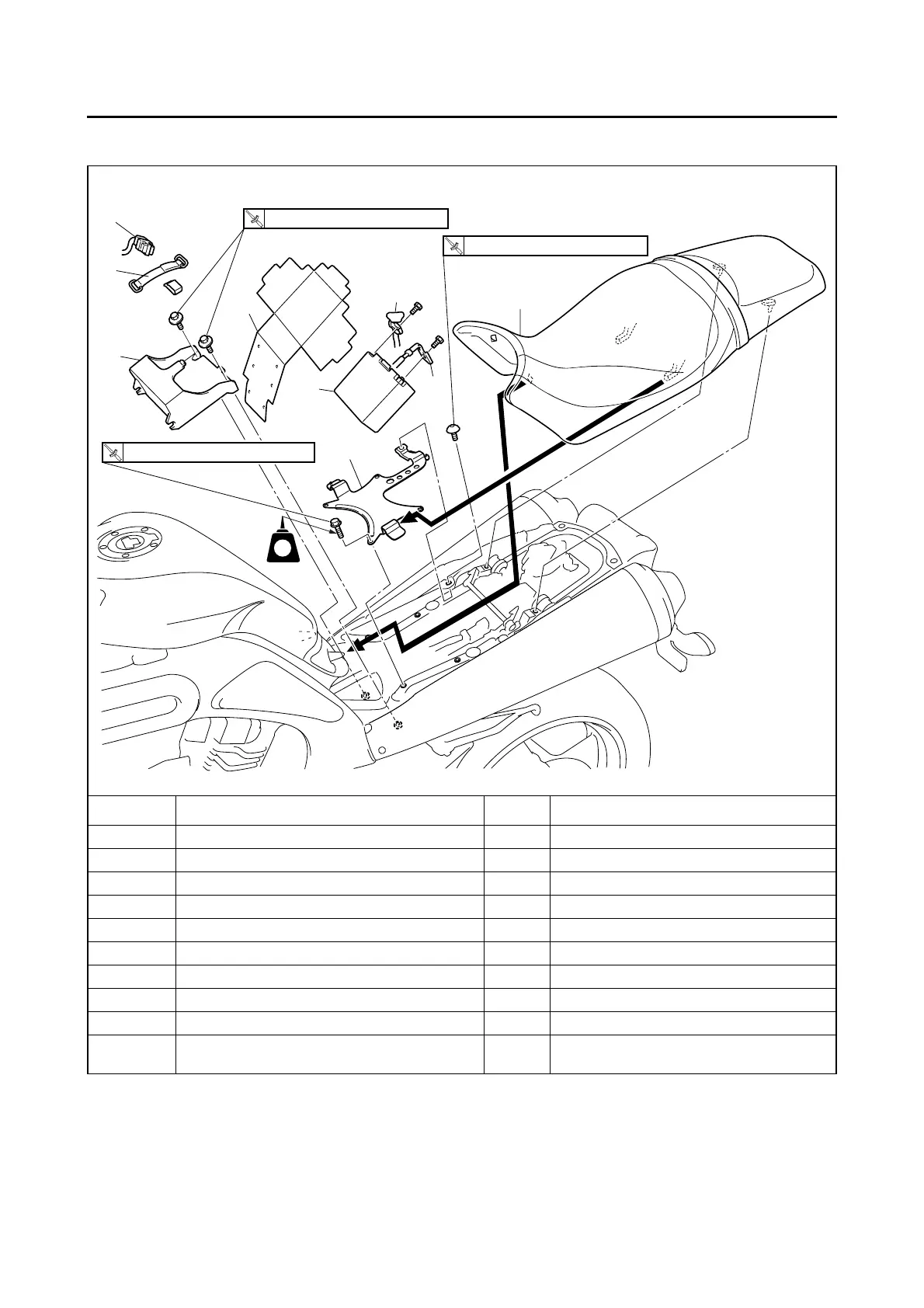

Removing the seat and battery
Order Job/Parts to remove Q’ty Remarks
1 Seat 1
2 Lead holder 1
3 Negative battery lead 1 Disconnect.
4 Positive battery lead 1 Disconnect.
5 Main fuse 1
6 Battery band 1
7Battery 1
8 Battery seat 1
9 Battery box 1
For installation, reverse the removal
procedure.
(4)
5
7
8
4
3
1
6
9
2
T
R
.
.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
T
R
.
.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
LT
