CYLINDERS AND PISTONS
5-44
3. Measure:
• Piston ring end gap
Out of specification → Replace the piston
ring.
NOTE:
The oil ring expander spacer’s end gap cannot
be measured. If the oil ring rail’s gap is exces-
sive, replace all three piston rings.
EAS24440

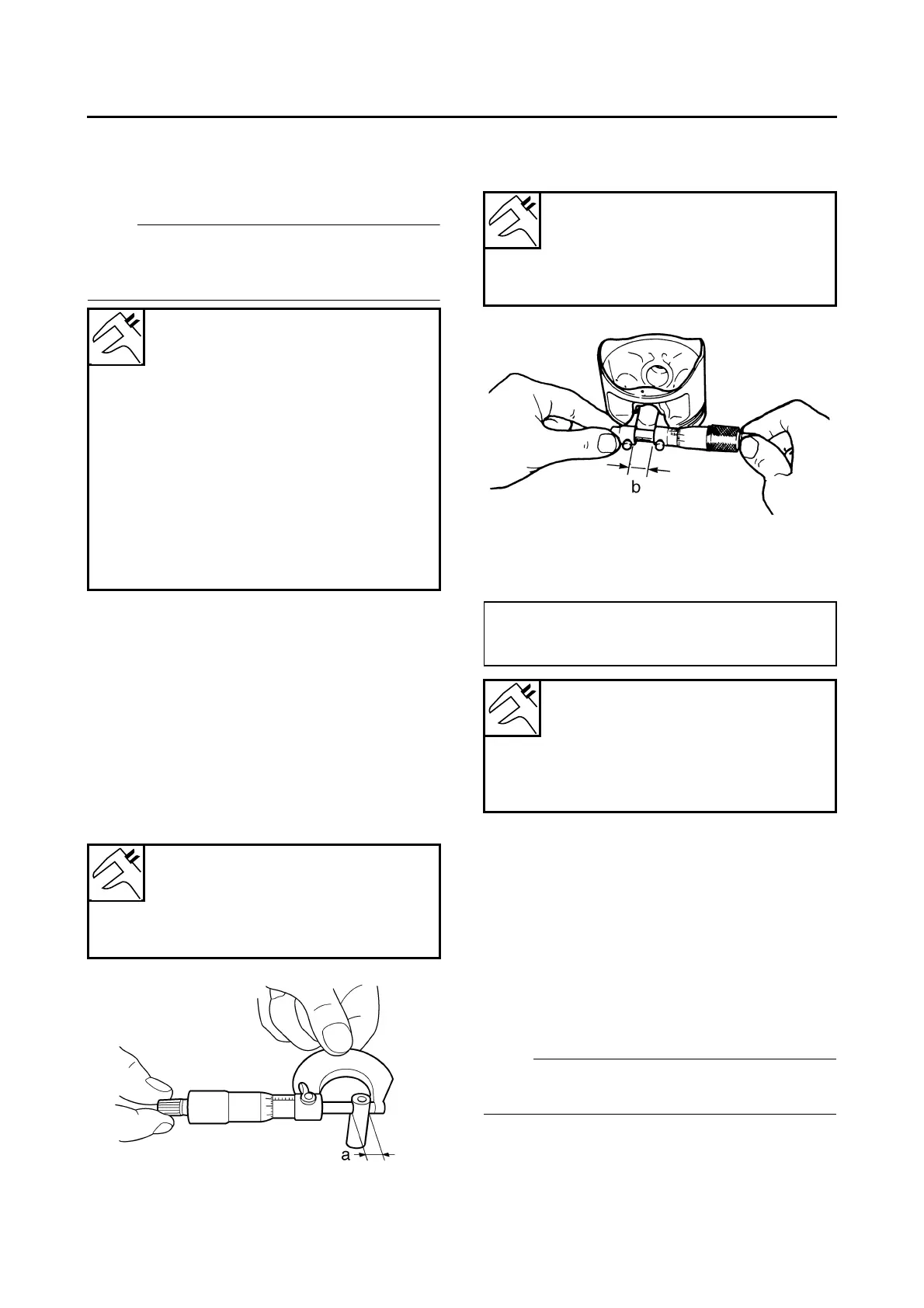

CHECKING THE PISTON PINS
The following procedure applies to all of the pis-
ton pins.
1. Check:
• Piston pin
Blue discoloration/grooves → Replace the
piston pin and then check the lubrication sys-
tem.
2. Measure:
• Piston pin outside diameter “a”
Out of specification → Replace the piston pin.
3. Measure:
• Piston pin bore diameter “b”
Out of specification → Replace the piston.
4. Calculate:
• Piston-pin-to-piston-pin-bore clearance
Out of specification → Replace the piston pin
and piston as a set.
EAS24460
INSTALLING THE PISTONS AND
CYLINDERS
The following procedure applies to all of the pis-
tons and cylinders.
1. Install:
• Top ring “1”
• 2nd ring “2”
• Lower oil ring rail “3”
• Upper oil ring rail “4”
• Oil ring expander “5”
NOTE:
Be sure to install the piston rings so that the
manufacturer’s marks or numbers face up.
Piston ring
Top ring
End gap (installed)
0.30–0.50 mm (0.01–0.02 in)
Limit
0.70 mm (0.0276 in)
2nd ring
End gap (installed)
0.30–0.45 mm (0.01–0.02 in)
Limit
0.80 mm (0.0315 in)
Oil ring
End gap (installed)
0.20–0.70 mm (0.01–0.03 in)
Piston pin outside diameter
21.991–22.000 mm (0.8658–
0.8661 in)
Limit
21.971 mm (0.8650 in)
Piston pin bore inside diameter
22.004–22.015 mm (0.8663–
0.8667 in)
Limit
22.045 mm (0.8679 in)
• Piston-pin-to-piston-pin-bore clearance =
Piston pin bore diameter “b” -
Piston pin outside diameter “a”
Piston-pin-to-piston-pin-bore
clearance
0.004–0.024 mm (0.00016–
0.00094 in)
Limit
0.074 mm (0.00291 in)

Yamaha MT-01 T 2005 Specifications

General

Year	2005
Manufacturer	Yamaha
Model	MT-01 T
Category	Naked bike
Displacement	1670 cc
Bore x Stroke	97.0 x 113.0 mm
Compression Ratio	8.36:1
Fuel System	Fuel injection
Ignition	TCI
Lubrication	Wet sump
Clutch	Wet, multiple-disc
Transmission	5-speed
Final Drive	Chain
Frame	Aluminum die-cast
Front Suspension	Telescopic fork
Rear Suspension	Swingarm
Front Brakes	Double disc
Rear Brakes	Single disc
Rear Tire	190/50-ZR17
Overall Length	2185 mm
Overall Height	1105 mm
Seat Height	825 mm
Wheelbase	1525 mm
Ground Clearance	140 mm
Dry Weight	240 kg
Maximum Torque	150.3 Nm (15.3 kgf-m) @ 3750 rpm
Overall Width	800 mm
Fuel Capacity	15.0 litres
Engine Type	V-twin, four-stroke
Front Tire	120/70-ZR17
