Yamaha MT-01 T 2005 User Manual

ENGINE
3-18
4. Install:
• Seat
Refer to “GENERAL CHASSIS” on page 4-1.
EAS21100

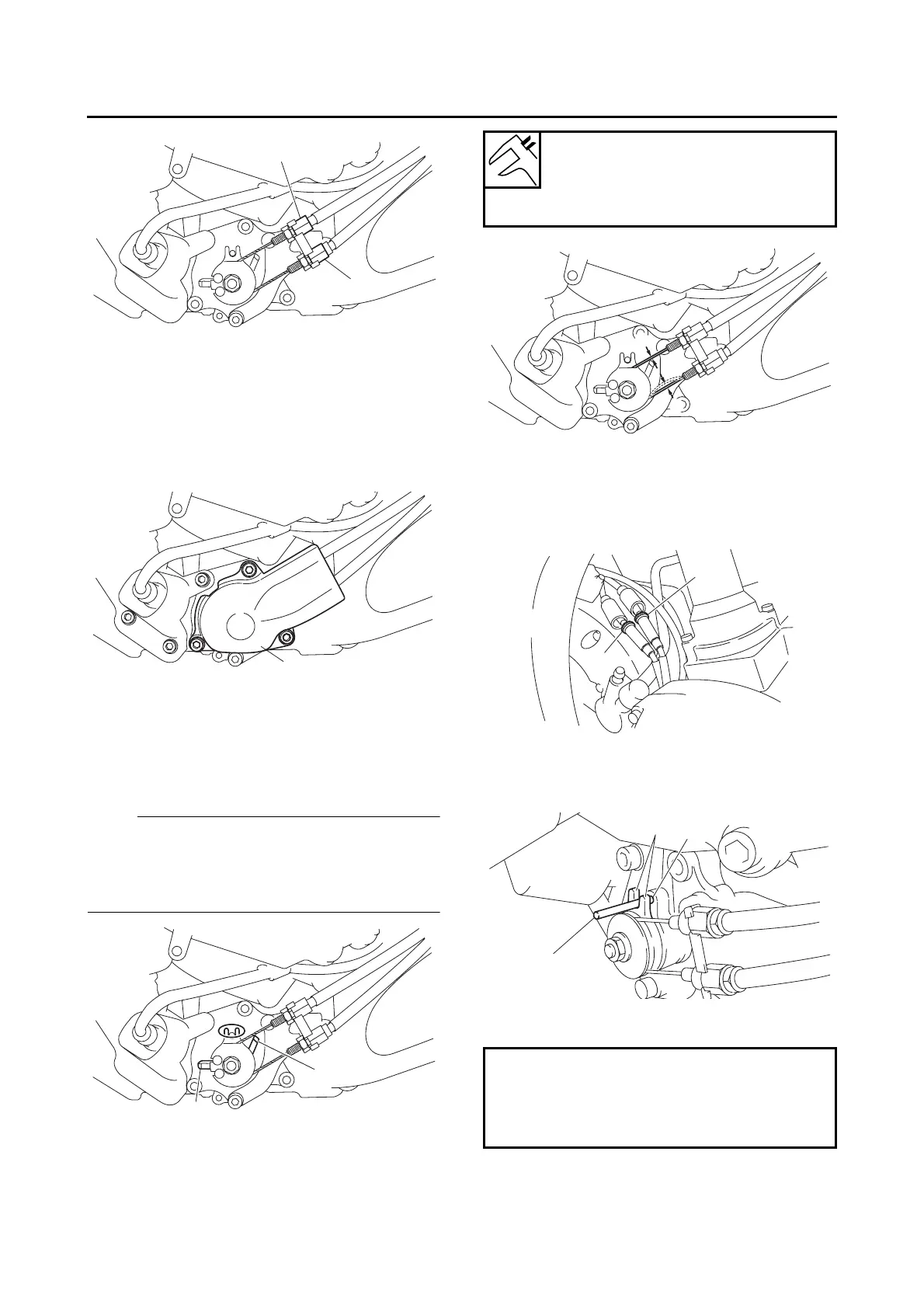

ADJUSTING THE EXUP CABLES
1. Remove:
• EXUP valve pulley cover “1”
2. Check:
• EXUP system operation
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Turn the main switch to “ON”.
b. Check that the EXUP valve operates proper-
ly.
NOTE:
Check that the projections “a” on the EXUP
valve pulley contact the stopper “b” (fully-open
position) and the stopper “c” (fully-closed posi-
tion).
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
3. Check:
• EXUP cable free play (at the EXUP valve pul-
ley) “a”
4. Adjust:
• EXUP cable free play
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Slide back the rubber cover.
b. Loosen both locknuts “1”.
c. Insert a 3.5 mm (0.14 in) pin “2” through the
projections “a” in the EXUP valve pulley and
into the hole “b” in the EXUP valve cover.
d. Turn both adjusting nuts “3” in or out until the
specification.
15
14
1
b
c
a
EXUP cable free play (at the
EXUP valve pulley)
a: 3 mm (0.12 in) or less
b: 0 mm
Turn in “c” →
Free play is increased.
Turn out “d” →
Free play is decreased.
a
b
b
a
1
1
2
a
b

Yamaha MT-01 T 2005 Specifications

General

Year	2005
Manufacturer	Yamaha
Model	MT-01 T
Category	Naked bike
Displacement	1670 cc
Bore x Stroke	97.0 x 113.0 mm
Compression Ratio	8.36:1
Fuel System	Fuel injection
Ignition	TCI
Lubrication	Wet sump
Clutch	Wet, multiple-disc
Transmission	5-speed
Final Drive	Chain
Frame	Aluminum die-cast
Front Suspension	Telescopic fork
Rear Suspension	Swingarm
Front Brakes	Double disc
Rear Brakes	Single disc
Rear Tire	190/50-ZR17
Overall Length	2185 mm
Overall Height	1105 mm
Seat Height	825 mm
Wheelbase	1525 mm
Ground Clearance	140 mm
Dry Weight	240 kg
Maximum Torque	150.3 Nm (15.3 kgf-m) @ 3750 rpm
Overall Width	800 mm
Fuel Capacity	15.0 litres
Engine Type	V-twin, four-stroke
Front Tire	120/70-ZR17
