ELECTRIC STARTER

5-73

7. Check:

• Gear teeth

Damage/wear → Replace the gear.

8. Check:

• Bearing

• Oil seal

Damage/wear → Replace the defective

part(s).

EAS24800

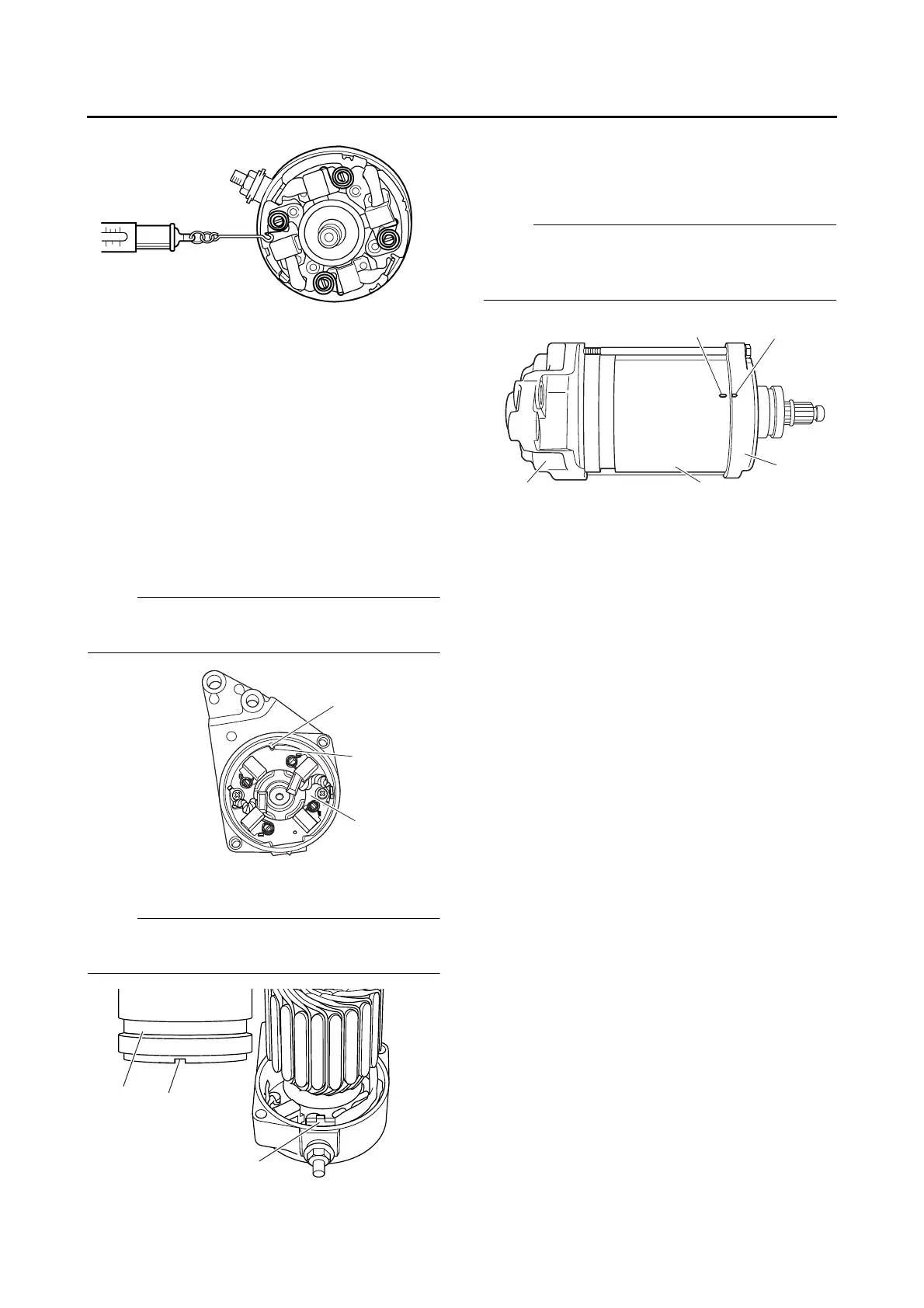

ASSEMBLING THE STARTER MOTOR

1. Install:

• Brush seat “1”

NOTE:

Align the slot “a” on the brush seat with the tab

“b” in the starter motor front cover.

2. Install:

• Starter motor yoke “1”

NOTE:

Align the tab “a” on the brush holder with the slot

“b” in the starter motor yoke.

3. Install:

• Starter motor yoke “1”

• Starter motor front cover “2”

• Starter motor rear cover “3”

NOTE:

Align the match mark “a” on the starter motor

yoke with the match mark “b” on the starter mo-

tor rear cover.
