Yamaha MT-01 T 2005 User Manual

TRANSMISSION
5-96
• Transmission gear dogs
Cracks/damage/rounded edges → Replace
the defective gear(s).
4. Check:
• Transmission gear engagement
(each pinion gear to its respective wheel
gear)
Incorrect → Reassemble the transmission
axle assemblies.
5. Check:
• Transmission gear movement
Rough movement → Replace the defective
part(s).
6. Check:
• Circlips
Bends/damage/looseness → Replace.
ET5YU1024

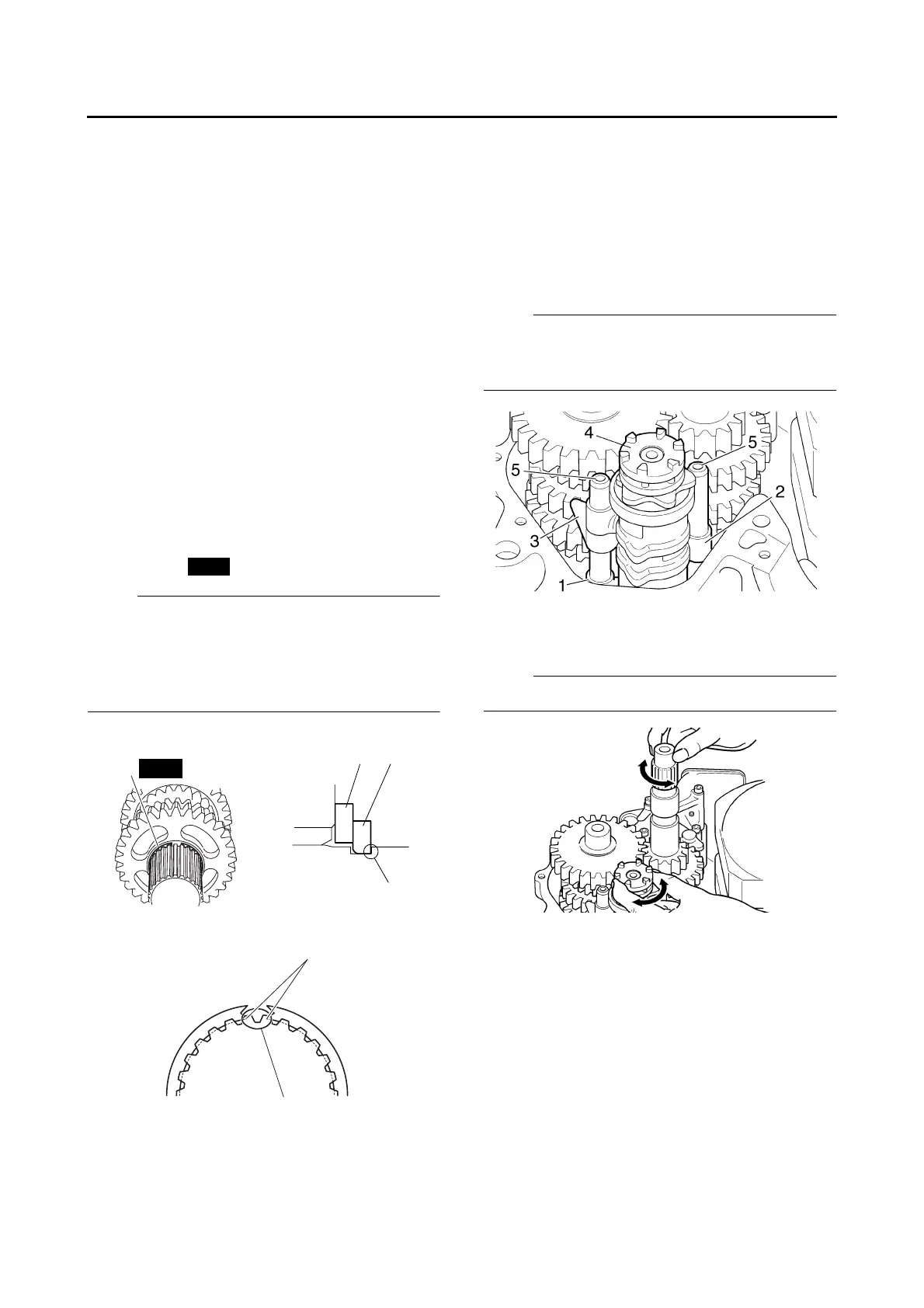

ASSEMBLING THE MAIN AXLE AND DRIVE
AXLE
1. Install:
• Washer “1”
• Circlip “2”
NOTE:
• Be sure the circlip sharp-edged corner “a” is
positioned opposite side to the toothed washer
and gear.
• Install the circlip so that both ends “b” rest on
the sides of a spline “c” with both axles aligned.
EAS26320
INSTALLING THE SHIFT FORKS AND SHIFT
DRUM ASSEMBLY
1. Install:
• Shift fork-R “1”
• Shift fork-C “2”
• Shift fork-L “3”
• Shift drum assembly “4”
• Shift fork guide bars “5”
NOTE:
The embossed marks on the shift forks should
face towards the right side of the engine and be
in the following sequence: “R”, “C”, “L”.
2. Check:
• Transmission
Rough movement → Repair.
NOTE:
Oil each gear, shaft, and bearing thoroughly.
New
1
2
2
New
a
b
c

Yamaha MT-01 T 2005 Specifications

General

Year	2005
Manufacturer	Yamaha
Model	MT-01 T
Category	Naked bike
Displacement	1670 cc
Bore x Stroke	97.0 x 113.0 mm
Compression Ratio	8.36:1
Fuel System	Fuel injection
Ignition	TCI
Lubrication	Wet sump
Clutch	Wet, multiple-disc
Transmission	5-speed
Final Drive	Chain
Frame	Aluminum die-cast
Front Suspension	Telescopic fork
Rear Suspension	Swingarm
Front Brakes	Double disc
Rear Brakes	Single disc
Rear Tire	190/50-ZR17
Overall Length	2185 mm
Overall Height	1105 mm
Seat Height	825 mm
Wheelbase	1525 mm
Ground Clearance	140 mm
Dry Weight	240 kg
Maximum Torque	150.3 Nm (15.3 kgf-m) @ 3750 rpm
Overall Width	800 mm
Fuel Capacity	15.0 litres
Engine Type	V-twin, four-stroke
Front Tire	120/70-ZR17
