Yamaha MT-01 T 2005 User Manual

CLUTCH
5-57
EAS25190
CHECKING THE CLUTCH PUSH RODS
1. Check:
• O-ring
• Short clutch push rod
• Long clutch push rod
• Ball
Cracks/damage/wear → Replace the defec-
tive part(s).
2. Measure:
• Long clutch push rod bending limit
Out of specification → Replace the defective
part(s).
EAS25200
CHECKING THE PRIMARY DRIVE GEAR
1. Check:
• Primary drive gear
Damage/wear → Replace the primary drive
and primary driven gears as a set.
Excessive noise during operation → Replace
the primary drive and primary driven gears as
a set.
EAS25210

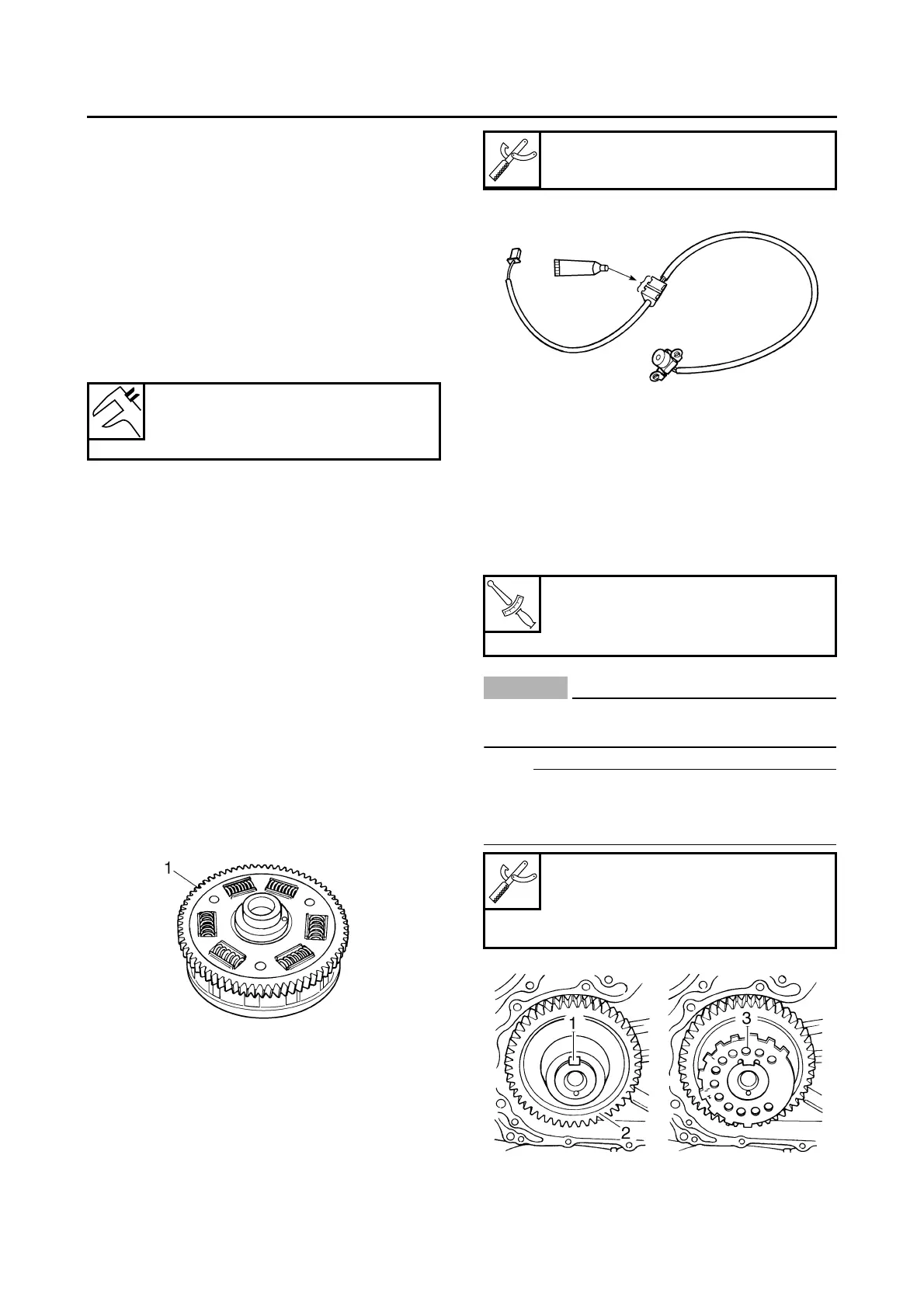

CHECKING THE PRIMARY DRIVEN GEAR
1. Check:
• Primary driven gear “1”
Damage/wear → Replace the primary drive
and primary driven gears as a set.
Excessive noise during operation → Replace
the primary drive and primary driven gears as
a set.
EAS24540
INSTALLING THE CRANKSHAFT POSITION
SENSOR
1. Apply:
• Sealant
(onto the crankshaft position sensor lead
grommet)
EAS25230
INSTALLING THE PRIMARY DRIVE GEAR
1. Install:
• Straight key “1”
• Primary drive gear “2”
• Crankshaft position sensor rotor “3”
• Spacer “4”
• Primary drive gear bolt “5”
CAUTION:
EC5YU1014
The timing marks on the crankshaft position
sensor rotor must face outside.
NOTE:
While holding the generator rotor “6” with the
sheave holder “7”, tighten the primary drive gear
bolt.
Long clutch push rod bending
limit
0.15 mm (0.0059 in)
Yamaha bond No. 1215
90890-85505
T
R
.
.
Primary drive gear bolt
100 Nm (10.0 m·kg, 72 ft·lb)
LOCTITE
®
Sheave holder
90890-01701
Primary clutch holder
YS-01880-A

Yamaha MT-01 T 2005 Specifications

General

Year	2005
Manufacturer	Yamaha
Model	MT-01 T
Category	Naked bike
Displacement	1670 cc
Bore x Stroke	97.0 x 113.0 mm
Compression Ratio	8.36:1
Fuel System	Fuel injection
Ignition	TCI
Lubrication	Wet sump
Clutch	Wet, multiple-disc
Transmission	5-speed
Final Drive	Chain
Frame	Aluminum die-cast
Front Suspension	Telescopic fork
Rear Suspension	Swingarm
Front Brakes	Double disc
Rear Brakes	Single disc
Rear Tire	190/50-ZR17
Overall Length	2185 mm
Overall Height	1105 mm
Seat Height	825 mm
Wheelbase	1525 mm
Ground Clearance	140 mm
Dry Weight	240 kg
Maximum Torque	150.3 Nm (15.3 kgf-m) @ 3750 rpm
Overall Width	800 mm
Fuel Capacity	15.0 litres
Engine Type	V-twin, four-stroke
Front Tire	120/70-ZR17
