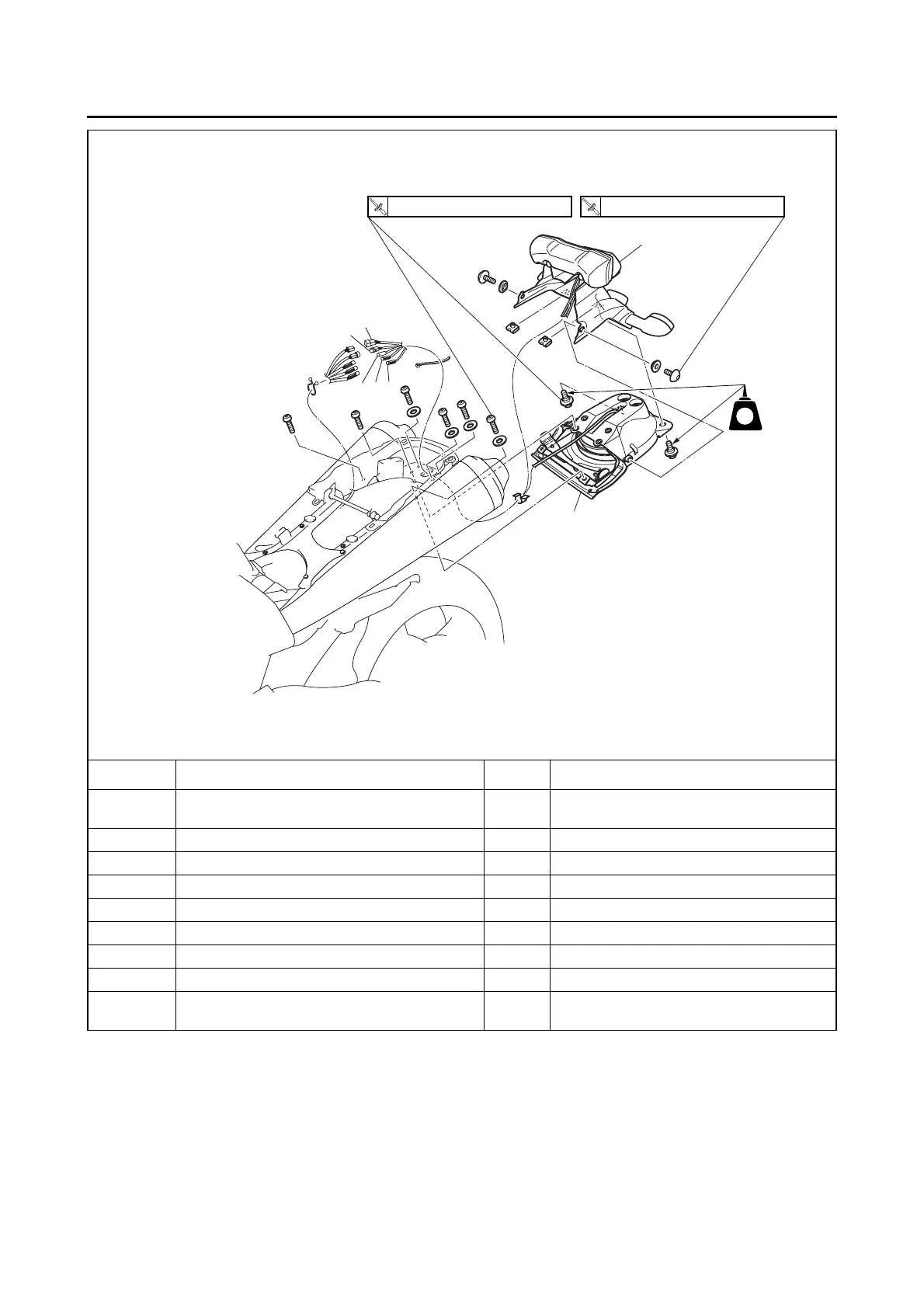

Removing the tail/brake light assembly
Order Job/Parts to remove Q’ty Remarks
Seat
Refer to “GENERAL CHASSIS” on page
4-1.
1 Muffler cooling fan motor coupler 1 Disconnect.
2 Tail/brake light coupler 1 Disconnect.
3 Rear right turn signal light coupler 1 Disconnect.
4 Rear left turn signal light coupler 1 Disconnect.
5 License plate light coupler 1 Disconnect.
6 Tail/brake light assembly 1
7 Muffler cooling fan motor assembly 1
For installation, reverse the removal
procedure.
