CYLINDER HEADS
5-31
EAS24110

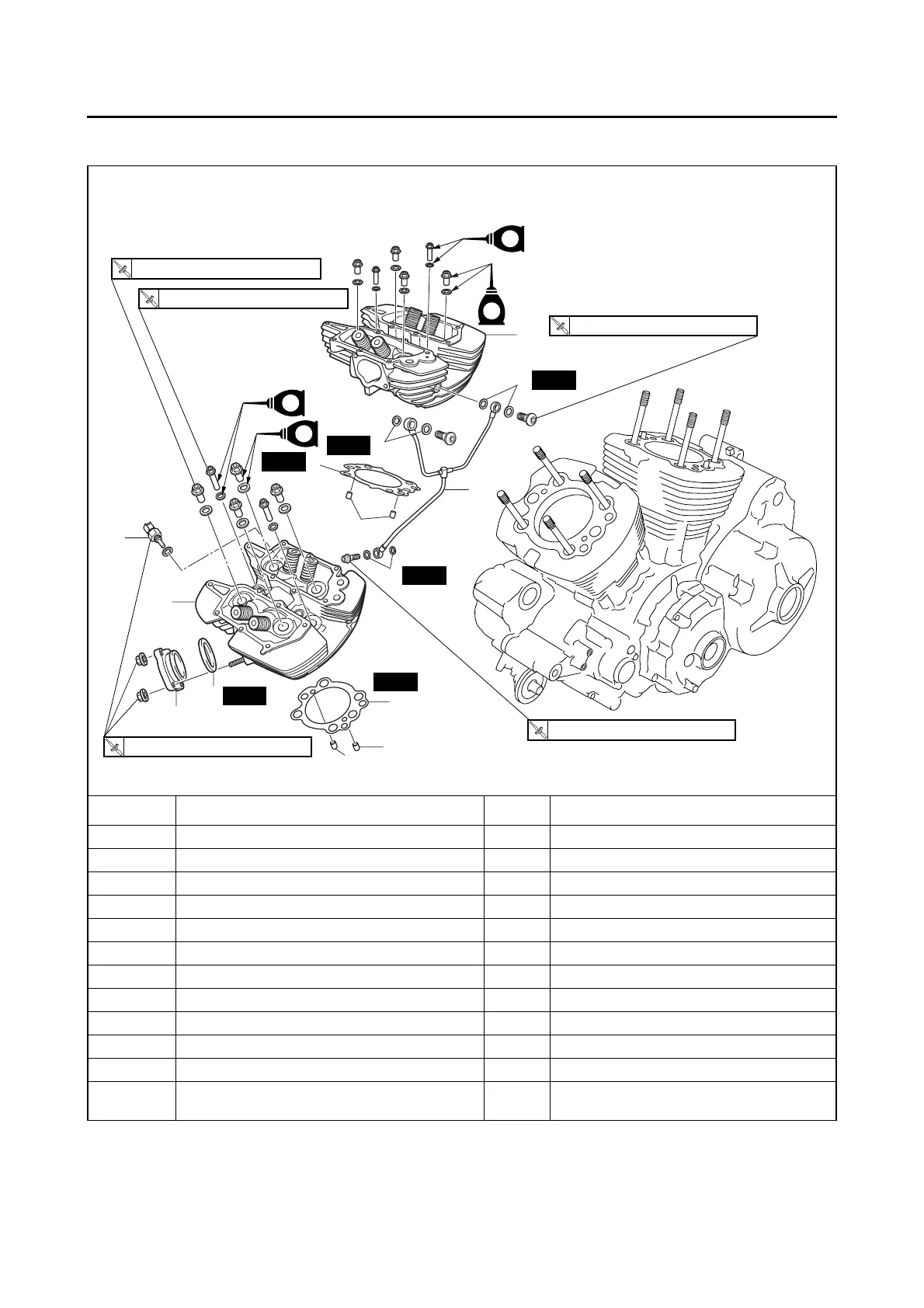

CYLINDER HEADS
Removing the cylinder heads
Order Job/Parts to remove Q’ty Remarks
Cylinder head covers/Rocker arms Refer to “CAMSHAFTS” on page 5-16.
1 Front exhaust pipe joint 1
2 Front exhaust pipe joint gasket 1
3 Oil pipe 1 1 From crankcase to cylinder heads.
4 Copper washer 4
5 Copper washer 2
6 Engine temperature sensor 1
7 Rear cylinder head 1
8 Front cylinder head 1
9 Cylinder head gasket 2
10 Dowel pin 4
For installation, reverse the removal
procedure.
E
T
R
.
.
21 Nm (2.1 m
•
kg, 15 ft
•
Ib)
T
R
.
.
20 Nm (2.0 m
•
kg, 14 ft
•
Ib)
T
R
.
.
18 Nm (1.8 m
•
kg, 13 ft
•
Ib)
T
R
.
.
45 Nm (4.5 m
•
kg, 32 ft
•
Ib)
T
R
.
.
39 Nm (3.9 m
•
kg, 28 ft
•
Ib)
7
4
4
9
10
3
5
9
10
10
2
8
6
1
E
New
New
New
New
New
New
E
E

Yamaha MT-01 T 2005 Specifications

General

Year	2005
Manufacturer	Yamaha
Model	MT-01 T
Category	Naked bike
Displacement	1670 cc
Bore x Stroke	97.0 x 113.0 mm
Compression Ratio	8.36:1
Fuel System	Fuel injection
Ignition	TCI
Lubrication	Wet sump
Clutch	Wet, multiple-disc
Transmission	5-speed
Final Drive	Chain
Frame	Aluminum die-cast
Front Suspension	Telescopic fork
Rear Suspension	Swingarm
Front Brakes	Double disc
Rear Brakes	Single disc
Rear Tire	190/50-ZR17
Overall Length	2185 mm
Overall Height	1105 mm
Seat Height	825 mm
Wheelbase	1525 mm
Ground Clearance	140 mm
Dry Weight	240 kg
Maximum Torque	150.3 Nm (15.3 kgf-m) @ 3750 rpm
Overall Width	800 mm
Fuel Capacity	15.0 litres
Engine Type	V-twin, four-stroke
Front Tire	120/70-ZR17
