CLUTCH
5-58
EAS25260

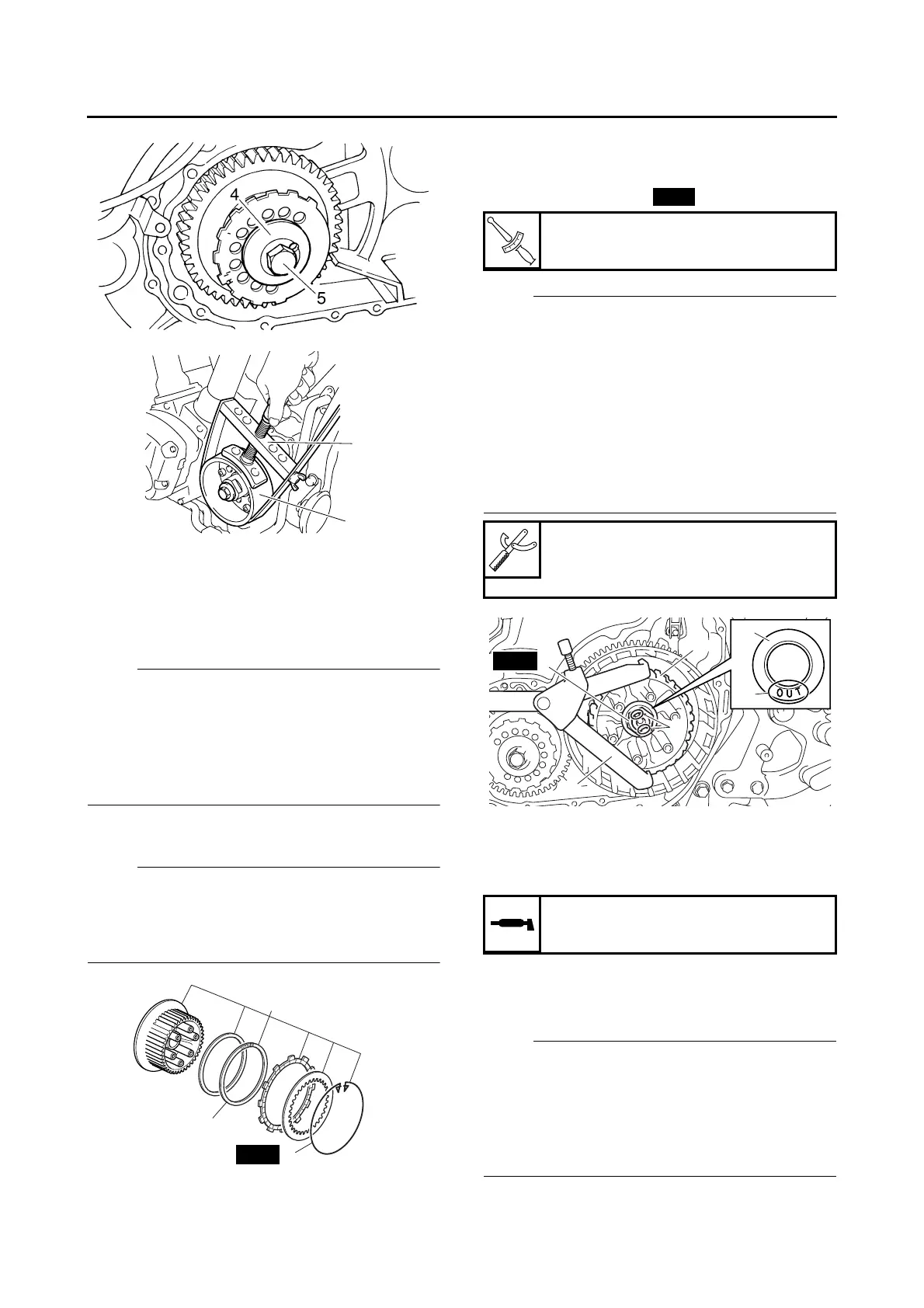

INSTALLING THE CLUTCH
1. Install:
• Clutch housing
• Thrust washer
NOTE:
• Lubricate the clutch housing bearings with en-
gine oil.
• Make sure that the primary driven gear teeth
and primary drive gear teeth mesh correctly.
• Make sure that the oil pump drive gear teeth
and oil pump driven gear teeth mesh correctly.
2. Install:
• Clutch boss assembly “1”
NOTE:
• If the wire circlip “2” has been removed, care-
fully install a new one.
• Install the clutch damper spring “3” with the
“OUTSIDE” mark facing out.
3. Install:
• Clutch boss “1”
• Conical spring washer “2”
• Clutch boss nut “3”
NOTE:
• Lubricate the clutch boss nut threads and con-
ical spring washer mating surfaces with engine
oil.
• Install the washer “2” with the “OUT” mark “a”
facing out.
• While holding the clutch boss with the univer-
sal clutch holder “4”, tighten the clutch boss
nut.
• Stake the clutch boss nut “3” at a cutout “b” in
the main axle.
4. Lubricate:
• Friction plates
• Clutch plates
(with the recommended lubricant)
5. Install:
• Friction plates
• Clutch plates
NOTE:
• First, install a friction plate and then alternate
between a clutch plate and a friction plate.
• Install the last friction plate “1” offset from the
other friction plates “2”, making sure to align a
projection on the friction plate with the punch
mark “a” on the clutch housing.
6
7
1
3
2
New
T
R
.
.
Clutch boss nut
125 Nm (12.5 m·kg, 90 ft·lb)
Universal clutch holder
90890-04086
YM-91042
Recommended lubricant
Engine oil
New
4
1
3
2
a
b
New

Yamaha MT-01 T 2005 Specifications

General

Year	2005
Manufacturer	Yamaha
Model	MT-01 T
Category	Naked bike
Displacement	1670 cc
Bore x Stroke	97.0 x 113.0 mm
Compression Ratio	8.36:1
Fuel System	Fuel injection
Ignition	TCI
Lubrication	Wet sump
Clutch	Wet, multiple-disc
Transmission	5-speed
Final Drive	Chain
Frame	Aluminum die-cast
Front Suspension	Telescopic fork
Rear Suspension	Swingarm
Front Brakes	Double disc
Rear Brakes	Single disc
Rear Tire	190/50-ZR17
Overall Length	2185 mm
Overall Height	1105 mm
Seat Height	825 mm
Wheelbase	1525 mm
Ground Clearance	140 mm
Dry Weight	240 kg
Maximum Torque	150.3 Nm (15.3 kgf-m) @ 3750 rpm
Overall Width	800 mm
Fuel Capacity	15.0 litres
Engine Type	V-twin, four-stroke
Front Tire	120/70-ZR17
