CRANKCASE
5-74
EAS25540
CRANKCASE

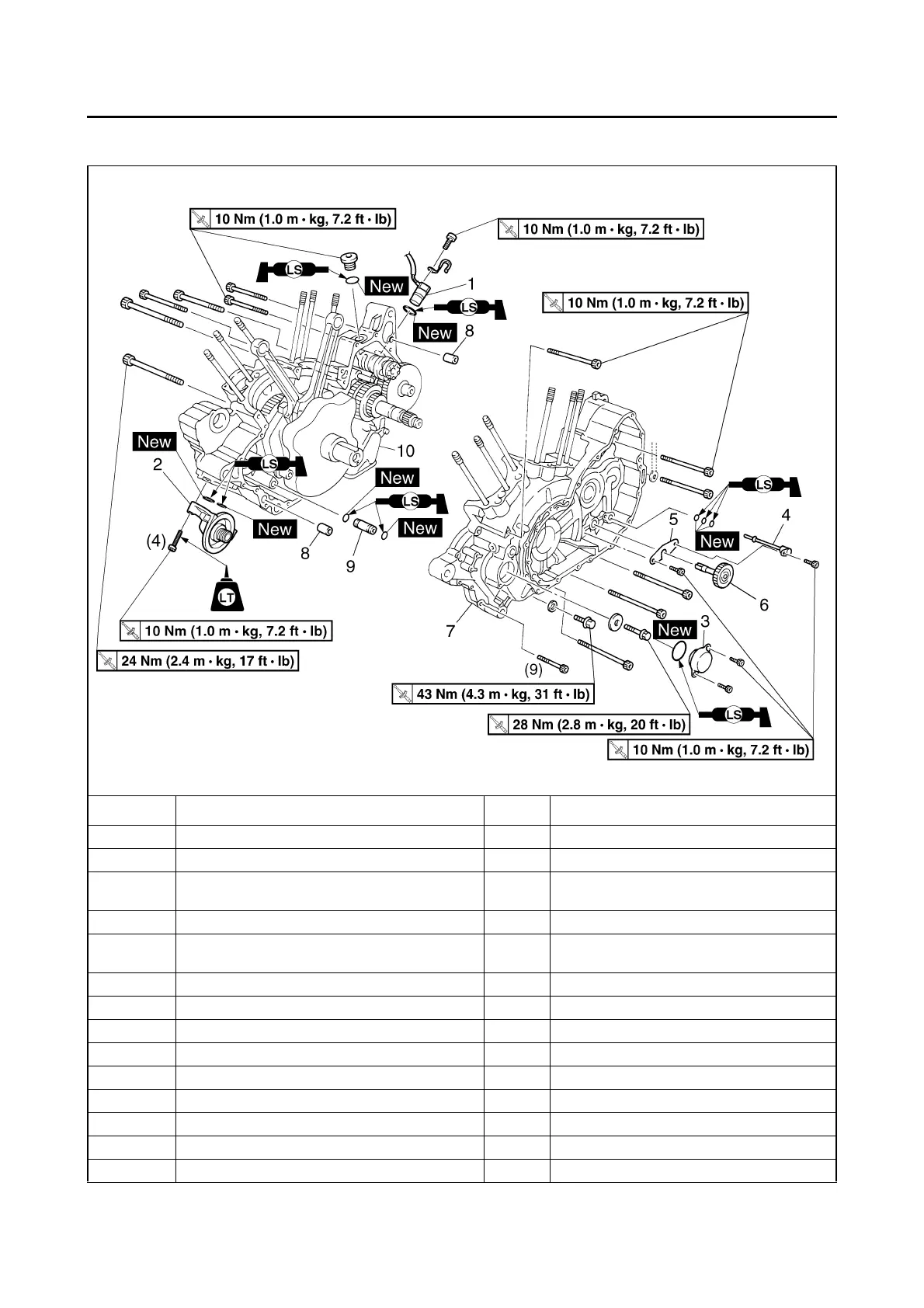

Separating the crankcase
Order Job/Parts to remove Q’ty Remarks
Engine Refer to “ENGINE REMOVAL” on page 5-1.
Camshafts Refer to “CAMSHAFTS” on page 5-16.
Pistons
Refer to “CYLINDERS AND PISTONS” on
page 5-41.
Shift shaft Refer to “SHIFT SHAFT” on page 5-64.
Generator rotor
Refer to “GENERATOR AND STARTER
CLUTCH” on page 5-66.
1 Speed sensor 1
2 Oil filter cartridge bracket 1
3 Generator shaft end cover 1
4 Oil delivery pipe 2 1
5 Oil pump driven gear stopper 1
6 Oil pump driven gear 1
7 Left crankcase 1
8 Dowel pin 2
9 Joint pipe 1
