Yamaha MT-01 T 2005 User Manual

FRONT BRAKE
4-29
2. Check:
• Brake master cylinder kit
Damage/scratches/wear → Replace.
3. Check:
• Brake fluid reservoir
Cracks/damage → Replace.
• Brake fluid reservoir diaphragm
Cracks/damage → Replace.
4. Check:
• Brake hoses
Cracks/damage/wear → Replace.
EAS22520

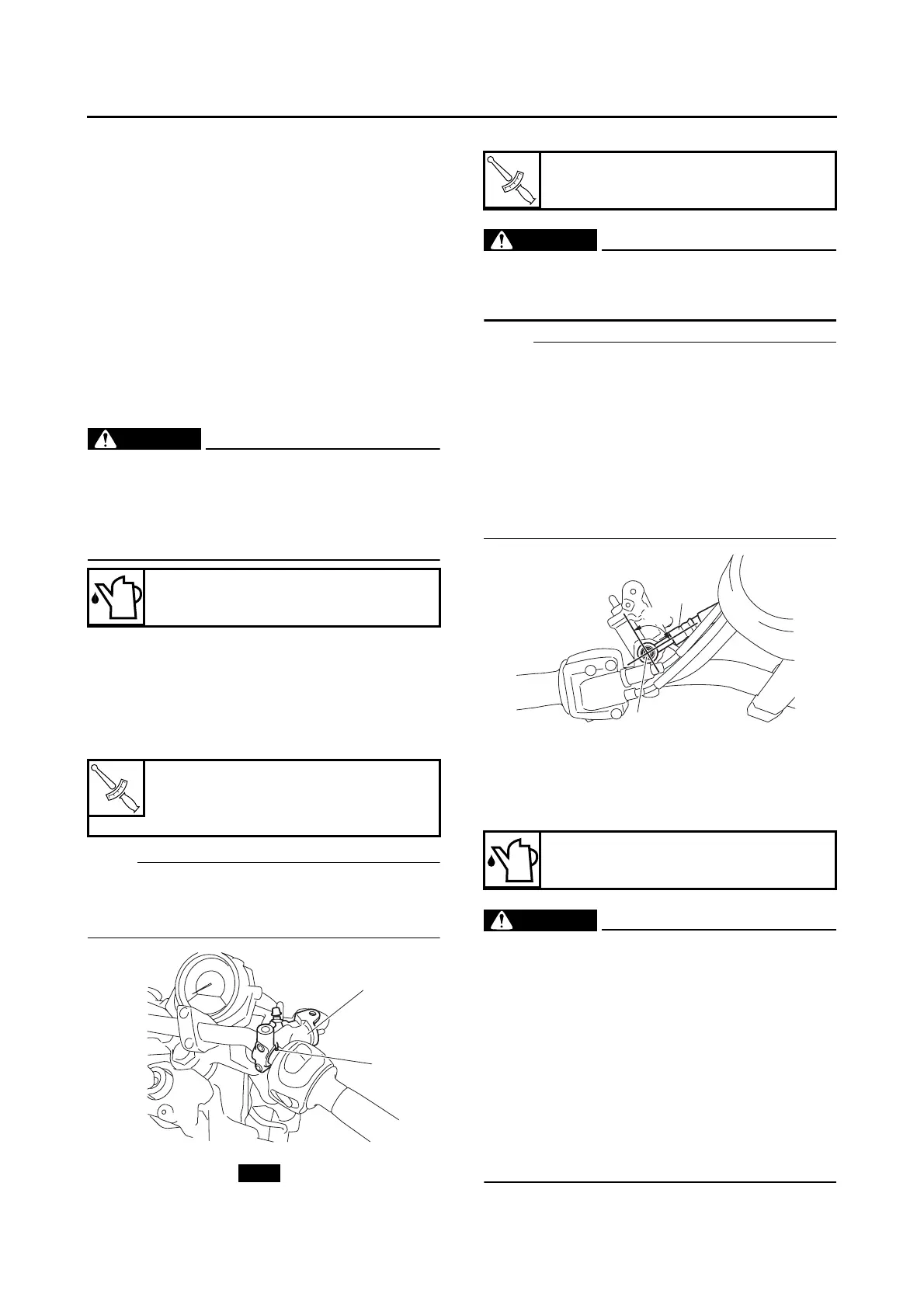

ASSEMBLING THE FRONT BRAKE MASTER
CYLINDER
WARNING
EWA13520
• Before installation, all internal brake com-
ponents should be cleaned and lubricated
with clean or new brake fluid.
• Never use solvents on internal brake com-
ponents.
EAS22540
INSTALLING THE FRONT BRAKE MASTER
CYLINDER
1. Install:
• Front brake master cylinder “1”
• Front brake master cylinder holder
NOTE:
• Align the end of the brake master cylinder hold-
er with the punch mark “a” on the handlebar.
• First, tighten the upper bolt, then the lower bolt.
2. Install:
• Copper washers
• Front brake hose “1”
• Front brake hose union bolt “2”
WARNING
EWA13530
Proper brake hose routing is essential to in-
sure safe vehicle operation. Refer to “CABLE
ROUTING” on page 2-41.
NOTE:
• Install the brake hose at a right angle to the
front brake master cylinder as shown in the il-
lustration.
• While holding the brake hose, tighten the union
bolt.
• Turn the handlebar to the left and right to make
sure the brake hose does not touch other parts
(e.g., wire harness, cables, leads). Correct if
necessary.
3. Fill:
• Brake fluid reservoir
(with the specified amount of the recom-
mended brake fluid)
WARNING
EWA13090
• Use only the designated brake fluid. Other
brake fluids may cause the rubber seals to
deteriorate, causing leakage and poor
brake performance.
• Refill with the same type of brake fluid that
is already in the system. Mixing brake fluids
may result in a harmful chemical reaction,
leading to poor brake performance.
• When refilling, be careful that water does
not enter the brake fluid reservoir. Water
will significantly lower the boiling point of
the brake fluid and could cause vapor lock.
Recommended fluid
DOT 4
T
R
.
.
Front brake master cylinder
holder bolt
10 Nm (1.0 m·kg, 7.2 ft·lb)
1
a
New
T
R
.
.
Front brake hose union bolt
30 Nm (3.0 m·kg, 22 ft·lb)
Recommended fluid
DOT 4
90˚
1
2

Yamaha MT-01 T 2005 Specifications

General

Year	2005
Manufacturer	Yamaha
Model	MT-01 T
Category	Naked bike
Displacement	1670 cc
Bore x Stroke	97.0 x 113.0 mm
Compression Ratio	8.36:1
Fuel System	Fuel injection
Ignition	TCI
Lubrication	Wet sump
Clutch	Wet, multiple-disc
Transmission	5-speed
Final Drive	Chain
Frame	Aluminum die-cast
Front Suspension	Telescopic fork
Rear Suspension	Swingarm
Front Brakes	Double disc
Rear Brakes	Single disc
Rear Tire	190/50-ZR17
Overall Length	2185 mm
Overall Height	1105 mm
Seat Height	825 mm
Wheelbase	1525 mm
Ground Clearance	140 mm
Dry Weight	240 kg
Maximum Torque	150.3 Nm (15.3 kgf-m) @ 3750 rpm
Overall Width	800 mm
Fuel Capacity	15.0 litres
Engine Type	V-twin, four-stroke
Front Tire	120/70-ZR17
