Yamaha MT-01 T 2005 User Manual

SHIFT SHAFT
5-64
EAS25410
SHIFT SHAFT

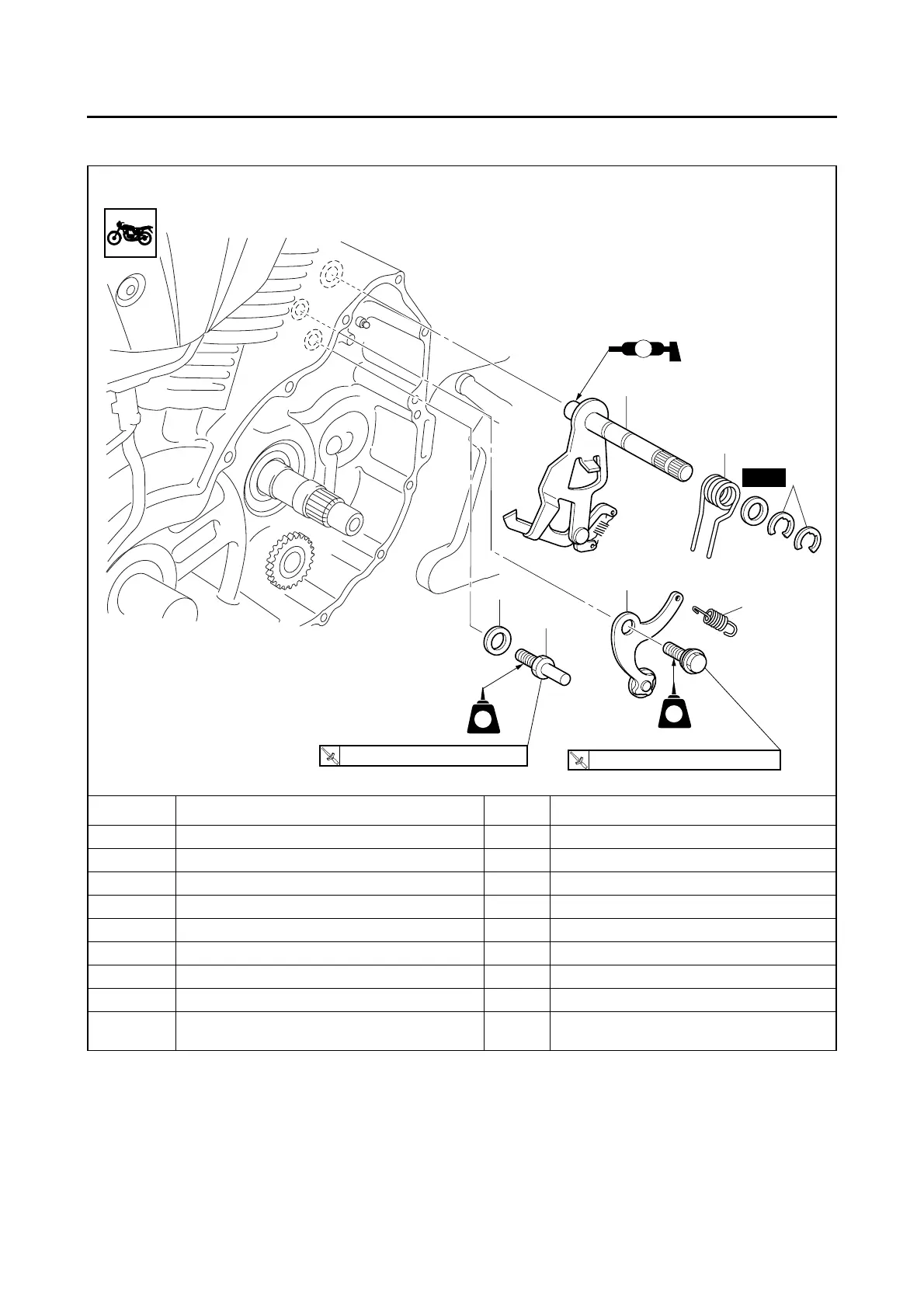

Removing the shift shaft and stopper lever
Order Job/Parts to remove Q’ty Remarks
Clutch housing Refer to “CLUTCH” on page 5-46.
1 Shift shaft 1
2 Circlip 2
3 Shift shaft spring 1
4 Shift shaft spring stopper 1
5Washer 1
6 Stopper lever 1
7 Stopper lever spring 1
For installation, reverse the removal
procedure.
LS
LT
LT
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
T
R
.
.
22 Nm (2.2 m
•
kg, 16 ft
•
Ib)
1
3
2
7
6
5
4
New
