Yamaha MT-01 T 2005 User Manual

FRONT FORK
4-50
EAS22960

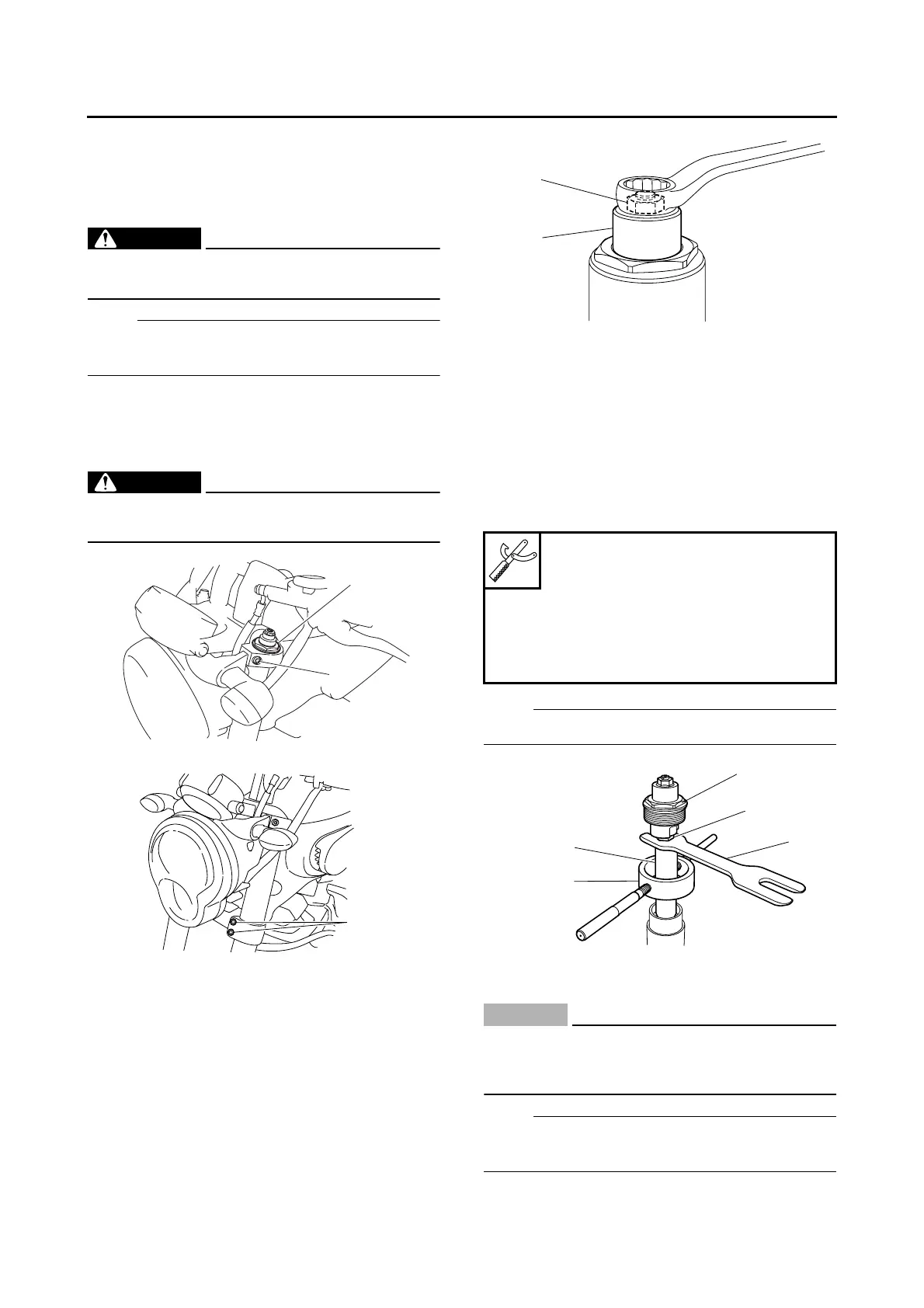

REMOVING THE FRONT FORK LEGS
The following procedure applies to both of the
front fork legs.
1. Stand the vehicle on a level surface.
WARNING
EWA13120
Securely support the vehicle so that there is
no danger of it falling over.
NOTE:
Place the vehicle on a suitable stand so that the
front wheel is elevated.
2. Loosen:
• Upper bracket pinch bolt “1”
• Cap bolt “2”
• Lower bracket pinch bolt “3”
WARNING
EWA13640
Before loosening the upper and lower brack-
et pinch bolts, support the front fork leg.
EAS22990
DISASSEMBLING THE FRONT FORK LEGS
The following procedure applies to both of the
front fork legs.
1. Position the collar “1” as shown in the illustra-
tion by turning the spring preload adjusting
bolt “2” counterclockwise until it stops.
2. Remove:
• Cap bolt “1”
(from the damper adjusting rod)
• Spacer “2”
• Nut “3”
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Press down on the spacer with the fork spring
compressor “4”.
b. Install the rod holder “5” between the nut “3”
and the spacer “2”.
NOTE:
Use the side of the rod holder that is marked “B”.
c. Hold the spring preload adjusting bolt “6” and
loosen the nut “3”.
CAUTION:
EC5YU1011
When loosening the nut “3”, be sure not to
break the projections “a” on the collar “7” of
the cap bolt “1”.
NOTE:
Loosen the nut using a proper tool that has a
thickness of 3 mm (0.12 in) or less.
2
1
3
Fork spring compressor
90890-01441
YM-01441
Rod holder
90890-01434
Damper rod holder double ended
YM-01434
2
1
2
4
1
3
5

Yamaha MT-01 T 2005 Specifications

General

Year	2005
Manufacturer	Yamaha
Model	MT-01 T
Category	Naked bike
Displacement	1670 cc
Bore x Stroke	97.0 x 113.0 mm
Compression Ratio	8.36:1
Fuel System	Fuel injection
Ignition	TCI
Lubrication	Wet sump
Clutch	Wet, multiple-disc
Transmission	5-speed
Final Drive	Chain
Frame	Aluminum die-cast
Front Suspension	Telescopic fork
Rear Suspension	Swingarm
Front Brakes	Double disc
Rear Brakes	Single disc
Rear Tire	190/50-ZR17
Overall Length	2185 mm
Overall Height	1105 mm
Seat Height	825 mm
Wheelbase	1525 mm
Ground Clearance	140 mm
Dry Weight	240 kg
Maximum Torque	150.3 Nm (15.3 kgf-m) @ 3750 rpm
Overall Width	800 mm
Fuel Capacity	15.0 litres
Engine Type	V-twin, four-stroke
Front Tire	120/70-ZR17
