GENERATOR AND STARTER CLUTCH
5-66
EAS24480

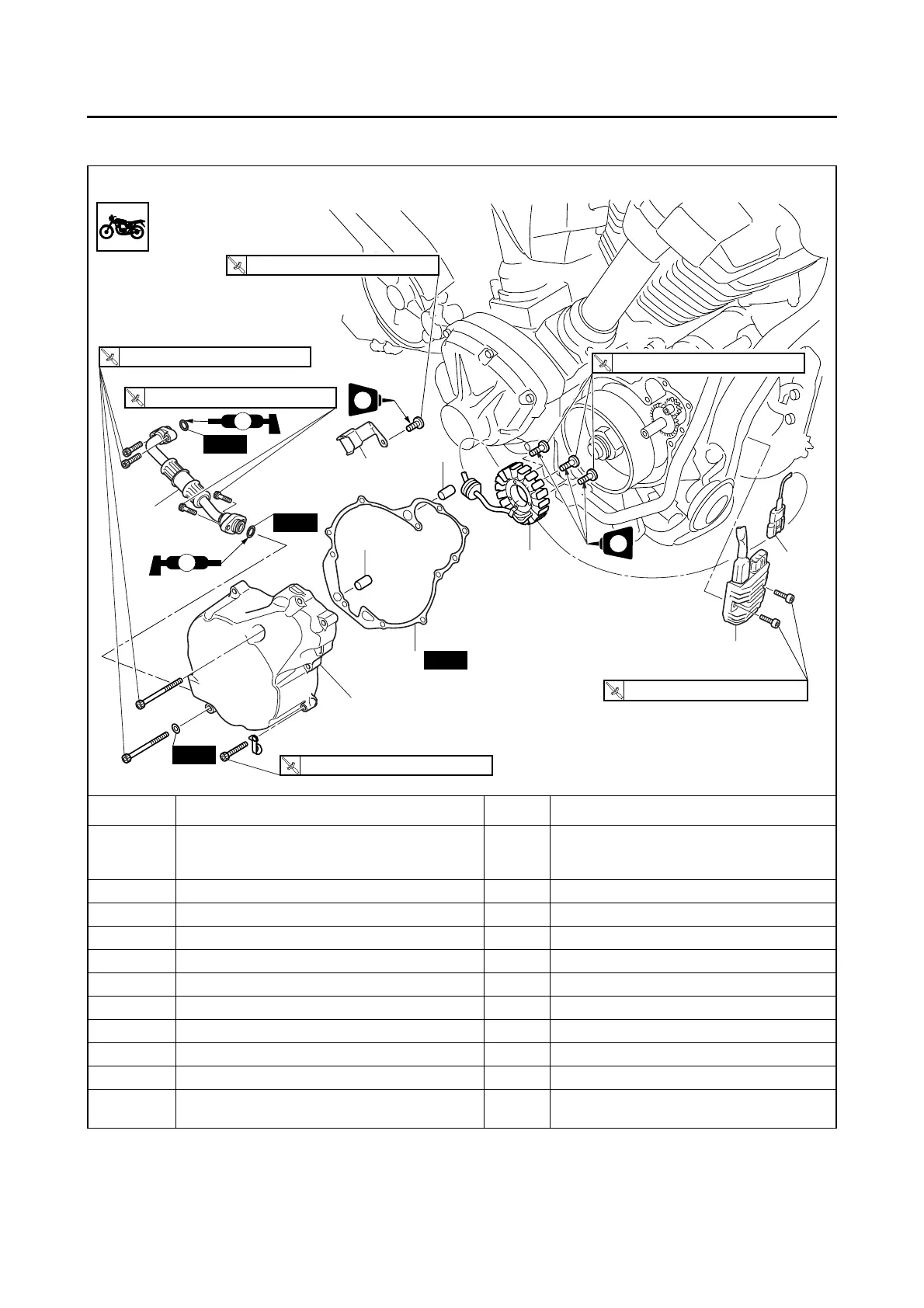

GENERATOR AND STARTER CLUTCH
Removing the stator coil assembly
Order Job/Parts to remove Q’ty Remarks
Engine oil
Drain.
Refer to “CHANGING THE ENGINE OIL” on
page 3-11.
Oil tank/Front exhaust pipe Refer to “ENGINE REMOVAL” on page 5-1.
1 Stator coil assembly coupler 1 Disconnect.
2 Rectifier/regulator 1
3 Oil pipe 2 1 From oil pump to generator cover.
4 Generator cover 1
5 Generator cover gasket 1
6 Dowel pin 2
7 Stator coil assembly lead holder 1
8 Stator coil assembly 1
For installation, reverse the removal
procedure.
LT
(9)
LT
LT
T
R
.
.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
8
5
4
6
3
7
2
1
6
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
New
New
New
New
LS
LS

Yamaha MT-01 T 2005 Specifications

General

Year	2005
Manufacturer	Yamaha
Model	MT-01 T
Category	Naked bike
Displacement	1670 cc
Bore x Stroke	97.0 x 113.0 mm
Compression Ratio	8.36:1
Fuel System	Fuel injection
Ignition	TCI
Lubrication	Wet sump
Clutch	Wet, multiple-disc
Transmission	5-speed
Final Drive	Chain
Frame	Aluminum die-cast
Front Suspension	Telescopic fork
Rear Suspension	Swingarm
Front Brakes	Double disc
Rear Brakes	Single disc
Rear Tire	190/50-ZR17
Overall Length	2185 mm
Overall Height	1105 mm
Seat Height	825 mm
Wheelbase	1525 mm
Ground Clearance	140 mm
Dry Weight	240 kg
Maximum Torque	150.3 Nm (15.3 kgf-m) @ 3750 rpm
Overall Width	800 mm
Fuel Capacity	15.0 litres
Engine Type	V-twin, four-stroke
Front Tire	120/70-ZR17
