TRANSMISSION
5-92
EAS26240
TRANSMISSION

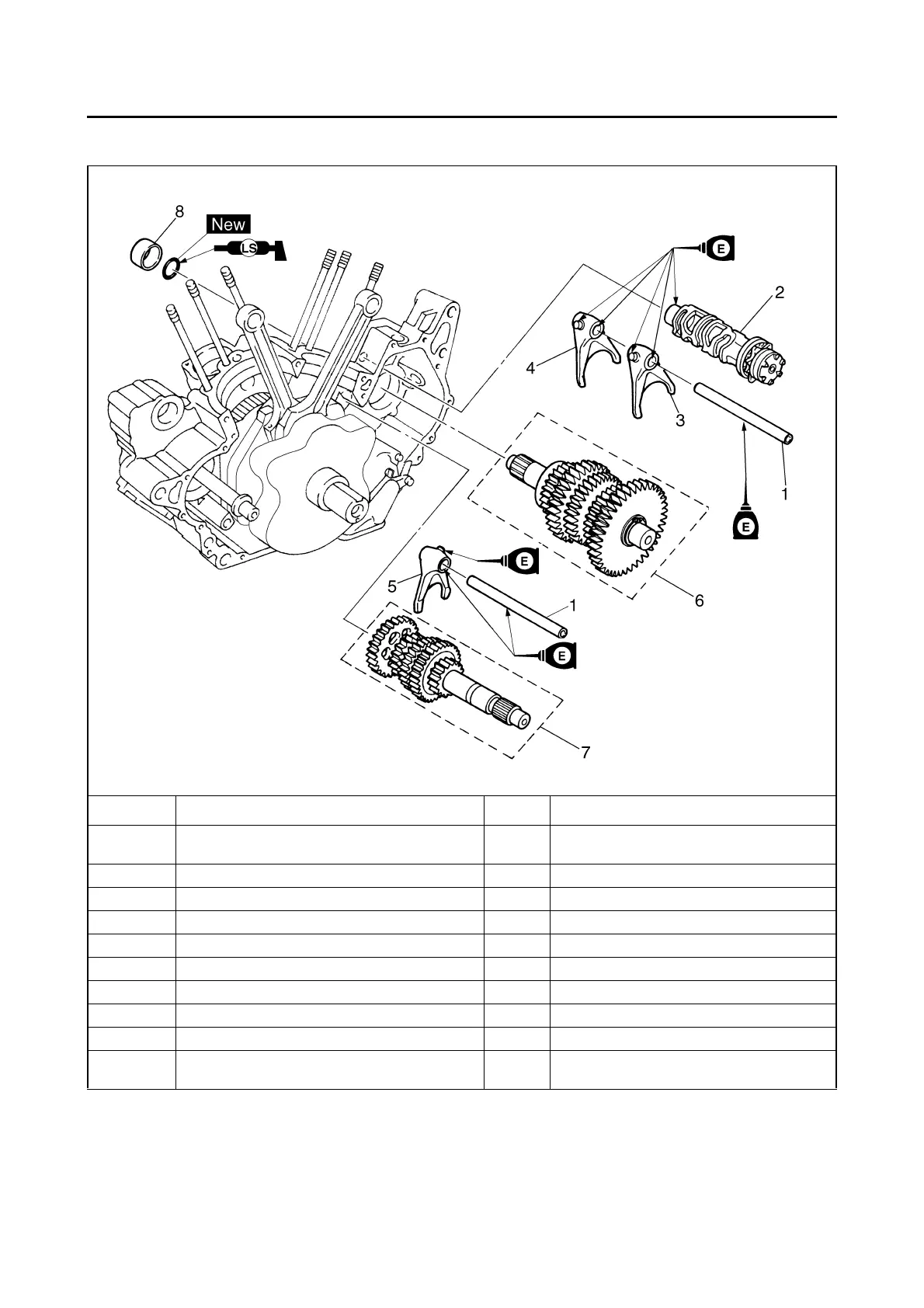

Removing the transmission, shift drum assembly, and shift forks
Order Job/Parts to remove Q’ty Remarks
Crankcase
Separate.
Refer to “CRANKCASE” on page 5-74.
1 Shift fork guide bar 2
2 Shift drum assembly 1
3 Shift fork-L 1
4 Shift fork-R 1
5 Shift fork-C 1
6 Drive axle assembly 1
7 Main axle assembly 1
8 Spacer 1
For installation, reverse the removal
procedure.
