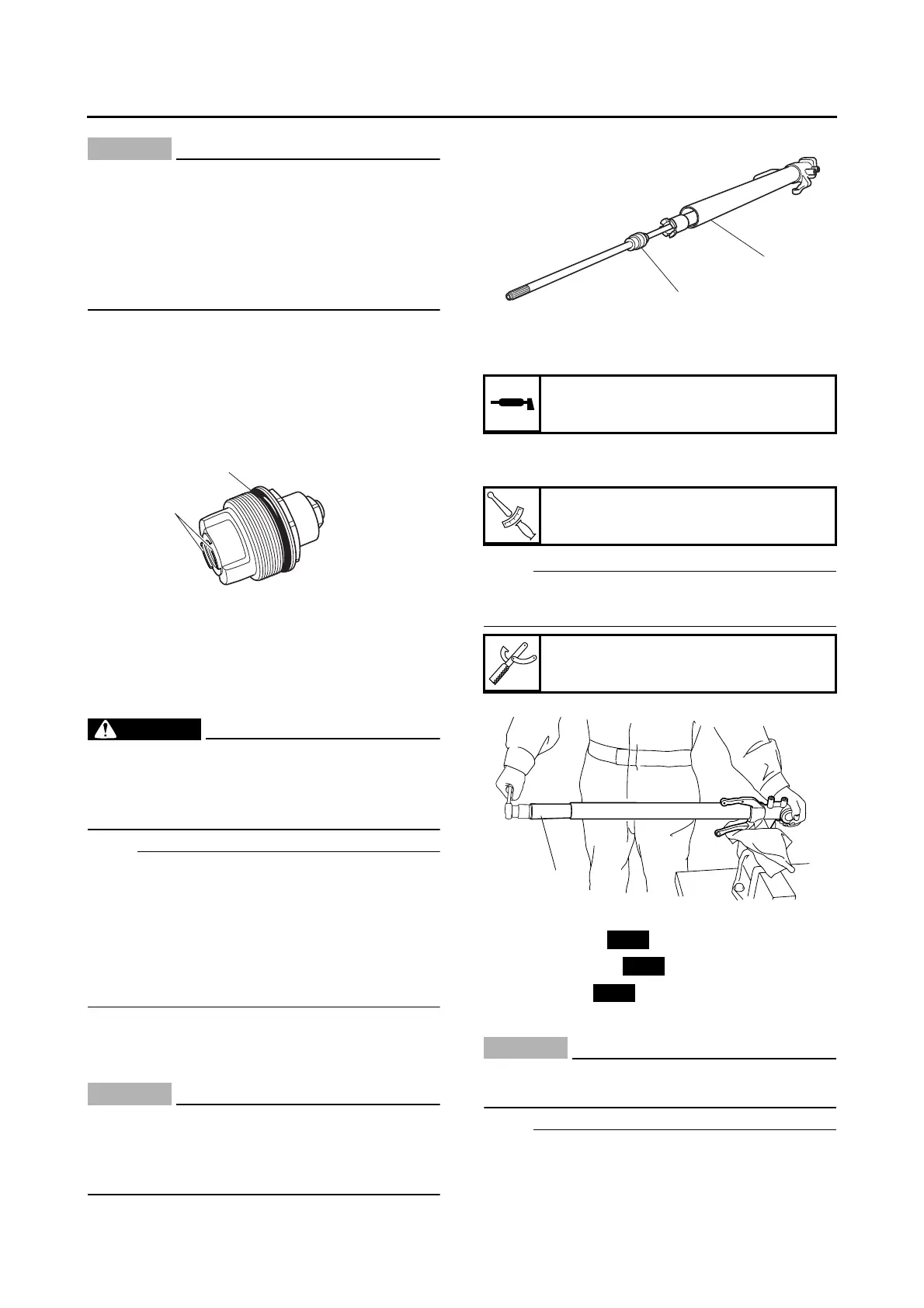

FRONT FORK
4-52
CAUTION:
ECA14200
• The front fork leg has a built-in damper ad-
justing rod and a very sophisticated inter-
nal construction, which are particularly
sensitive to foreign material.
• When disassembling and assembling the
front fork leg, do not allow any foreign ma-
terial to enter the front fork.
4. Check:
• Cap bolt O-ring “1”
Damage/wear → Replace.
• Cap bolt collar projections “2”
Cracks/damage → Replace.
EAS23040
ASSEMBLING THE FRONT FORK LEGS
The following procedure applies to both of the
front fork legs.
WARNING
EWA13660
• Make sure the oil levels in both front fork
legs are equal.
• Uneven oil levels can result in poor han-
dling and a loss of stability.
NOTE:
• When assembling the front fork leg, be sure to
replace the following parts:
– Oil seal
– Dust seal
– O-ring
• Before assembling the front fork leg, make
sure all of the components are clean.
1. Install:
• Damper rod assembly “1”
• Inner tube “2”
CAUTION:
ECA14210
Allow the damper rod assembly to slide
slowly down the inner tube “2” until it pro-
trudes from the bottom of the inner tube. Be
careful not to damage the inner tube.
2. Lubricate:
• Inner tube’s outer surface
3. Tighten:
• Damper rod assembly
NOTE:
Tighten the damper rod assembly with the
damper rod holder “1”.
4. Install:
• Dust seal “1”
• Oil seal clip “2”
• Oil seal “3”
• Washer “4”
CAUTION:
EC5YU1025
Make sure the numbered side of the oil seal
faces bottom side.
NOTE:
• Before installing the oil seal, lubricate its lips
with lithium-soap-based grease.
1
2
Recommended oil
Suspension oil 01
T
R
.
.
Damper rod assembly
35 Nm (3.5 m·kg, 25 ft·lb)
Damper rod holder
90890-01504
2
1
1
New
New
New

Yamaha MT-01 T 2005 Specifications

General

Year	2005
Manufacturer	Yamaha
Model	MT-01 T
Category	Naked bike
Displacement	1670 cc
Bore x Stroke	97.0 x 113.0 mm
Compression Ratio	8.36:1
Fuel System	Fuel injection
Ignition	TCI
Lubrication	Wet sump
Clutch	Wet, multiple-disc
Transmission	5-speed
Final Drive	Chain
Frame	Aluminum die-cast
Front Suspension	Telescopic fork
Rear Suspension	Swingarm
Front Brakes	Double disc
Rear Brakes	Single disc
Rear Tire	190/50-ZR17
Overall Length	2185 mm
Overall Height	1105 mm
Seat Height	825 mm
Wheelbase	1525 mm
Ground Clearance	140 mm
Dry Weight	240 kg
Maximum Torque	150.3 Nm (15.3 kgf-m) @ 3750 rpm
Overall Width	800 mm
Fuel Capacity	15.0 litres
Engine Type	V-twin, four-stroke
Front Tire	120/70-ZR17
