4) Pour cooling water slowly into the coolant
tank so that air bubbles do not develop. Pour
until the water overflows from the filler port.
Refer to 2.2.1(5) for the coolant capacity.
If the filler cap is loose, hot steam and water will
spout out which may cause burns.
5) After supplying cooling water, fit the filler cap
and tighten it firmly. To reassemble the cap,
align the tabs on the bottom of the cap with
the notches on the filler port and turn
clockwise 1/3 of a turn.
6) Remove the coolant recovery tank cap and fill
with coolant mix to the lower limit. Replace
the cap to the coolant recovery tank.
Coolant recovery tank capacity: 0.8L (1.7
pints)
7) Check the rubber hose connecting the
coolant recovery tank to the fresh water
cooler. Be sure the hose is securely
connected and there is no looseness or
damage.
When the hose is not watertight, an excessive
amount of cooling water will be used.

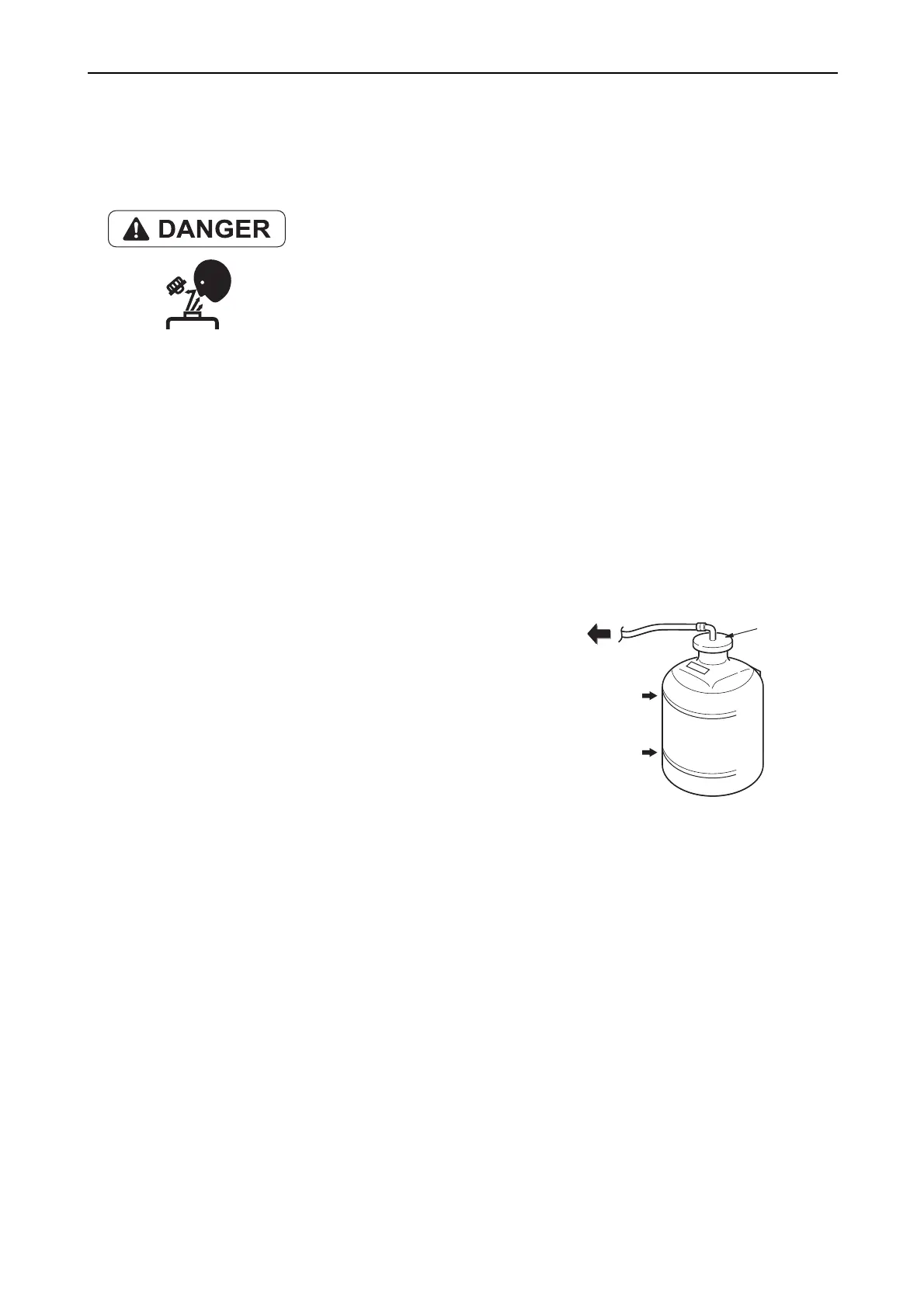

LOW
FULL
Cap
To fresh
water cooler
Upper limit
Lower limit
