4. Disassembly and reassembly
152

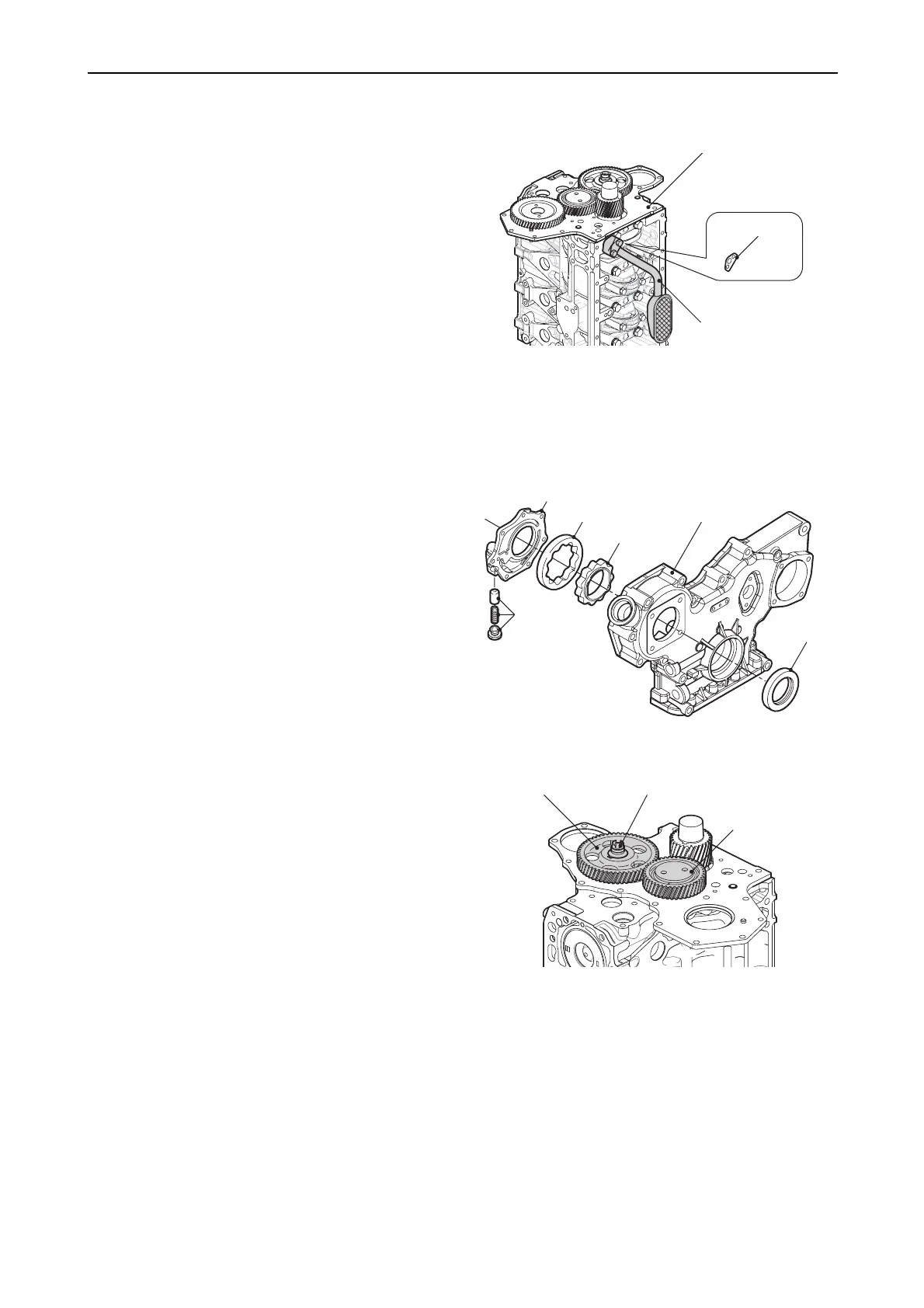

(27) Removing the lube oil inlet pipe
Remove the lube oil inlet pipe and gasket.
(28) Removing the gear case
Loosen the gear case bolts, and remove the
gear case from the gear case flange.
(29) Removing the lube oil pump
Remove the lube oil pump from the gear
case.
(30) Removing the idle gear
Loosen the three bolts holding the idle gear
and pull out the idle gear and shaft.
Gasket
Gear case flange
Lube oil inlet pipe
010441-00E
010382-00E
Lube oil pump cover
Outer rotor
Inner rotor
Gear case
Oil seal
Pressure
control valve
Idle gear
Camshaft gear Camshaft assembly
010524-00E
