4. Disassembly and reassembly
162

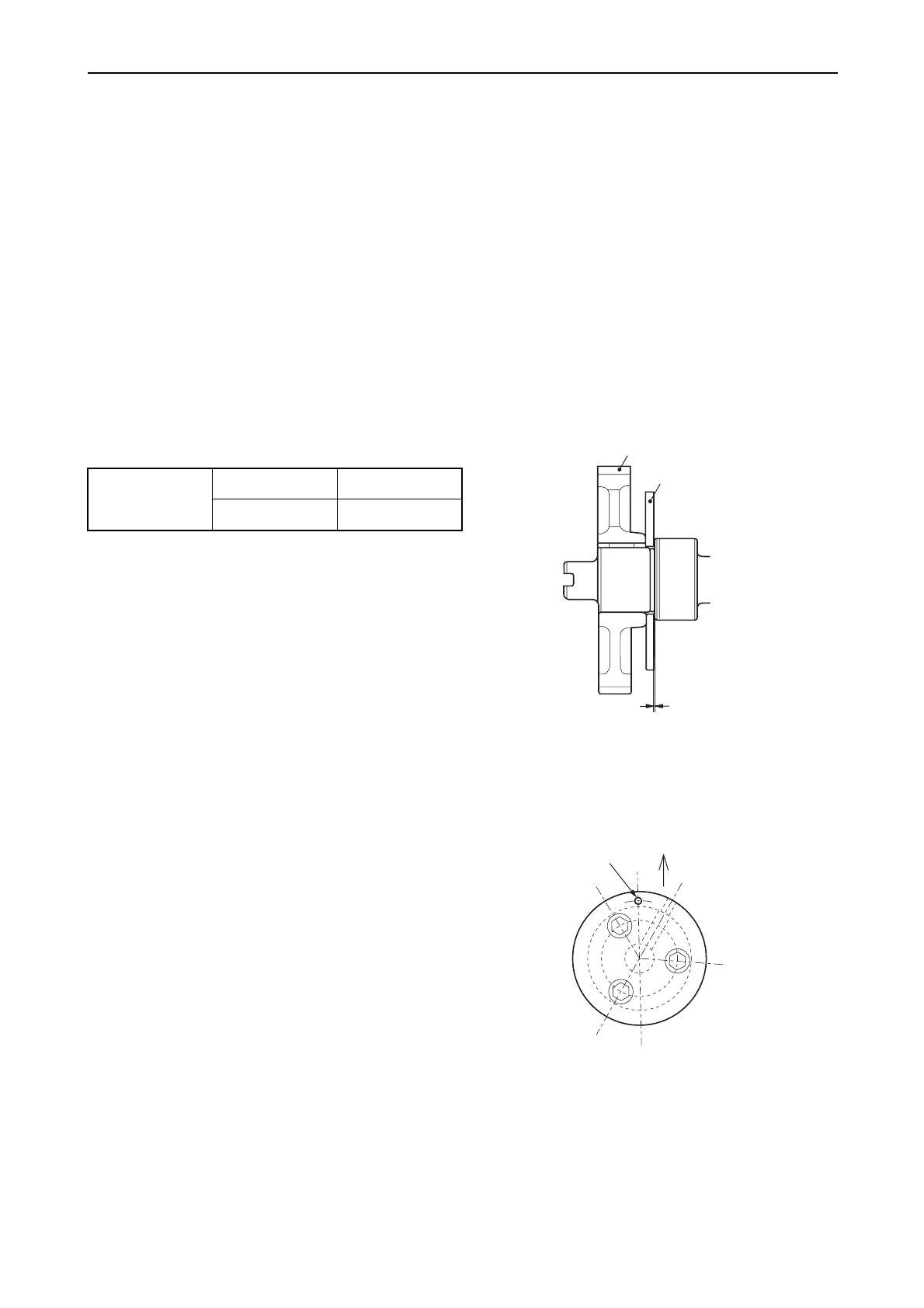

(10) Mounting the camshaft
1) If the camshaft and the camshaft gear have
been disassembled, shrink fit the camshaft
and the camshaft gear [heat the camshaft
gear to 180-220 deg. C in the hot oil and
press fit].
Note:
When mounting the camshaft and the
camshaft gear, be sure not to forget assembly
of the thrust metal. Also make sure they are
assembled with the correct orientation.
2) Coat the cylinder block camshaft bearings
and camshaft with engine oil, insert the
camshaft in the cylinder block, and tighten the
thrust metal bolts.
3) Measure the camshaft side gap.
4) Make sure that the camshaft rotates
smoothly.
(11) Mounting the idling gear
1) Mount the idling gear so that the oil hole of
the idle gear shaft faces up.
Note:
The idle gear shaft must be mounted with the
mark of the shaft upward.
mm
Camshaft side
gap
Standard Limit
0.05-0.20 0.30
Camshaft gear
Thrust metal
Side gap
010375-00E
Upside
Mark
010374-00E
