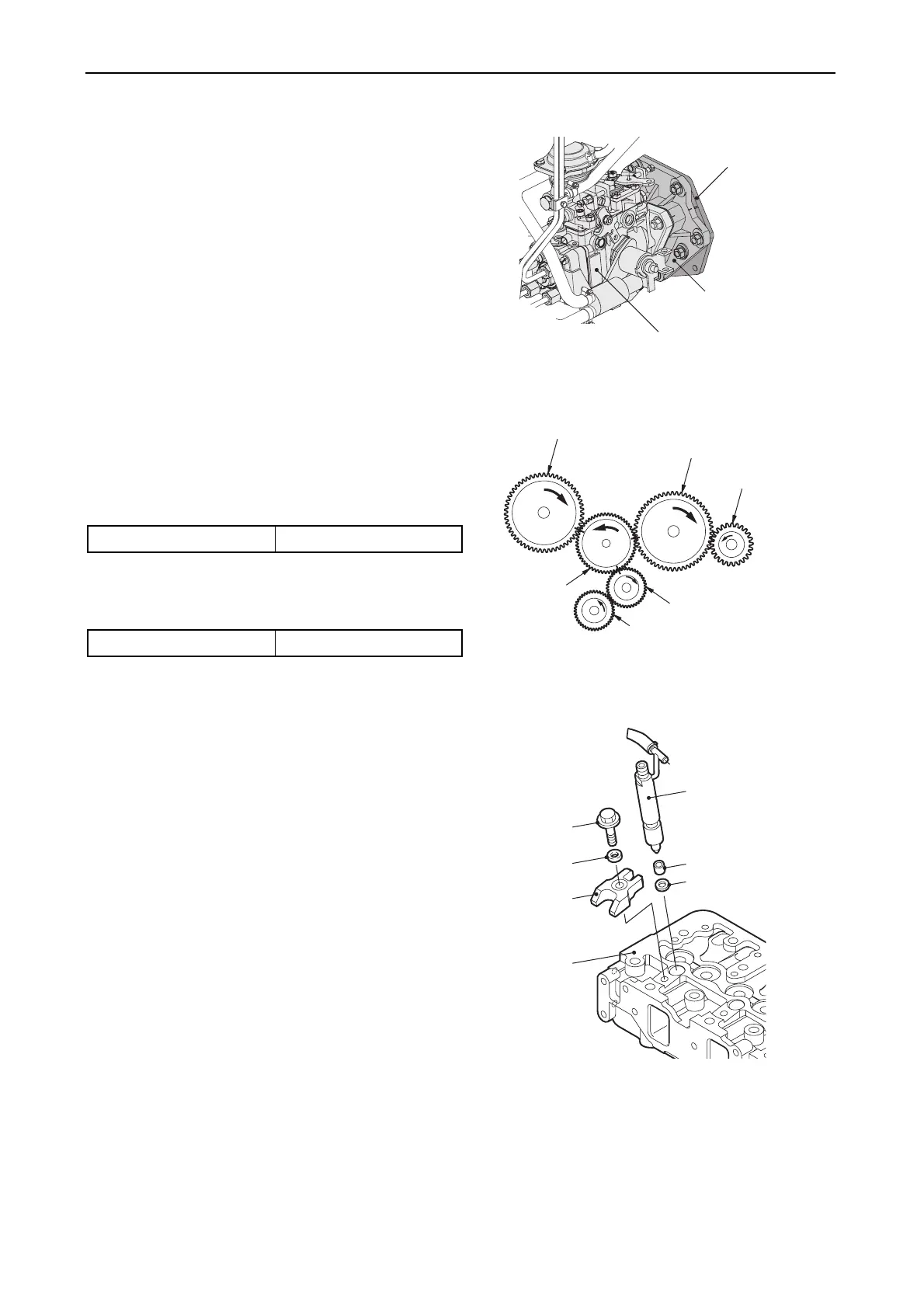

4. Disassembly and reassembly
167
For 4JH4-TE and 4JH4-HTE
1) Install the VE pump bracket and O-ring to the
gear case flange while adjusting both mark-off
lines of the bracket and gear case flange.
2) Install the fuel injection pump and O-ring to
the VE pump bracket while adjusting both
mark-off lines of the bracket and VE pump.
Lightly tighten the 3 nuts. (After adjusting
injection timing, tighten the fuel injection
pump).
Note:
Be careful not to scratch the O-ring between
the fuel injection pump and bracket.
3) Fit the pump drive gear to the pump camshaft.
4) Align the "B" match marks on the pump drive
gear and idle gear.
5) Tighten the pump drive gear nut, which
fastens the pump gear and camshaft, to the
specified torque. (Apply lube oil to the nut.)
6) Measure the backlash between the pump
drive gear and idle gear.
(23) Mounting the fuel injection nozzle
1) Replace the used fuel nozzle protector and
fuel nozzle seat with new ones. Put the seat
in the cylinder head and the protector to the
nozzle tip. Mount the fuel injection nozzle to
the cylinder head.
Tightening torque Nm (kgf•m)
Pump drive gear nut 59-69 (6.0-7.0)
mm
Backlash 0.07-0.15
Gear case flange
VE pump bracket
VE pump
010519-00E
A
B
C
Fuel injection pump drive gear
Camshaft gear
Seawater pump gea
Idle gear
Crankshaft gear
Lube oil pump gear
015675-00E
Bolt
Washer
Fuel nozzle
retainer
Cylinder head
Fuel injection nozzle
Fuel nozzle protecto
Fuel injection seat
010384-00E
2-valve head
