iC9200 Series
Web-based management - WBM
Diagnostics > PROFINET - optional

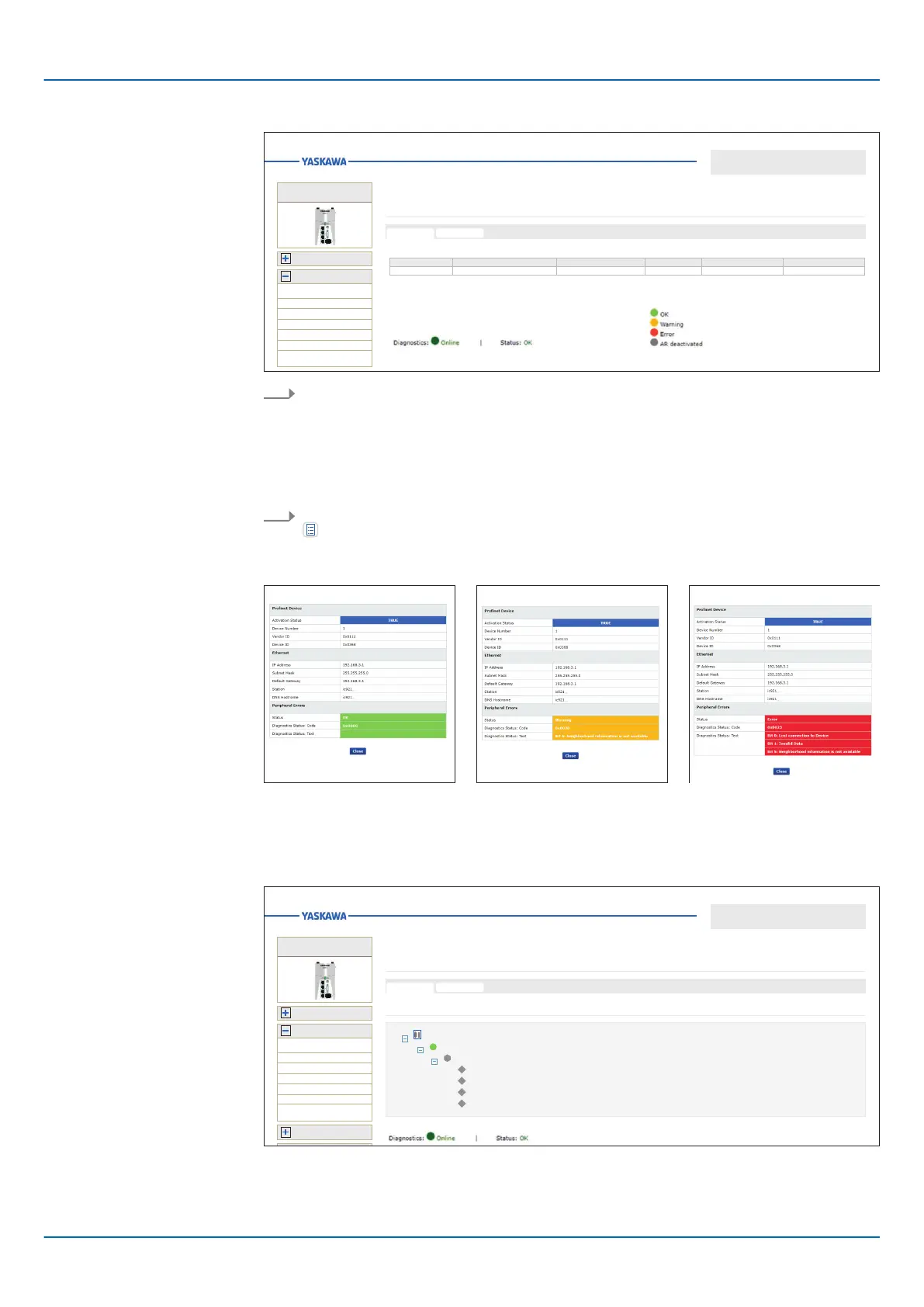

Tab: ‘Device List
’
Open the WBM of a
PROFINET device
Device Information
Tab: ‘Tree View’
Profinet
Profinet Device List
Diagnostics
Device Liste ...
No. Device Name IP Address
Active Diagnosstics Details
1 PMC92... 192.168... TRUE 0x002B ...
Information
iC92...
PMC92...
Diagnostics
Axis Grid
Et
herCAT
Motion Alarms
Notifications
Profinet
SliceBus
SliceBus Modules
. To access the WBM of a PROFINET device, click on the corresponding PROFINET
device in the
Device Name column.
🡆 The WBM of the PROFINET device opens in a new tab in the web browser.
For the corresponding PROFINET device, you will find information on IP settings and
diagnostics at Device Information. This information is refreshed once a second.
. To show the Device Information of a PROFINET device click in Details column on
.
🡆 The Device Information view with the current information on IP settings and
diagnostics is opened.
Device Information
Device InformationDevice Information
Here you have a tree view of all configured PROFINET devices. The overview contains
the device names of the PROFINET devices, their current IP settings and the diagnostic
status of the devices and modules. Via [+] and [-] you can open or close the next level of
the Tree View.
Profinet
Profinet Tree View
Diagnostics
Tree View ...
iC921... / IP Address: 192.168.3.1 / Profinet Devices : 1
.
.
Station : IM053-1PN01 / IP Address: 192.168.3.11 / Profinet Devices : 1
..
..
Module ID : 106370 / Slot : 0 / Submodules : 4
..
..
Node ID : 5 / Submodule ID : 2 / Subslot : 0 / Type: 0 / Sub elements : 2
...
Node ID : 6 / Submodule ID : 106355 / Subslot : 0 / Type: 0 / Sub elements : 2
...
Node ID : 7 / Submodule ID : 106442 / Subslot : 0 / Type: 0 / Sub elements : 2
...
Node ID : 8 / Submodule ID : 106442 / Subslot : 0 / Type: 0 / Sub elements : 2
...
..................
Information
Configuration
iC92...
PMC92...
Diagnostics
Axis Grid
Et
herCAT
Motion Alarms
Notifications
Profinet
SliceBus
SliceBus Modules
