Web-based management - WBM
iC9200 Series
Diagnostics > PROFINET - optional
Controller level
Station level
Module level
Sub module level

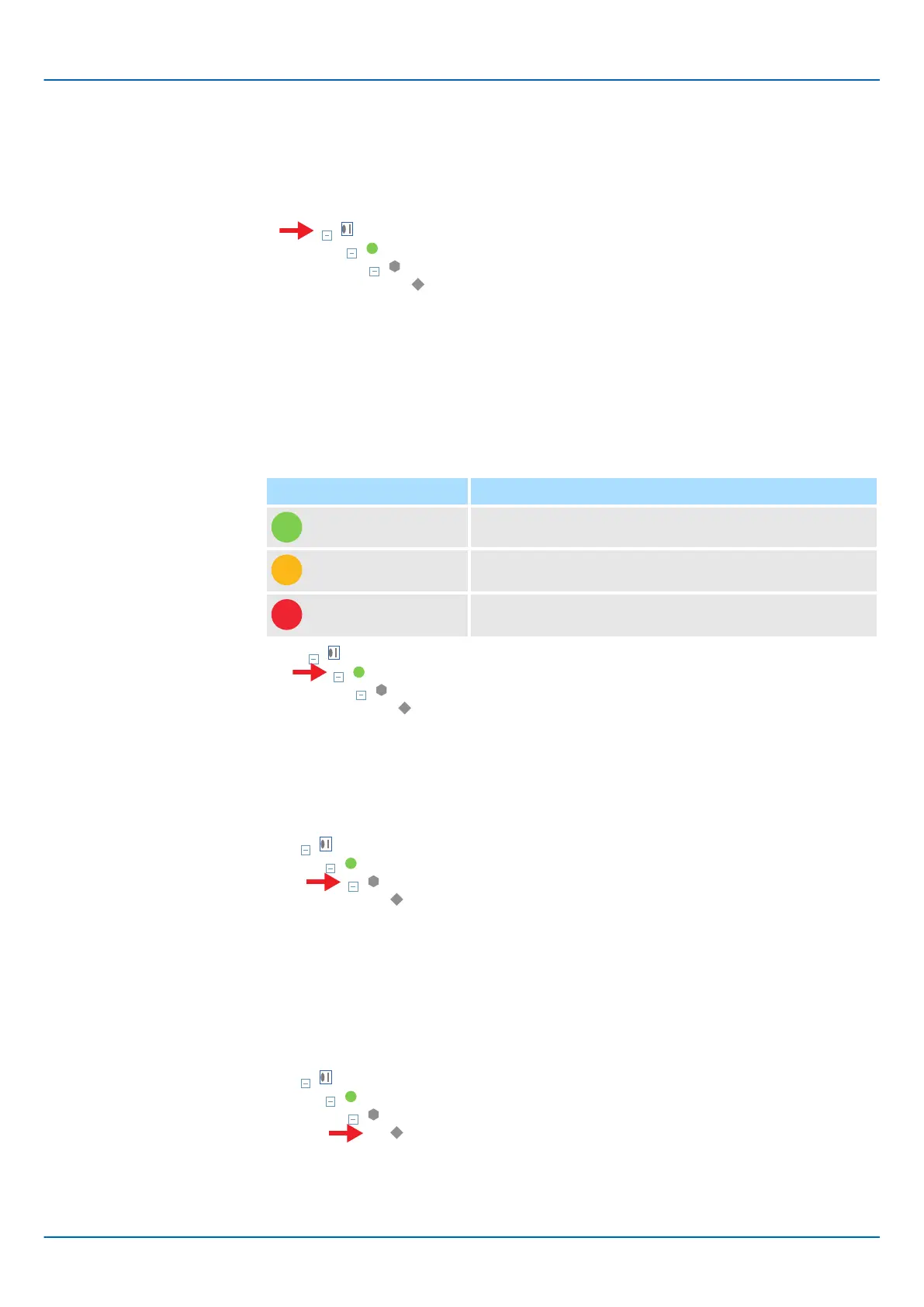

On the PROFINET controller level you will find the following information:
■ Controller designation
■ IP Address - IP address of the controller
■ PROFINET Devices - Number of PROFINET devices
iC921... / IP Address: 192.168.3.1 / Profinet Devices : 1
.
.
Station : IM053-1PN01 / IP Address: 192.168.3.11 / Profinet Devices : 1
.
.
..
Module ID : 106370 / Slot : 0 / Submodules : 4
.
.
..
Node ID : 5 / Submodule ID : 2 / Subslot : 0 / Type: 0 / Sub
elements : 2
...
...
On station level you will find the following information about the PROFINET devices:
■ Station name
■ IP Address - IP address of the station
■ Vendor ID - the ID of the vendor
■ Device ID - the ID of the device
■ Modules - number of modules
The following symbols inform about the current diagnostic state of the PROFINET device:
Symbol Diagnostic status
OK
!
Warning
!
Error
iC921... / IP Address: 192.168.3.1 / Profinet Devices : 1
.
.
Station : IM053-1PN01 / IP Address: 192.168.3.11 / Profinet Devices : 1
.
.
..
Module ID : 106370 / Slot : 0 / Submodules : 4
.
.
..
Node ID : 5 / Submodule ID : 2 / Subslot : 0 / Type: 0 / Sub
elements : 2
...
...
On module level you will find the following information:
■ Module ID - the ID of the module
■ Slot - slot of the module
■ Sub modules - the number of sub modules
iC921... / IP Address: 192.168.3.1 / Profinet Devices : 1
.
.
Station : IM053-1PN01 / IP Address: 192.168.3.11 / Profinet Devices : 1
.
.
..
Module ID : 106370 / Slot : 0 / Submodules : 4
.
.
..
Node ID : 5 / Submodule ID : 2 / Subslot : 0 / Type: 0 / Sub
elements : 2
...
...
On sub module level you will find the following information:
■ Node ID - node ID of the sub module
■ Sub module ID
■ Sub slot
■ Type
■ Sub elements - number of sub module elements
iC921... / IP Address: 192.168.3.1 / Profinet Devices : 1
.
.
Station : IM053-1PN01 / IP Address: 192.168.3.11 / Profinet Devices : 1
.
.
..
Module ID : 106370 / Slot : 0 / Submodules : 4
.
.
..
Node ID : 5 / Submodule ID : 2 / Subslot : 0 / Type: 0 / Sub
elements : 2
...
...
