Checking Sample Program Operation
4-45
4
System Startup and Sample Programs
( 2 ) From the File Manager Window (For MPE720 Ver 5.
Only)
When using MPE720 Ver 5.
, the Tuning Panel Window can also be opened from the File Manager Window by
using the following procedure.
1.
Log on online, open the Programs folder, and then open the High Scan Programs folder in the PLC
folder where the sample programs are saved in the File Manager Window.
2.

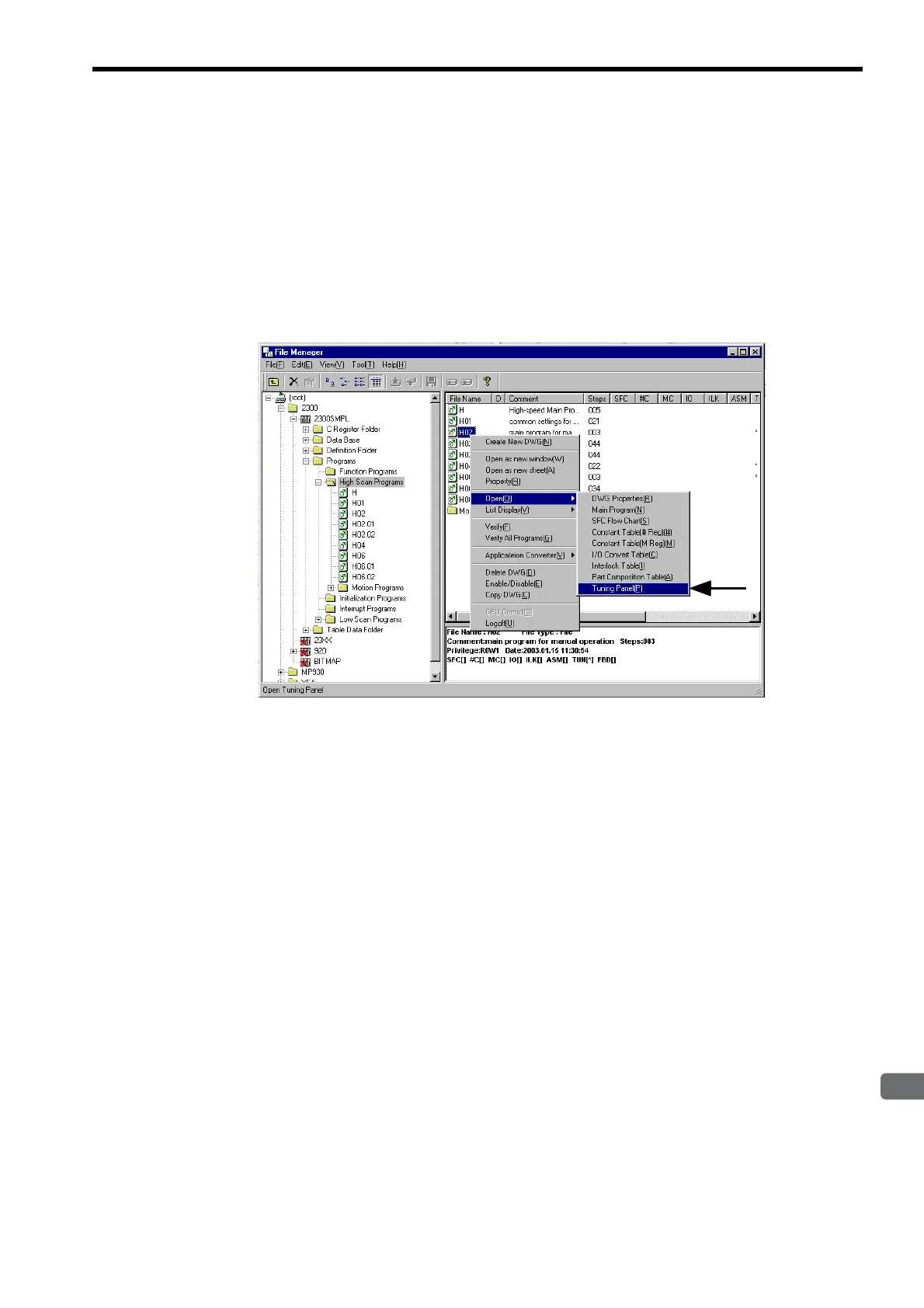

Right-click the H02 Drawing in the High Scan Programs folder and select Open - Tuning Panel from
the pop-up menu that is displayed.
Engineering Manager will start and the following Tuning Panel Window will be displayed.
