YASKAWA MP2300 - Startup Sequence and Basic Operation; DIP Switch Settings

5
Outline of Motion Control Systems
5.1.1
DIP Switch Settings
5-2
5.1 Startup Sequence and Basic Operation
This section describes the MP2300 startup sequence and basic operation together with the DIP switch settings, self-
diagnosis at startup, and LED indicator patterns.
5.1.1 DIP Switch Settings

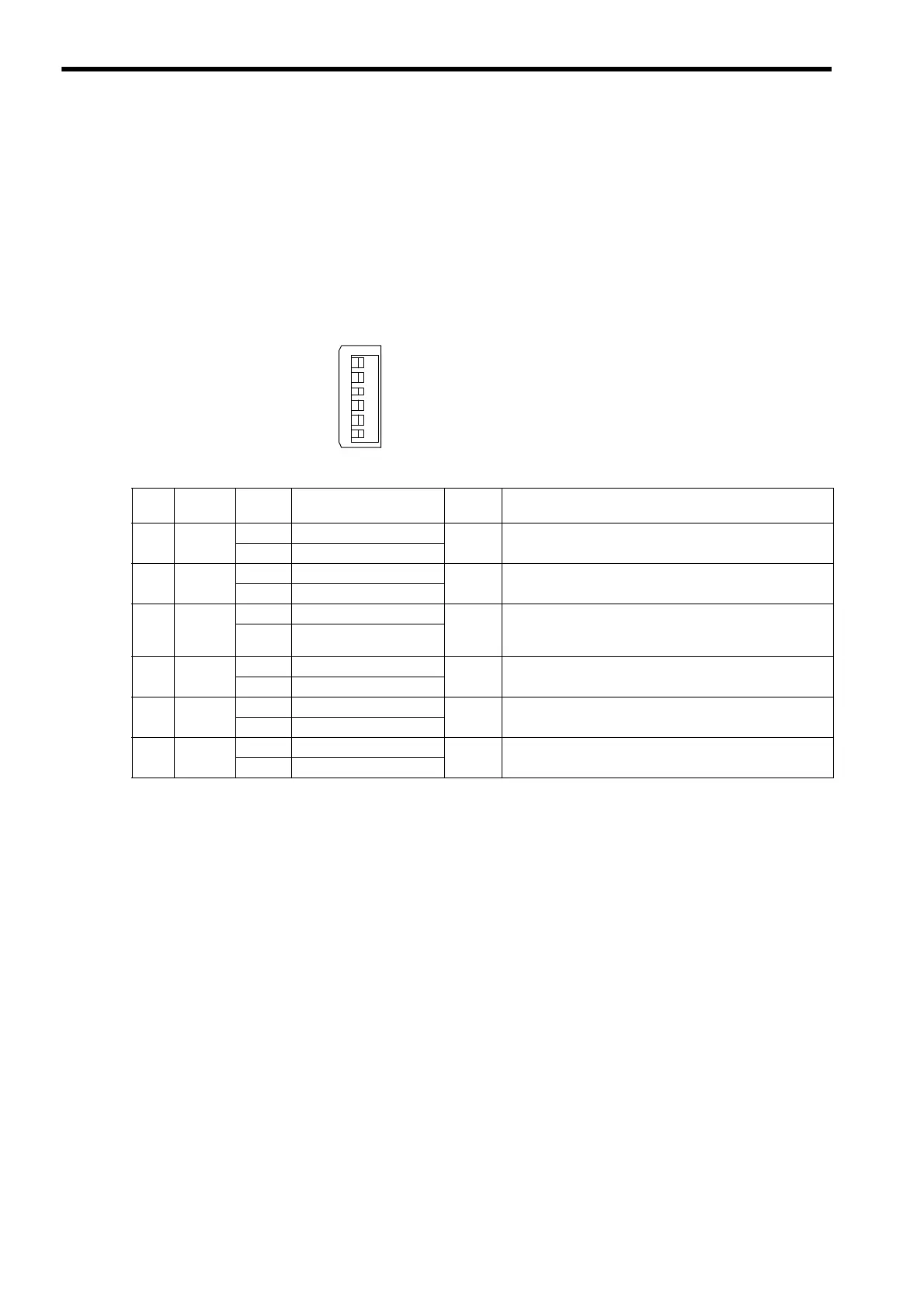

Set the DIP switch on the Basic Module to control operations of the startup sequence. The six switches are provided on
the DIP switch on the Basic Module as shown in the figure below. The following table lists the functions of six
switches.
SW1
OFFޓޓޓON
STOP
SUP
INIT
CNFG
MON
TEST
123456
No.
Switch
Name
Status Operating Mode
Default
Setting
Remarks
1
STOP
ON User program stops
OFF
Set to ON to stop user program operation. Effective only at
power ON.
OFF User program operation
2
SUP
ON System use
OFF
Always set to OFF.
OFF Normal operation
3
INIT
ON Memory clear
OFF
Set to ON to clear memory.
Programs stored in flash memory will be run when Memory
Clear is set to OFF.
OFF Normal operation
4
CNFG
ON Configuration mode
OFF
Set to ON for self-configuration of connected devices.
OFF Normal operation
5
MON
ON System use
OFF
Always set to OFF.
OFF Normal operation
6
TEST
ON System use
OFF
Always set to OFF.
OFF Normal operation
