4.2
Starting the Sample Program - MPE720 Ver 6.

4-17
4
System Startup and Sample Programs
4.2.2 Setting Motion Fixed Parameters and Adjusting the Settings for Servo Control
( 1 ) Setting and Saving Motion Fixed Parameters
This section describes how to set and save MP2300 motion fixed parameters for Axes 1 and 2 according to the sample
program.
To use the program, set the motion fixed parameters according to the connected system. For details regarding the
motion fixed parameters, refer to Machine Controller MP2000 Series Built-in SVB/SVB-01 Motion Modules User’s
Manual (Manual No.: SIEPC88070033).
1.

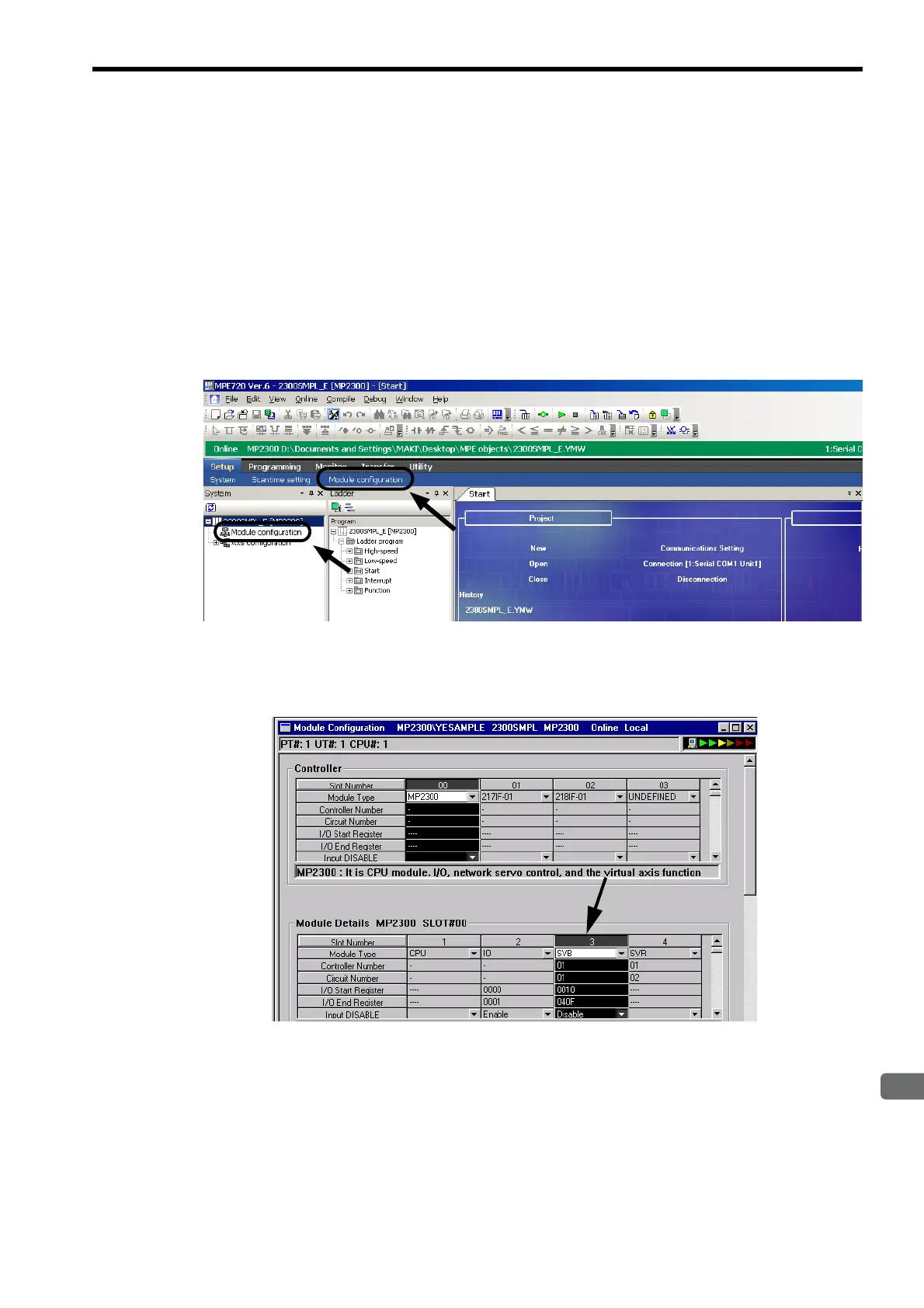

Select Setup - Module configuration from the Launcher. Alternatively, double-click Module
configuration in the 2300SMPL_E folder in the system sub programs.
The Engineering Manager will start, and the Module Configuration Window will open.
2.
Select 00 in the Controller Area and double-click the 3 in the Module Details MP2300 SLOT
00 Area
in the Module Configuration Window.
The SVB Definition Window with Fixed Parameters Tab Page will appear.
