YASKAWA MP2300 - Power Supply Connector

3
Mounting and Connections
3.2.2
Power Supply Connector
3-10
3.2.2 Power Supply Connector
( 1 ) Specifications, Pin Arrangement, and Connection Procedure

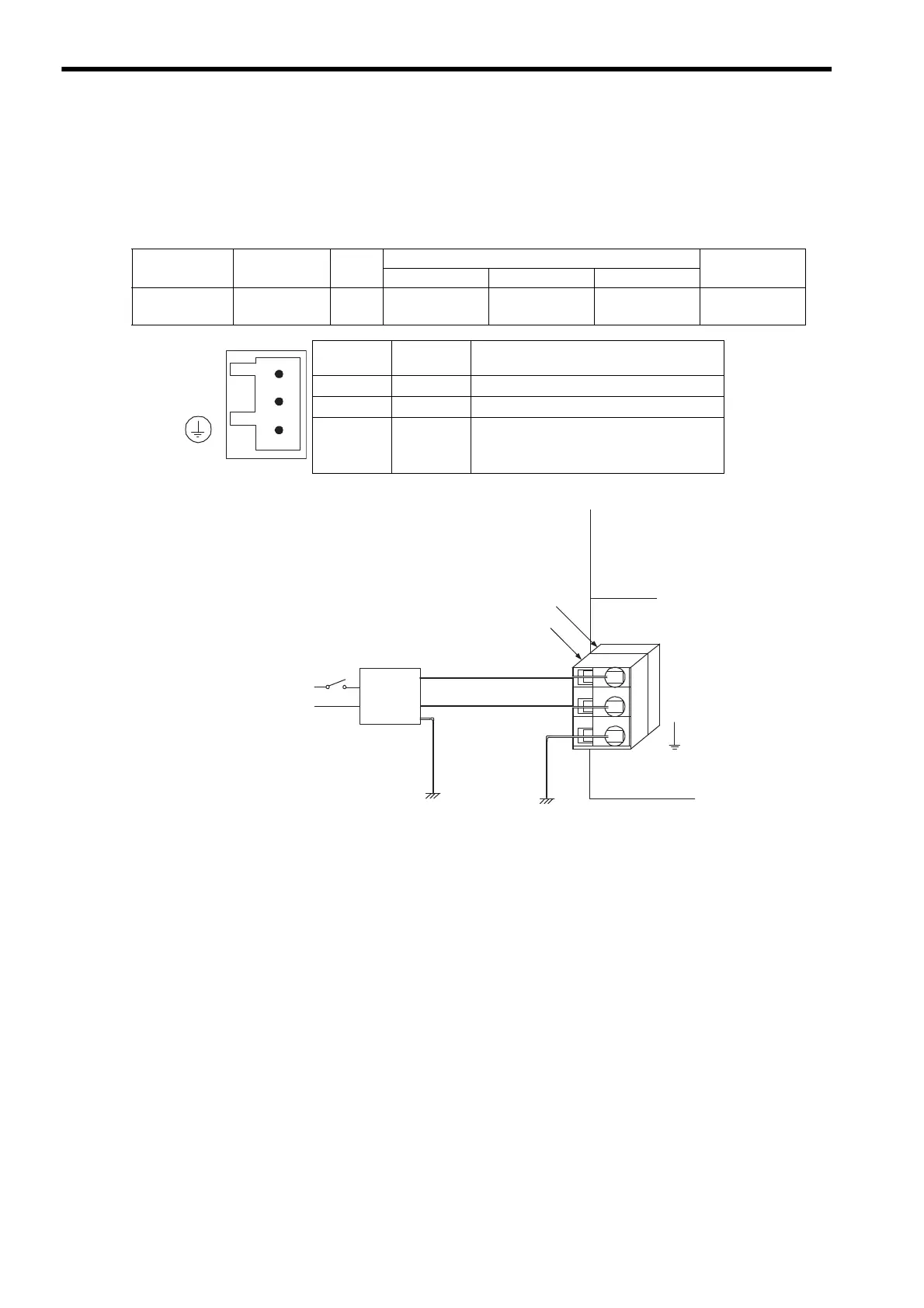

Supply a 24-VDC to the MP2300. Connect the power supply connector as shown in the diagram below.

Use an insulated 24-VDC power supply. Attach the power supply switch on the AC side. If the switch is attached on
the 24-VDC side, there will be an inrush current of approximately 40 A when the power is turned ON.
Name
Connector
Name
No. of
Pins
Connector Model
Cable Model
Module Cable Manufacturer
Power Supply
Connector
POWER
3
721-863 721-203/026 WAGO
–
Pin No.
Signal
Name
Description
3
24V
24 VDC input
2
0V
0 V input
1
FG
Frame ground
(Ground to 100
Ω
or less.)
24 VDC
0 VDC
A
C input
24 VDC
0 V
24 V
0 V
24-VDC
power
MP2300
POWER
FG
FG
721-863
721-203/026
