Outline of Motion Control Systems
<When Using MPE720 Ver 5.>
5.5.2 Precautions when Setting or Changing Module Configuration Definition Files
Observe the following precautions when setting or changing module configuration definition files.
• Always check to make sure that the mounted Module is the one that is defined.
• Be sure to save any new settings or changes to flash memory.
• After the settings or changes have been completed, turn the power supply to the MP2300 OFF and ON.

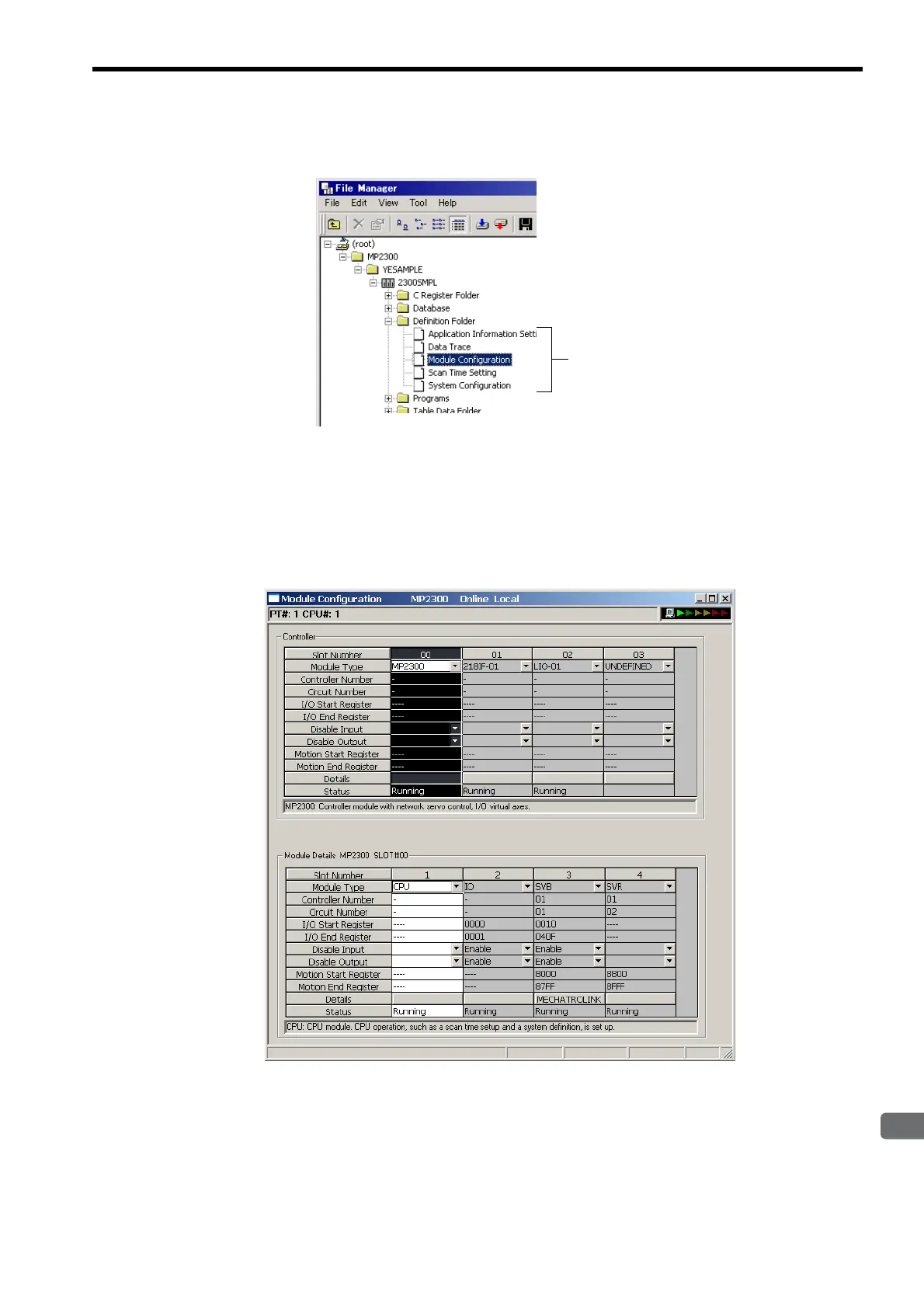

Fig. 5.3 Module Configuration Definition Window
User Definition Files
