YASKAWA MP2300 - MECHATROLINK Connectors

3
Mounting and Connections
3.2.3
MECHATROLINK Connectors
3-12

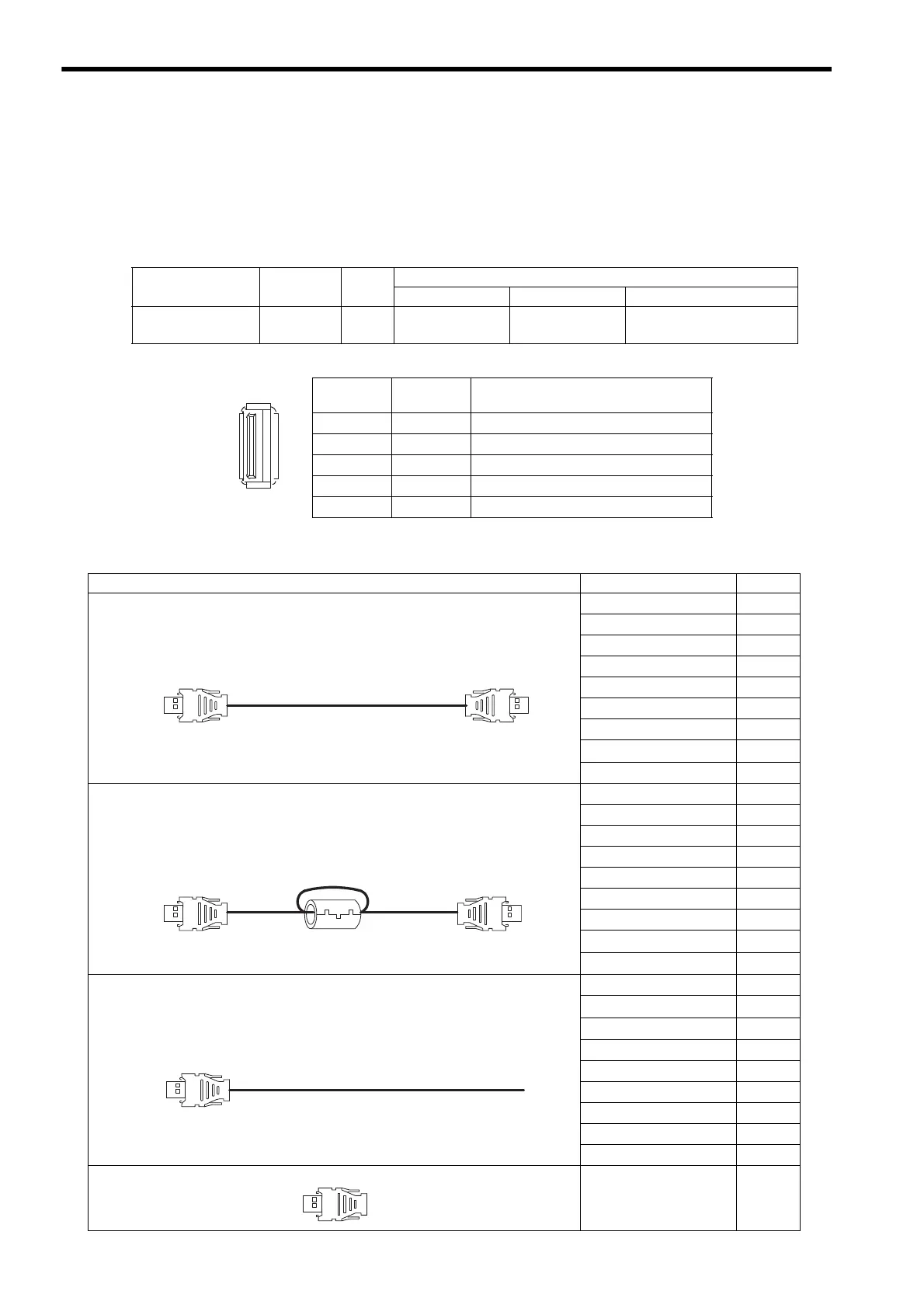

3.2.3 MECHATROLINK Connectors
MECHATROLINK connector is used to connect the MP2300 and the SERVOPACKs and distributed
I/O via MECHATROLINK cables.
( 1 ) Specifications and Pin Arrangement
( 2 ) Cables
Name
Connector
Name
No. of
Pins
Connector Model
Module Cable Manufacturer
MECHATROLINK
Connector
M-I/II
4
1903814-1 2040305-1 Tyco Electronics Japan G.K.
Pin Number
Signal
Name
Description
1
(NC)
Not used.
2
/DATA
Signal
−
3
DATA
Signal +
4
SH
Not used.
Shell
Shield
Connects the shield wire.
Name and Specification Model Number Length
MECHATROLINK Cable
MECHATROLINK Connector – MECHATROLINK Connector
JEPMC-W6002-A5
0.5 m
JEPMC-W6002-01
1 m
JEPMC-W6002-03
3 m
JEPMC-W6002-05
5 m
JEPMC-W6002-10
10 m
JEPMC-W6002-20
20 m
JEPMC-W6002-30
30 m
JEPMC-W6002-40
40 m
JEPMC-W6002-50
50 m
MECHATROLINKCable
MECHATROLINK Connector – MECHATROLINK Connector
(with Ferrite Core)
JEPMC-W6003-A5
0.5 m
JEPMC-W6003-01
1 m
JEPMC-W6003-03
3 m
JEPMC-W6003-05
5 m
JEPMC-W6003-10
10 m
JEPMC-W6003-20
20 m
JEPMC-W6003-30
30 m
JEPMC-W6003-40
40 m
JEPMC-W6002-50
50 m
MECHATROLINK Cable
MECHATROLINK Connector – Loose Wire (For
Σ
-
I
SERVOPACK)
JEPMC-W6011-A5
0.5m
JEPMC-W6011-01
1 m
JEPMC-W6011-03
3 m
JEPMC-W6011-05
5 m
JEPMC-W6011-10
10 m
JEPMC-W6011-20
20 m
JEPMC-W6011-30
30 m
JEPMC-W6011-40
40 m
JEPMC-W6011-50
50 m
Terminator
JEPMC-W6022
−
