YASKAWA MP2300 - Setting SVB Module

2
Module Specifications
2.2.5
Setting SVB Module
2-16
2.2.5 Setting SVB Module
A SERVOPACK connected to MECHATROLINK can be controlled by executing the MECHATROLINK transmission
definition and SVB definition with the MPE720 Engineering Manager.
( 1 ) MECHATROLINK Transmission Definition
[ a ] How to Open the MECHATROLINK Transmission Definition Window

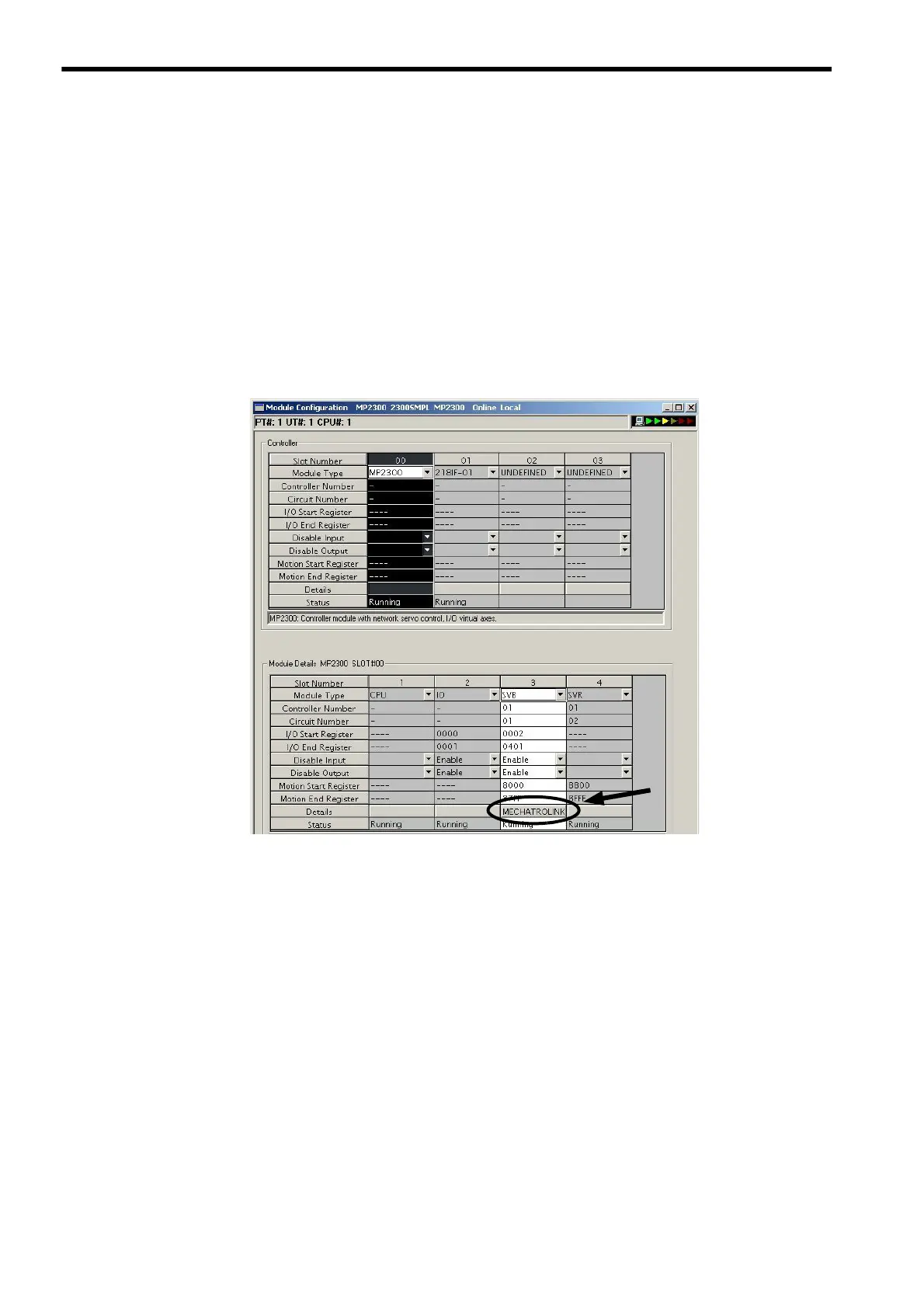

In the Module Configuration Window, select the SVB Module in the Controller field and double-click the
MECHATROLINK cell in the Details field. The MECHATROLINK Transmission Definition Window will open.

To check or set the built-in SVB Module, select slot number 00 in the Controller field.

If several SVB Modules are mounted, select the SVB Module to be checked or set in the Controller field.
