YASKAWA MP2300 - CPU I;O (Built-In I;O) Module

2
Module Specifications
2.2.3
CPU I/O (Built-in I/O) Module
2-10
2.2.3 CPU I/O (Built-in I/O) Module
The CPU I/O Module is a digital I/O module built in the MP2300 Basic Module, and provides eight external input
points and four external output points.
( 1 ) CPU/IO Module Details
For CPU I/O Module details including specifications, refer to 3.2.4 CPU I/O (Built-in I/O) Connectors on page 3-16.
( 2 ) Settings for CPU I/O Module (Local I/O definition Window)

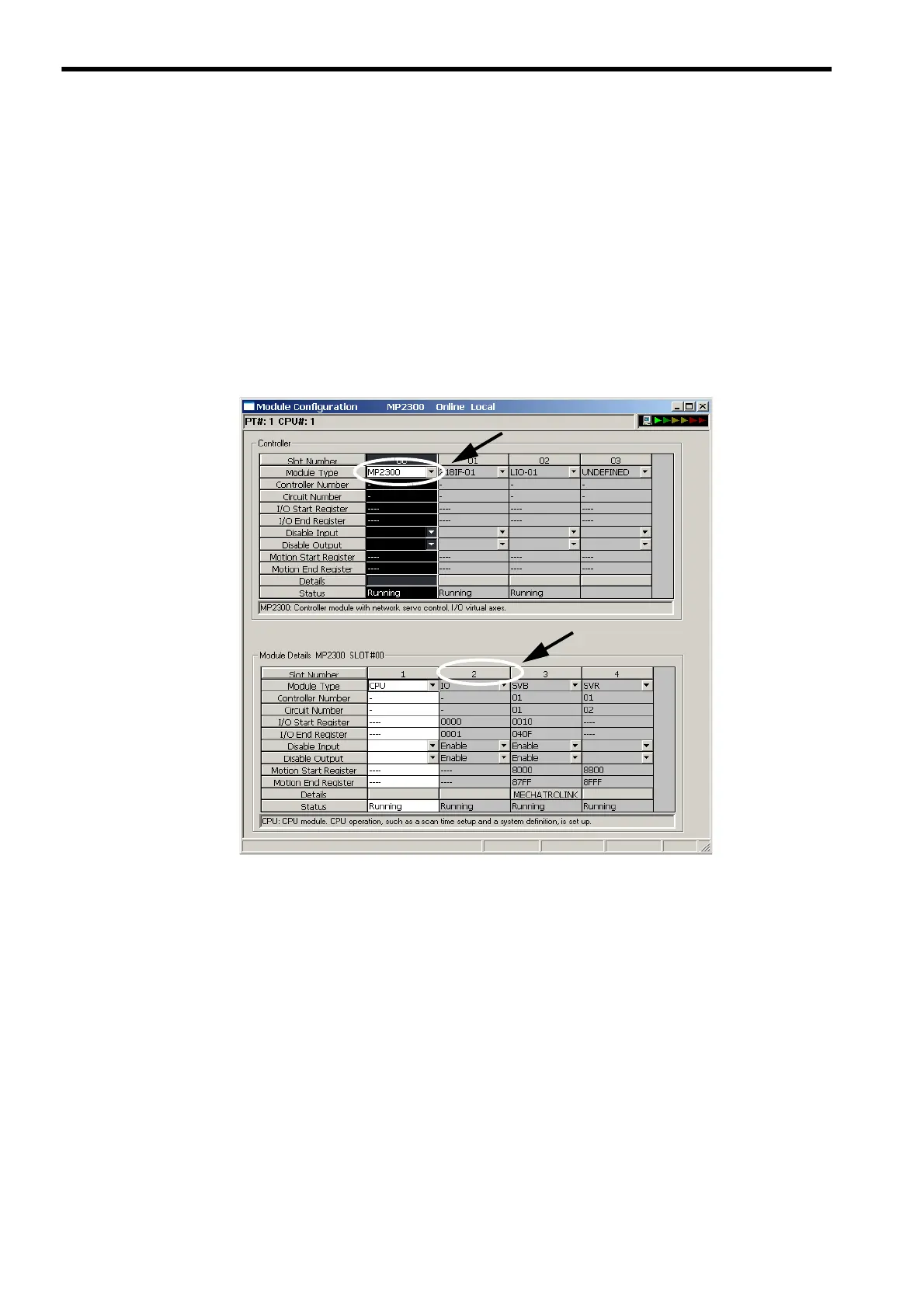

Select MP2300 in the Module Type column of the Controller section in the Module Configuration Window, and then
double-click the Slot Number cell of IO.
The message box will appear and ask for confirmation to create a new file. Click the OK Button to open the Local I/O
Window.
