3.2
Basic Module Connections Specifications
3-13
3
Mounting and Connections
( 3 ) Cable Connections between the MP2300 or I/O Units or the MP2300 and SERVOPACKs
(Except for SGD-

N and SGDB-

AN SERVOPACKs)
Use the MECHATROLINK cable JEPMC-W6002-

or JEPMC-W6003-

for connection between the MP2300
and I/O units or SERVOPACKs (Except for SGD-

N and SGDB-

AN SERVOPACKs)
*1
.

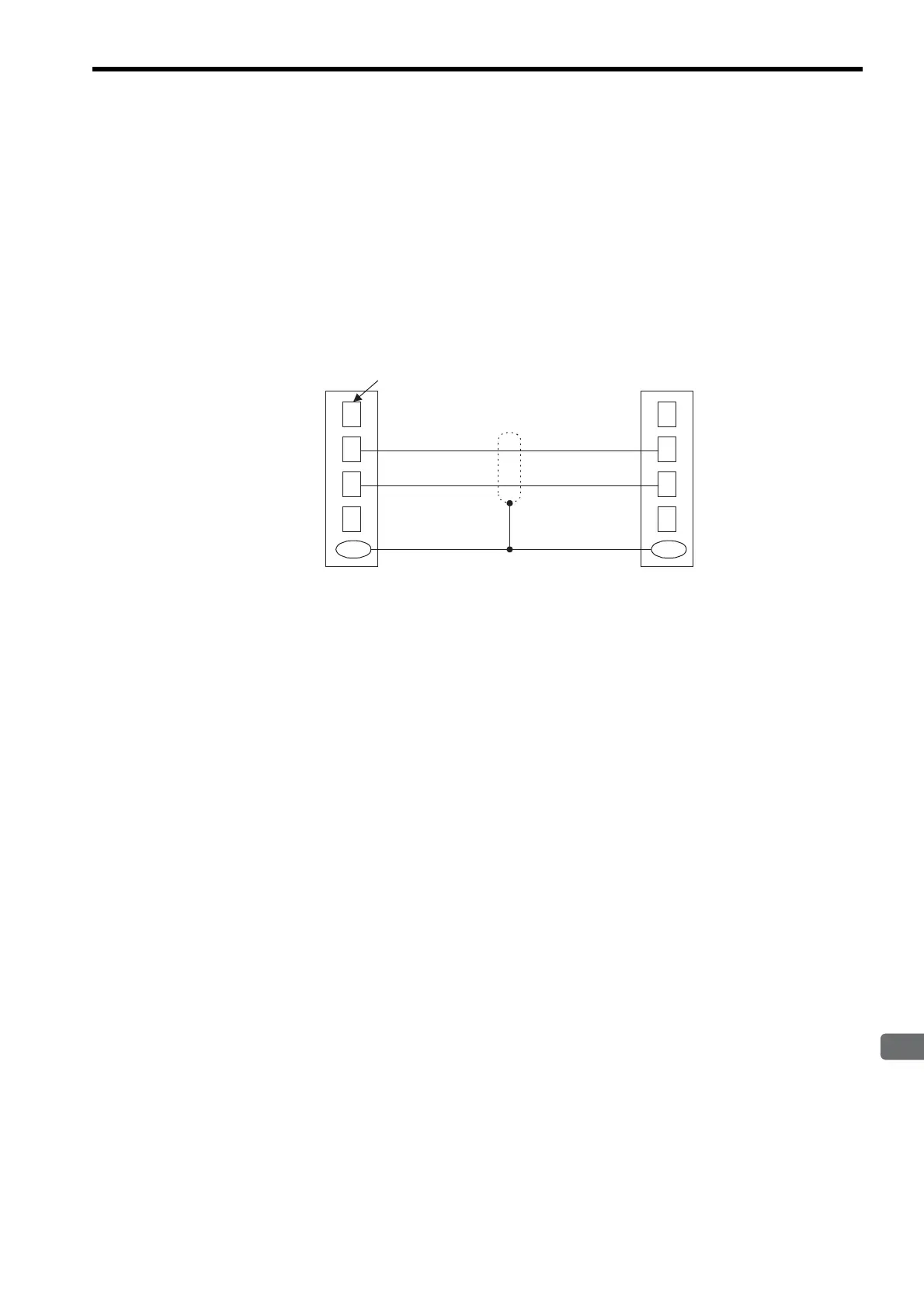

The connection diagram using MECHATROLINK cable JEPMC-W6002-

or JEPMC-W6003-

*2
is shown
below.
* 1. Use MECHATROLINK cable JEPMC-W6011-
 when connecting SERVOPACK SGD-N or
SGDB-AN.
* 2. The JEPMC-W6003-
 cable has a ferrite core.
1
2
3
4
1
2
3
4
Shell Shell
Pin number
Signal Name
(NC)
DATA
DATA
SH
Shield Shield
Signal Name
(NC)
DATA
DATA
SH
Cable Type: JEPMC-W6002-
JEPMC-W6003-
MP2300/SVB-01
I/O Unit or SERVOPACK
