4
System Startup and Sample Programs
4.4.3
Operation Check 2: Position Control
4-54

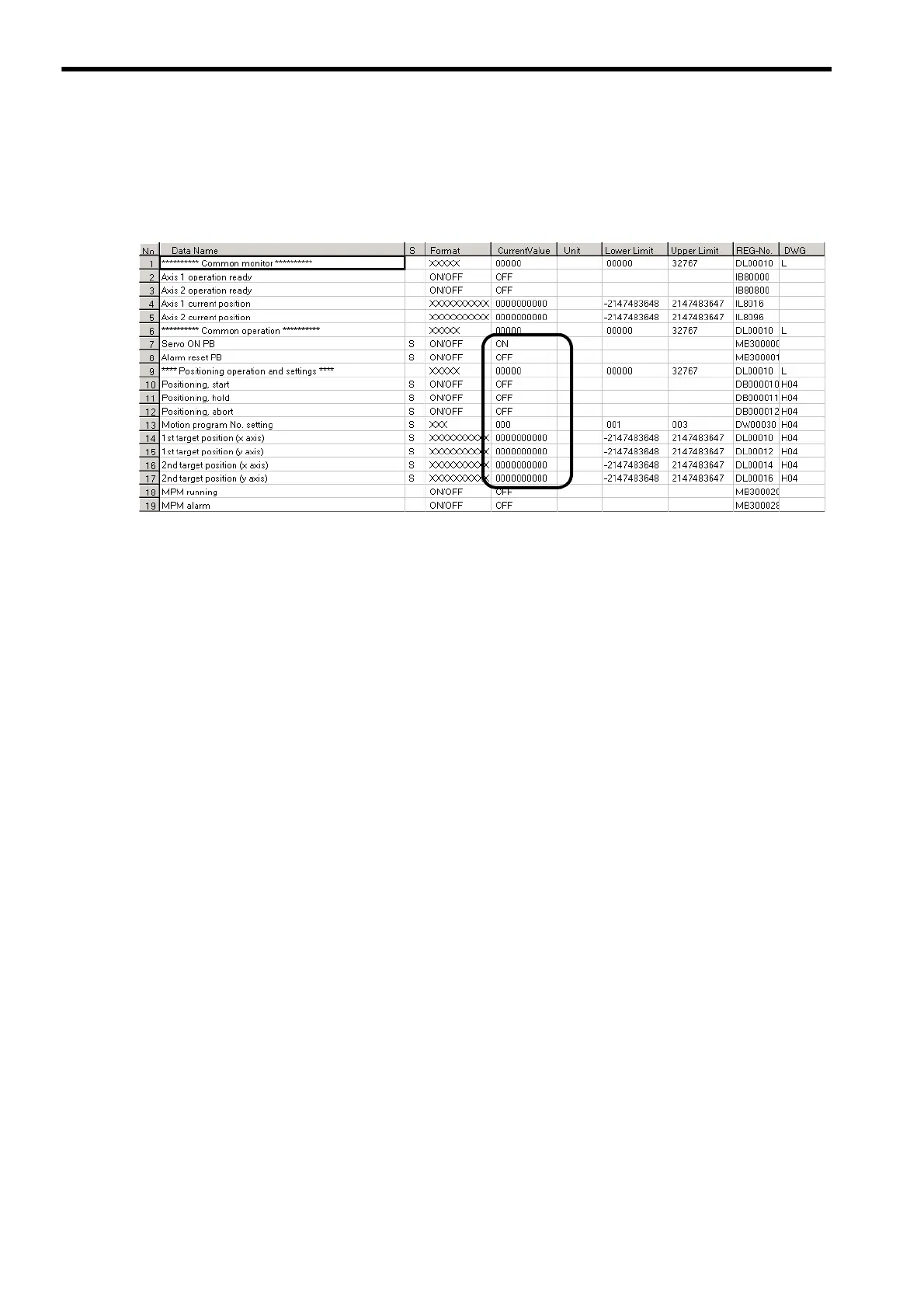

( 3 ) H04 Drawing Tuning Panel
Display the H04 Drawing Tuning Panel as shown in 4.4.1 How to Open the Tuning Panel Window on page 4-44.
Model system operation can be controlled by writing the current values for Common operation and Positioning
operation and settings from the Tuning Panel.
To Next Page
