( 3 ) When the SERVOPACK Tab Page Is Open
The data flow for SERVOPACK parameters is as follows when the SERVOPACK Tab Page is open in the SVB
Definitions Window on the MPE720 (refer to 2.2.5 ( 2 ) [ a ] Opening the SVB Definition Window on page 2-22 for
details on how to open the SERVOPACK Tab Page.):
• The MPE720 writes and displays the parameters that are held in the SERVOPACK’s RAM for the relevant axis to
the Current Value in the SERVOPACK Tab Page.
It also reads and displays the values that are held in the MP2300’s SDRAM values to the Input Data in the SERVO-
PACK Tab.

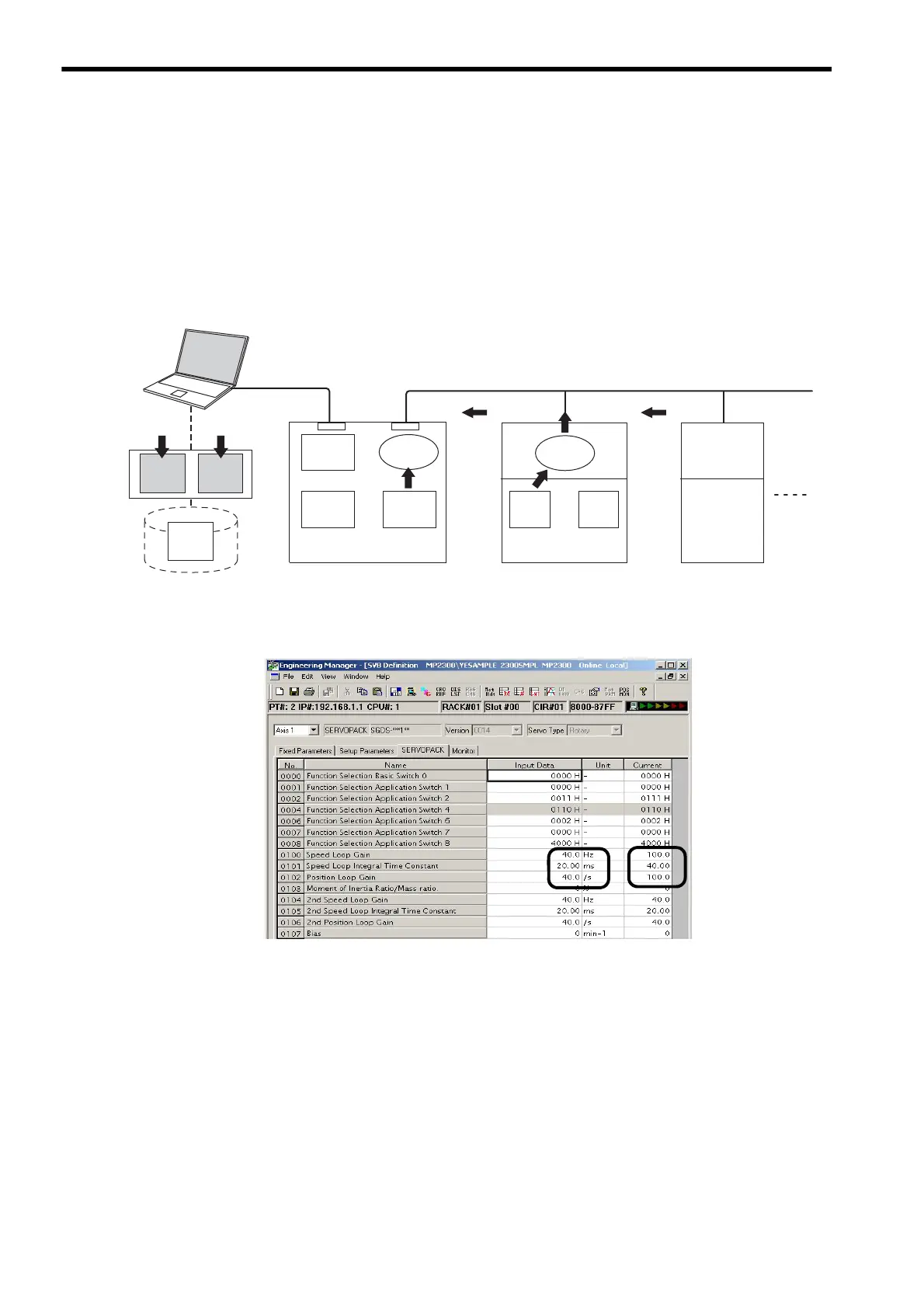

The following figure shows an example of the SERVOPACK Tab in the SVB Definition Window. The values in Cur-
rent Value are different from the values in Input Data.
SDRAM
SRAM
EEP
-ROM
RAM
MECHATROLINK
Input
Data
MPE720 (online)
HDD in personal computer
Display
Current
Value
Input
Data
MP2300
Send Send
SERVOPACKSERVOPACK
Control
Software
System
Software
Parameters
SERVOPACK
Parameters
(All Axes)
Flash
Memory
To Next Page
