2
Module Specifications
2.2.4
Built-in SVB Modules
2-14
( 3 ) Synchronization between Modules
[ a ] Overview
MP2300 Machine Controllers have a function that can synchronize hardware between the CPU and an optional
module. This function enables MECHATROLINK communications in synchronization with high-speed scans. As a
result, synchronization between a built-in SVB Module and an SVB-01 Module, or among multiple SVB-01 Modules,
can be enabled.

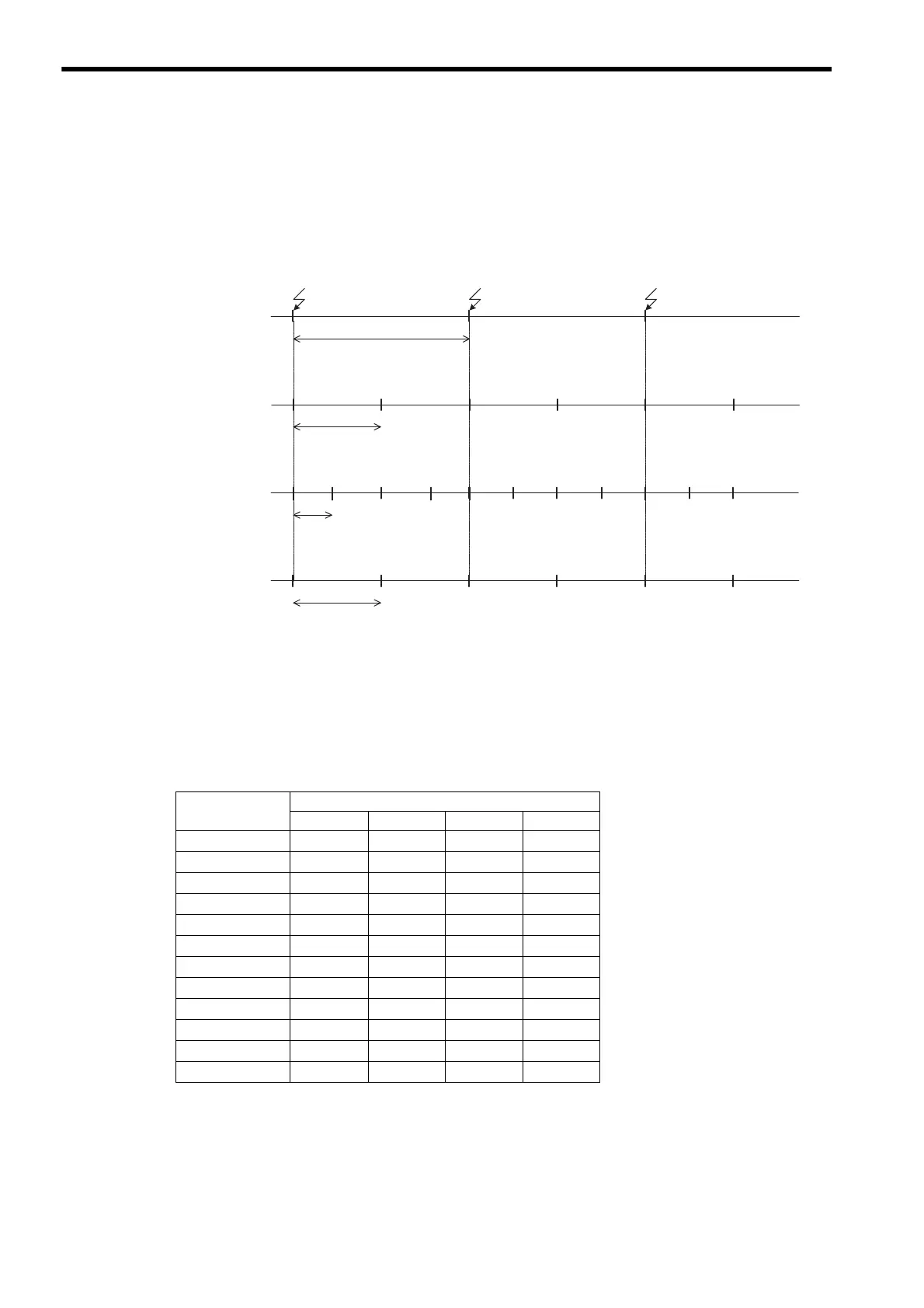

When synchronized mode is used, the start of the high-speed scan and the various communication cycles are
synchronized. This means that commands from the high-speed scan will be sent at consistent points in communication
cycle processing and simplifies distribution processing for interpolation commands.
[ b ] Conditions Under Which Synchronization Is Possible
The following table shows the combinations of high-speed scan times and MECHATROLINK communication cycles
that allow synchronization between modules in the synchronization mode.
[ c ] Timing At Which Modules Are Synchronized
Modules are automatically synchronized when the power supply is turned OFF and ON again.
High-speed scan
4 ms
2 ms
1 ms
2 ms
Communication
cycle for SVB built
into the CPU
Communication
cycle for SVB-01
#1
Communication
cycle for SVB-01
#2
High-speed scan
(RTC: 0.5 ms)
MECHATROLINK Communication Cycle
0.5 ms 1 ms 1.5 ms 2 ms
1.0 ms
Yes Yes − Yes
1.5 ms
Yes − Yes −
2.0 ms
Yes Yes − Yes
2.5 ms
Yes −−−
3.0 ms
Yes Yes Ye s −
3.5 ms
Yes −−−
4.0 ms
Yes Yes − Yes
4.5 ms
Yes − Yes −
5.0 ms
Yes Yes −−
5.5 ms
Yes −−−
6.0 ms
Yes Yes Ye s Yes
:
To Next Page
