MP2300 Basic Module Functions
2-23
3.
Click the Fixed Parameters, Set Up Parameters, or Monitor tab to display the desired page.
If the setting in Servo Type is switched from Rotary to Linear, or vice-versa, some of the displayed parameters
will change. Refer to 4.2.2 Motor Type and Related Alarms in Machine Controller MP2000 Series Built-in SVB/
SVB-01 Motion Module User’s Manual (Manual No.: SIEPC88070033) for details.

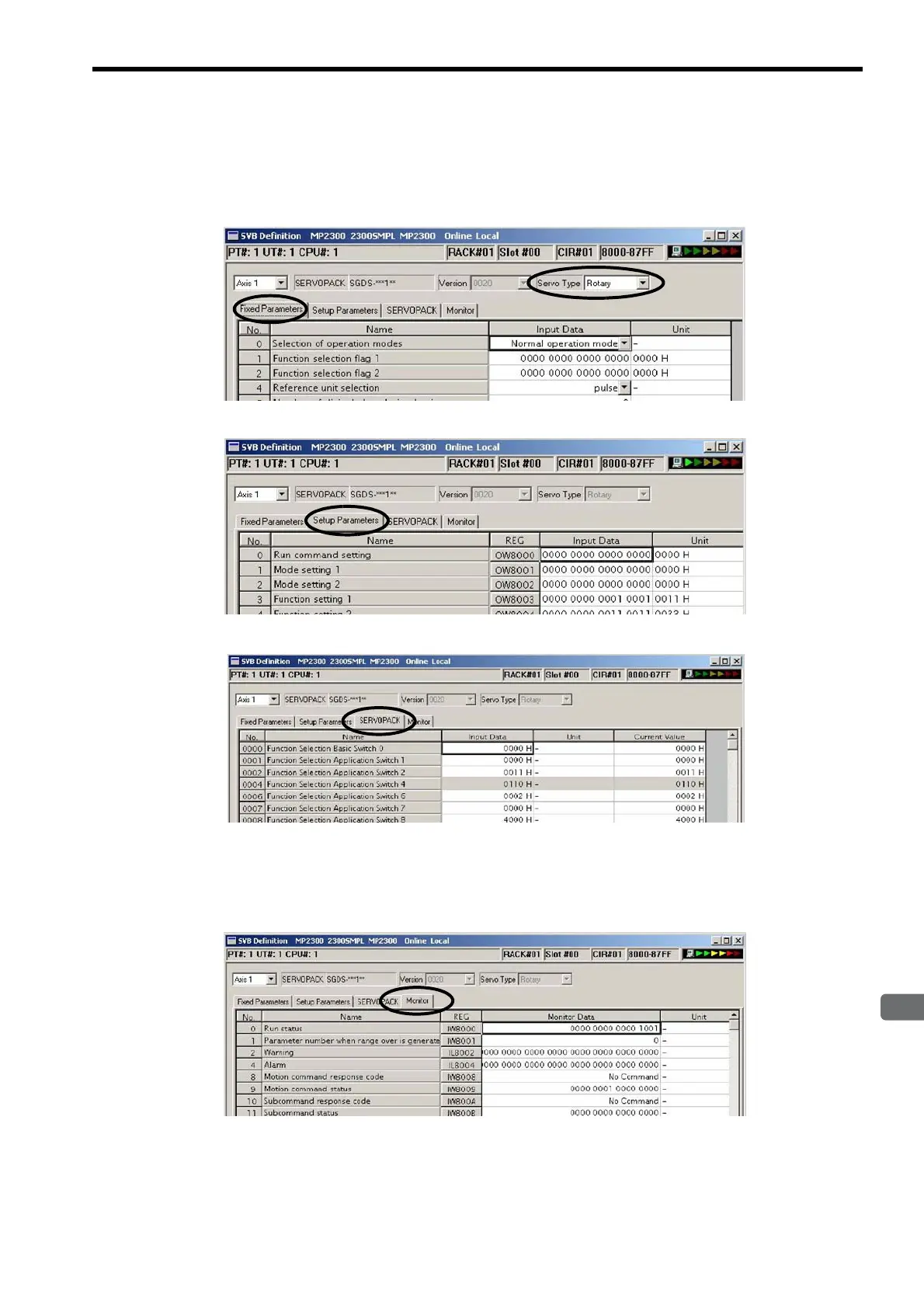

Fig. 2.1 Fixed Parameters Tab
Fig. 2.2 Setup Parameters Tab
Fig. 2.3 SERVOPACK Parameters Tab
Refer to the relevant SERVOPACK user’s manual for information on SERVOPACK parameters.
When using a SERVOPACK parameter Window to save (excluding when the SERVOPACK is replaced), make
sure to select Edit-SERVOPACK Current value-Setting Value.
Refer to B Current Values and Set Values (Input Data) in the SVB Definition Window on page A-5.
Fig. 2.4 Monitor Parameters Tab (read-only)
