3
Mounting and Connections
3.1.3
Replacing and Adding Optional Modules
3-8

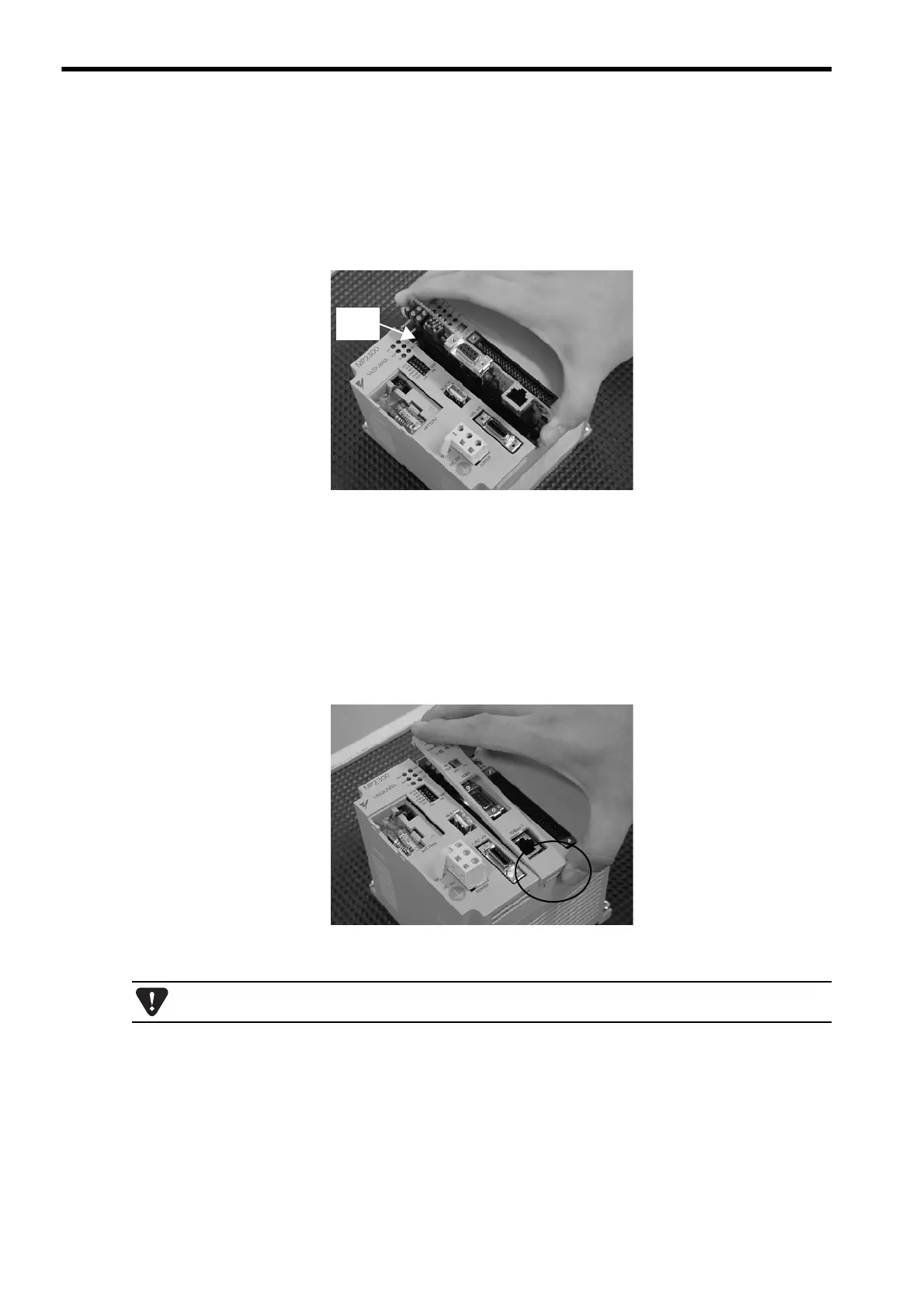

( 3 ) Mounting Optional Modules
1.
Insert Optional Modules.
Hold onto the top and bottom of the Module, align the Module with the left side of the guide rail inside the option
slot, and insert the Module straight in.
If the Module is not inserted on the guide rail, the FG bar on the bottom of the slot may be damaged.
2.
Connect to the Mounting Base Connector.
After inserting the Module all the way to the back, press the Module firmly until it connects securely to the
Mounting Base connected. If the Module is connected securely, the front of the Module should approximately
align with the hooks.
3.
Mount the Option Panel.
Insert the hole on the bottom of the option panel into the bottom hook and then securely attach the hole to the top
hook.
This completes the Optional Module mounting procedure.
Always attach an Option Cover (JEPMC-OP2300) to any unused slot.
