4
System Startup and Sample Programs
4.1.4
Setting and Saving Communication Process (Communication Manager)
4-10
14.

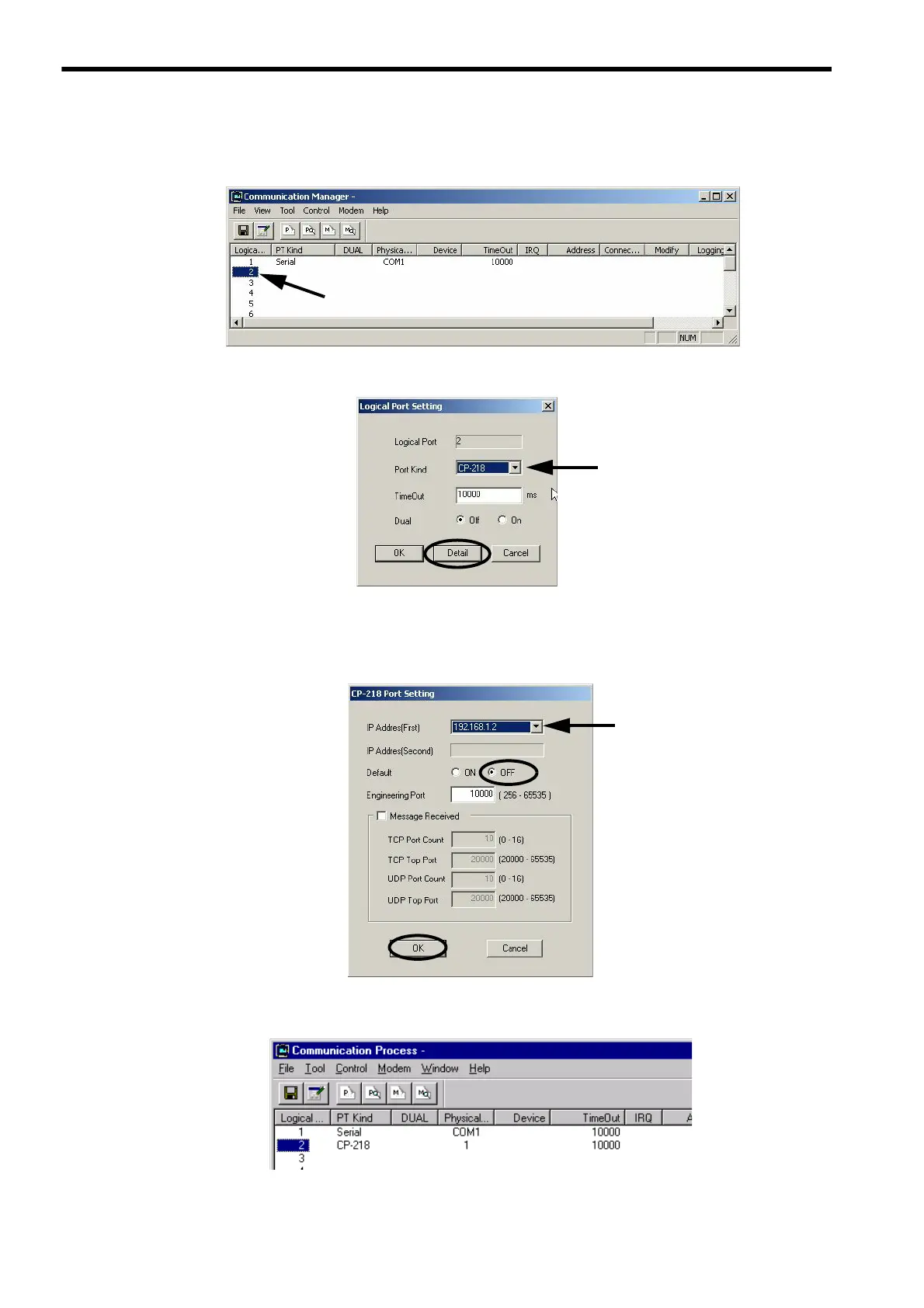

Double-click Logical Port No. 2 in the Communication Process Window to display the Logical Port
Setting Dialog Box.
15.
Select CP-218 under Port Kind in the Logical Port Setting Dialog Box and click the Detail Button.
The CP-218 Port Setting Dialog Box appears.
16.
Enter the IP address of computer and click OFF for Default. Leave the other items on their default
settings. Click the OK Button to close the dialog box.
17.
Click the OK Button in the Logical Port Setting Dialog Box to return to the Communication Process
Window. Check to see if the CP-218 (Ethernet connection ) is assigned to the Logical Port No. 2.
To Next Page
