YASKAWA SGD7S-R70A User Manual

7.4 Jog Speed Table Operation
7.4.5 Jog Speed Table Operation Example
7-51
7
Operation with Digital I/O
7.4.5 Jog Speed Table Operation Example

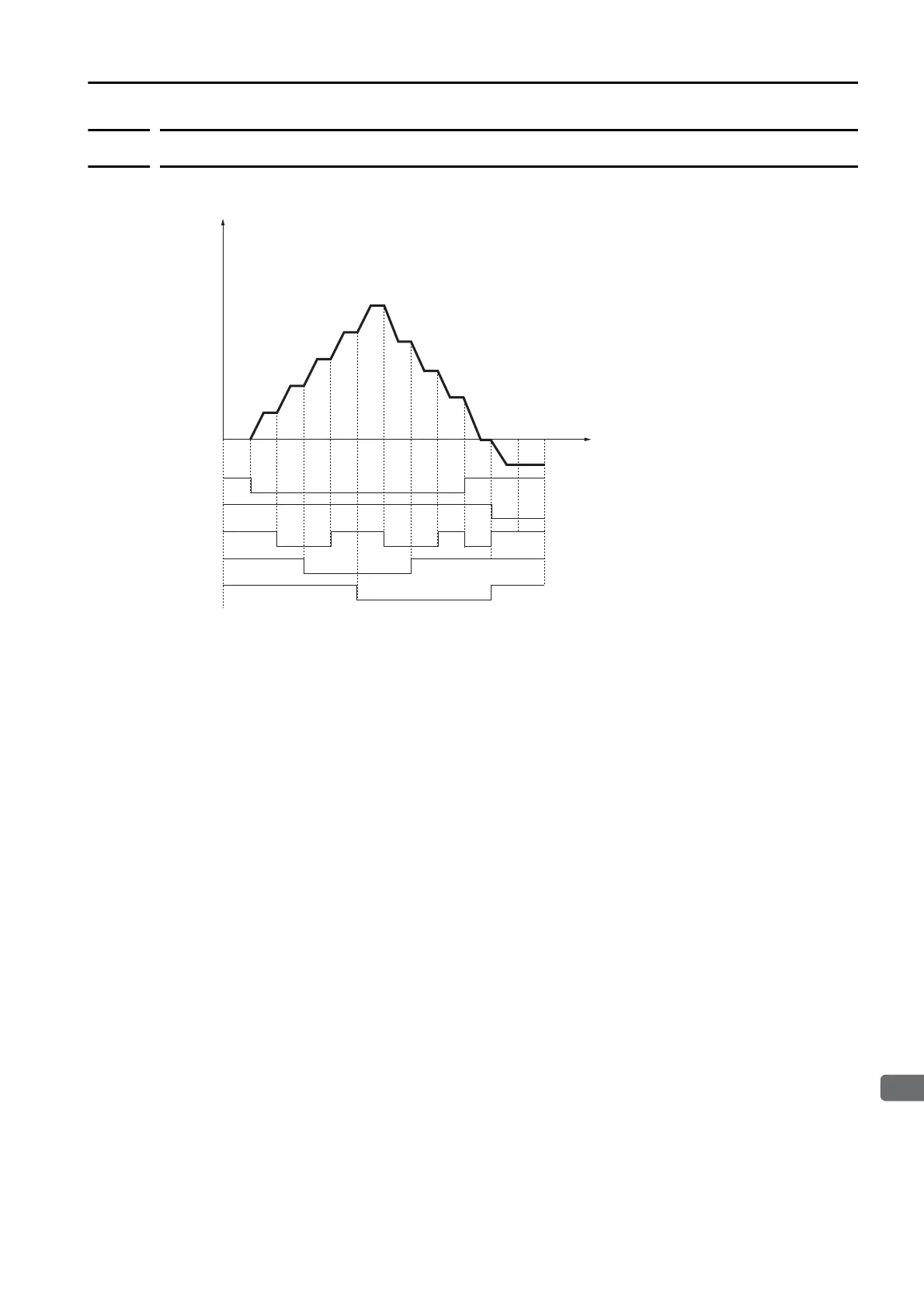

This example shows how to perform operation by using the /JOG0 to /JOG2 (Jog Speed
Selection) signals to specify the jog speeds that are registered in the jog speed table.
*1. Forward operation at the jog speed is performed while the /JOGP signal is ON.
*2. Reverse operation at the jog speed is performed while the /JOGN signal is ON.
/JOGP
*1
/JOGN
*2
/JOG0
/JOG1
/JOG2
JSPD0
JSPD1
JSPD3
JSPD2
JSPD6
JSPD7
JSPD5
JSPD4
JSPD0
Speed
