7.5 ZONE Outputs
7.5.2 Parameters Related to ZONE Signals
7-54
ZONE Table Settings and ZONE Numbers

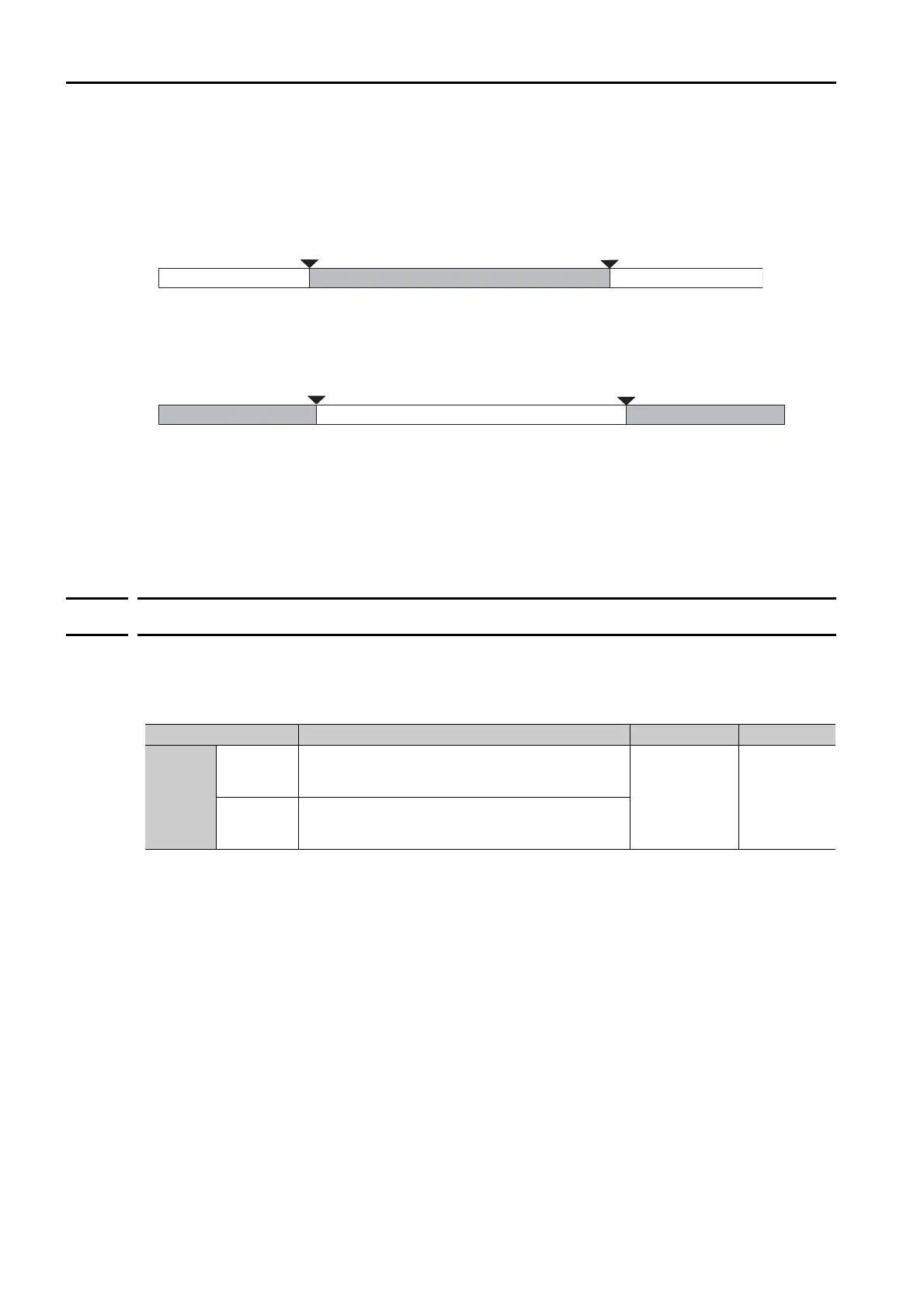

The relationship between the ZONE table settings and the ZONE numbers is shown below.
• ZONE N ≤ ZONE P
The ZONE signals for the corresponding ZONE number is output if the current value is
between ZONE N and ZONE P, inclusive (the shaded part in the following figure).
• ZONE P ≤ ZONE N
The ZONE signals for the corresponding ZONE number is output if the current value is less
than or equal to ZONE P or greater than or equal to ZONE N (the shaded parts in the follow-
ing figure).
• Duplicated Settings in the ZONE Table
The smaller ZONE number is output.
• ZONE N and ZONE P = 0
The ZONE number is disabled.
• When the Current Value Is Not In Any ZONE
All of the ZONE signals will be OFF (0).
7.5.2
Parameters Related to ZONE Signals
With the following parameter, the initial status* of the programmable output signals (/POUT0 to
/POUT2) can be set to ZONE signals.
* The initial status is the status that exists after the control power supply is turned ON or after resetting the SERVO-
PACK.
Parameter Meaning When Enabled Classification
Pn64C
n.0
(default
setting)
When the control power supply is turned ON or the
SERVOPACK is reset, the /POUT0 to /POUT2 sig-
nals are turned OFF.
After restart Setup
n.1
When the control power supply is turned ON or the
SERVOPACK is reset, the /POUT0 to /POUT2 sig-
nals are ZONE signals.
To Next Page
