10.3 Panel Operator
10.3.1 Panel Operator Key Names and Functions
10-20
10.3 Panel Operator
10.3.1 Panel Operator Key Names and Functions

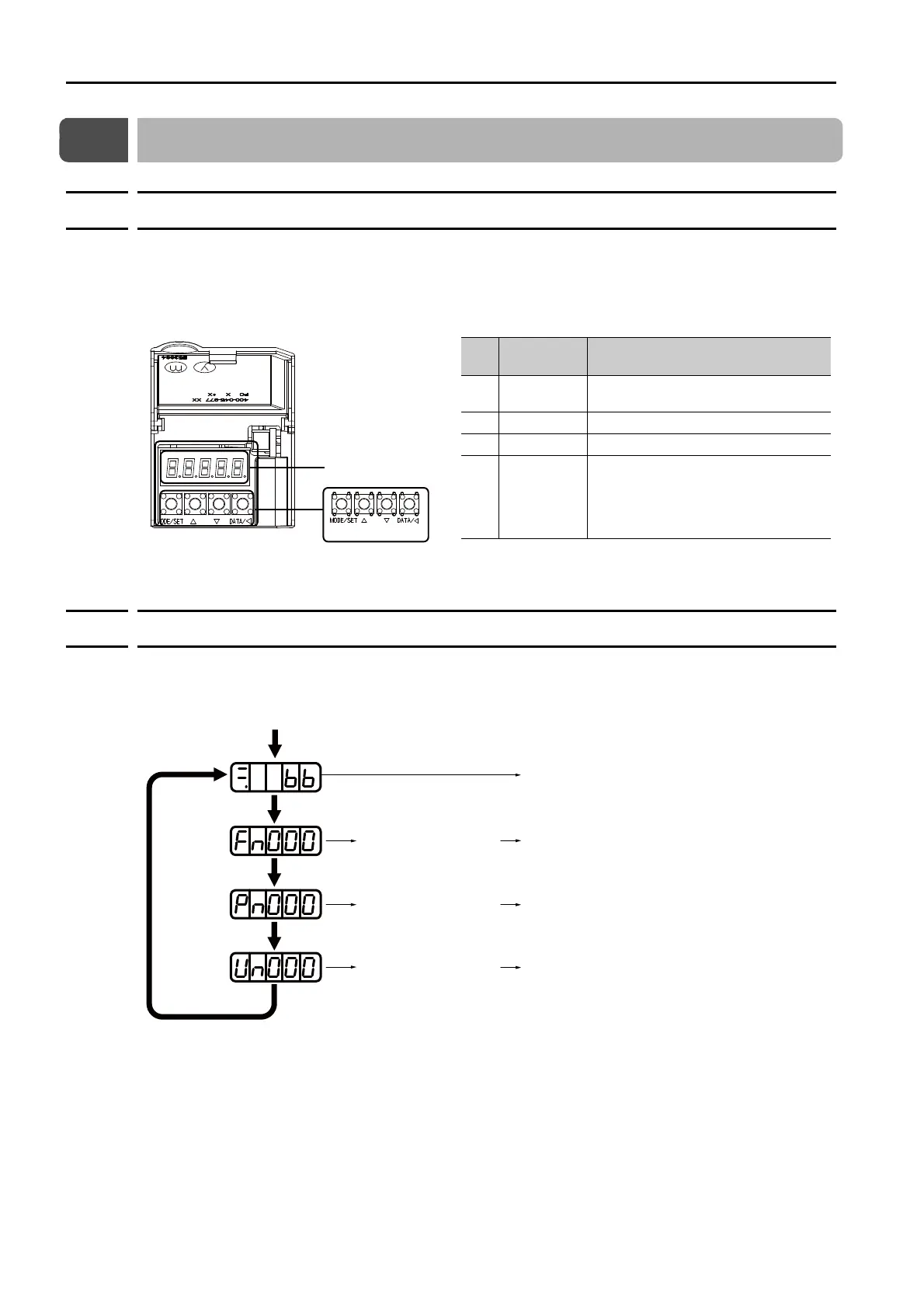

The Panel Operator consists of a panel display and Panel Operator keys.
You can use the Panel Operator to set parameters, display status, execute utility functions, and
monitor SERVOPACK operation.
The Panel Operator key names and functions are given below.
10.3.2 Changing Modes
Press the MODE/SET Key to change between the modes as shown below.
Refer to the reference pages for the operating procedures in each function mode.
c
d
e
f
Panel display
Panel Operator
Key
No.
Key Name Function

MODE/SET
Key
• Changes the display.
• Confirms settings.

UP Key Increases the setting.

DOWN Key Decreases the setting.

DATA/SHIFT
Key
• Displays the setting. To display the
setting, press the DATA/SHIFT Key
for approximately one second.
• Moves to the next digit on the left
when a digit is flashing.
Power ON
Press the MODE/SET Key.
Press the MODE/SET Key.
Press the MODE/SET Key.
Press the MODE/SET Key.
Press the DATA/SHIFT Key
for approx. 1 second.
Press the DATA/SHIFT Key
for approx. 1 second.
Press the DATA/SHIFT Key
for approx. 1 second.
Utility Function Mode (Fn)
Status Display Mode
Analog
Monitor Display Mode (Un)
Parameter Setting Mode (Pn)
