YASKAWA SGD7S-R70A User Manual

7.2 Homing
7.2.3 Homing Procedures
7-8

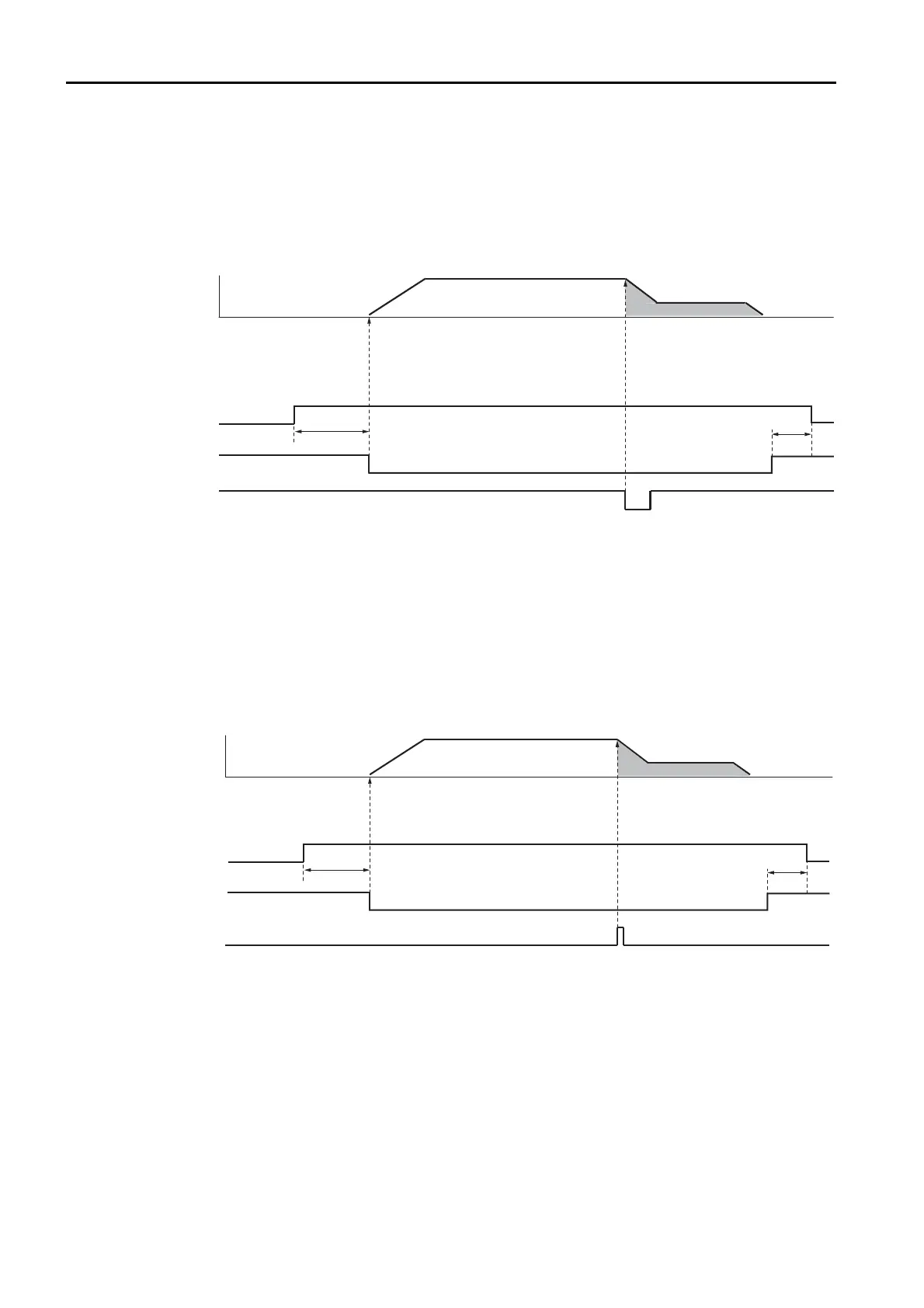

Using Only the /DEC Signal for Homing (Pn642 = n.2)
 Turn ON the /HOME signal. Homing starts. The motor will rotate in the direction specified in
Pn643 = n.X (Homing Direction) at the speed specified in Pn646 (Approach Speed).
 When the /DEC signal turns ON, the motor decelerates to the creep speed.
 Homing is completed after the motor moves the final travel distance. Set Pn63C to the value
of the current position where the motor is stopped.
Using Only the Encoder Origin (Phase C) for the Homing
(Pn642 = n.3)
 Turn ON the /HOME signal. Homing starts. The motor will rotate in the direction specified in
Pn643 = n.X (Homing Direction) at the speed specified in Pn646 (Approach Speed).
 When the encoder’s origin signal (phase C) is detected, the motor decelerates to the creep
speed.
 Homing is completed after the motor moves the final travel distance. Set Pn63C to the value
of the current position where the motor is stopped.
/HOME
/DEC
/MODE 0/1
1 ms min.
0 ms min.
Operation
Pattern
Speed
Time
Approach speed (Pn646)
Creep speed
(Pn648)
Final travel distance (Pn64A)



/HOME
/MODE 0/1
0 ms min.
1 ms min.
Operation
Pattern
Speed
Time
Approach speed (Pn646)
Creep speed
(Pn648)
Final travel distance (Pn64A)
Encoder origin
(phase C)



