SERVO SELECTION AND DATA SHEETS
5.1.1 Selecting a Servomotor cont.
208
SGM-JJ_____
SGM-jjA____
SGM-jjV____
Start Servomotor selection
1) Select motor capacity
If necessary, refer to the data sheets in
5.2.1
Ratings and Specifications.
D
Fill in Machine Data Table
Refer to 3) Machine Data Table on page 210.
D
Select capacity using
Servomotor sizing software.
See note on the next page.
Determine motor capacity
Enter rated output
2) Determine supply voltage
100V / 200V ?
200 V power supply
100 V power supply
DDD
DDD
DDD
Enter code as characters 1 and 2:
30W (0.04HP) = A3, 50W (0.07HP) = A5,
100W (0.13HP) = 01, 200W (0.27HP) = 02,
300W (0.40HP) = 03, 400W (0.53HP) = 04,
750W (1.01HP) = 80

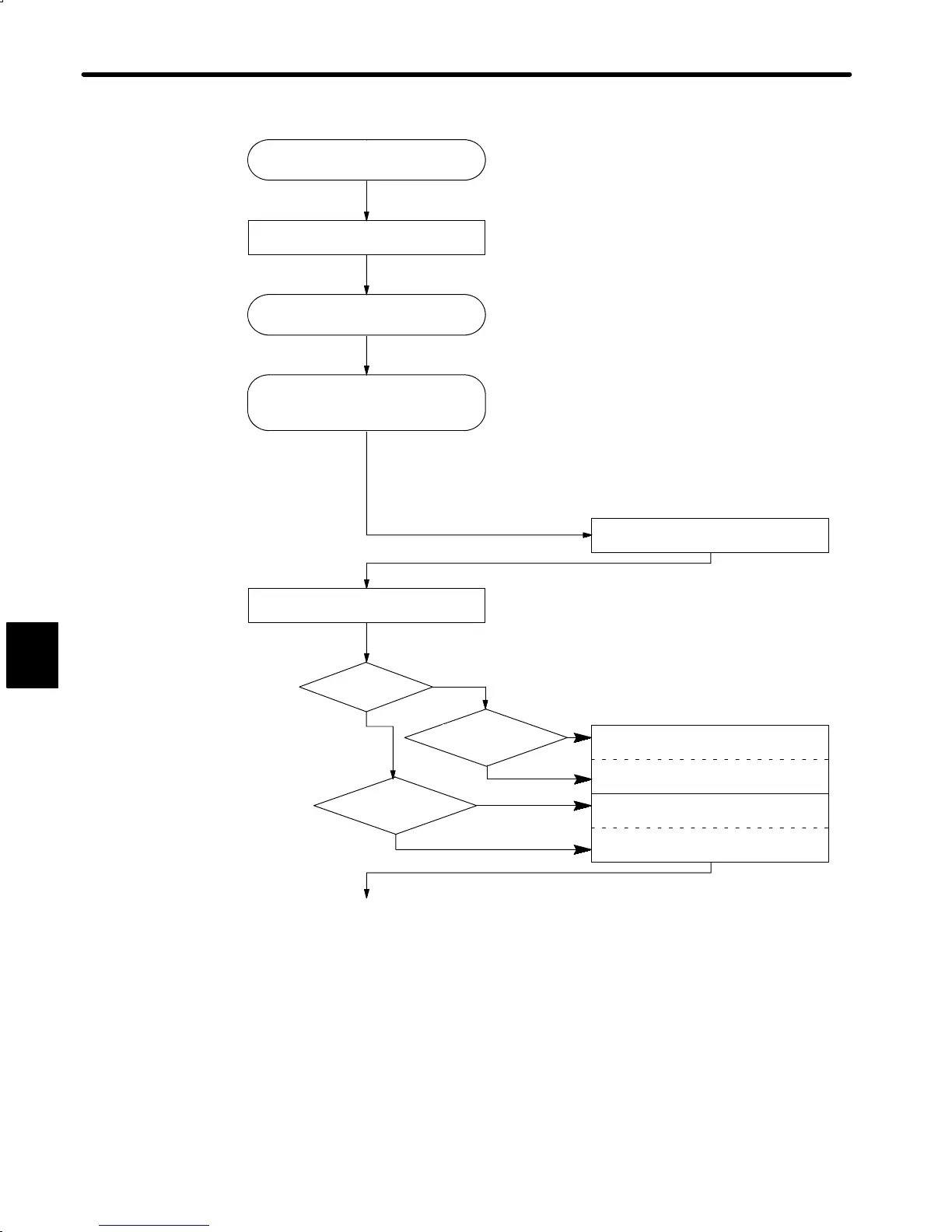

Flowchart for Servomotor Selection
To next page(A)
EN standard
application ?
EN standard
application ?
SGM-jjB____
SGM-jjW____
No
No
Yes
Yes
