SERVO SELECTION AND DATA SHEETS
5.2.2 Mechanical Characteristics
230
5.2.2 Mechanical Characteristics

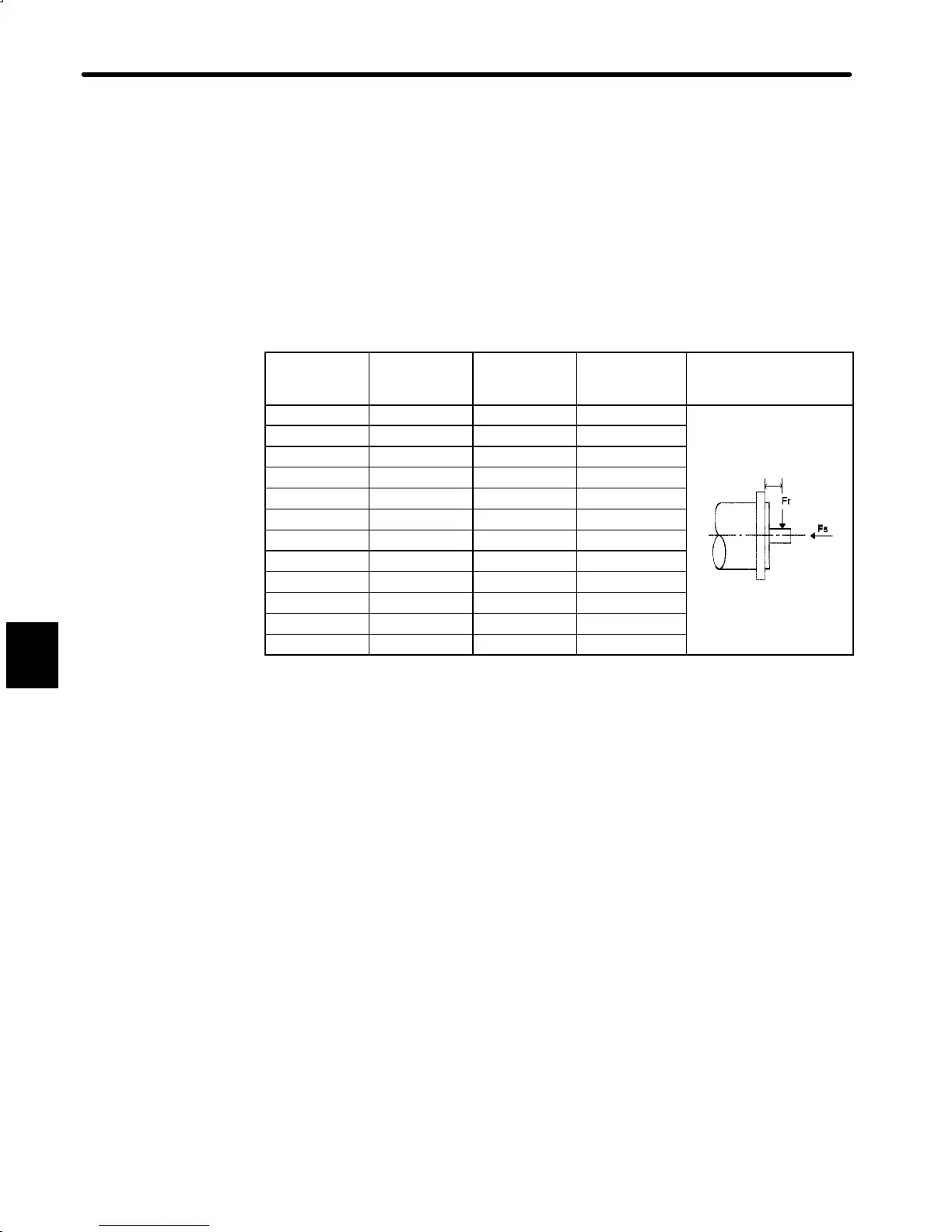

1) Allowable Radial Load, Allowable Thrust Load
The output shaft allowable loads for SGM and SGMP Servomotor are shown below.
Conduct mechanical design such that the thrust loads and radial loads do not exceed the
values stated below.
Servomotor
Type
Allowable
Radial Load
Fr [N(lb)]
Allowable
Thrust Load
Fs [N(lb)]
LR
mm
(in.)
Reference Diagram
SGM-A3 68 (15) 54 (12) 20 (0.82)
SGM-A5 68 (15) 54 (12) 20 (0.82)
SGM-01 78 (17) 54 (12) 20 (0.82)
SGM-02 245 (55) 74 (16) 25 (1.02)
LR
SGM-03 245 (55) 74 (16) 25 (1.02)
SGM-04 245 (55) 74 (16) 25 (1.02)
SGM-08 392 (88) 147 (33) 35 (1.43)
SGMP-01 78 (17) 49 (11) 20 (0.82)
SGMP-02 245 (55) 68 (15) 25 (1.02)
SGMP-03 245 (55) 68 (15) 25 (1.02)
SGMP-04 245 (55) 68 (15) 25 (1.02)
SGMP-08 392 (88) 147 (33) 35 (1.43)
Note The radial load and thrust load limit values are the sum of the loads generated by
the motor torque and the external loads applied to the shaft.
