5.6 Specifications and Dimensional Drawings of Peripheral Devices
363
5.6.4 Brake Power Supply
1) Brake power supplies are available for 200 V and 100 V input.
200 VAC Input: LPSE-2H01
100 VAC Input: LPDE-1H01
Use for Servomotor with brake.

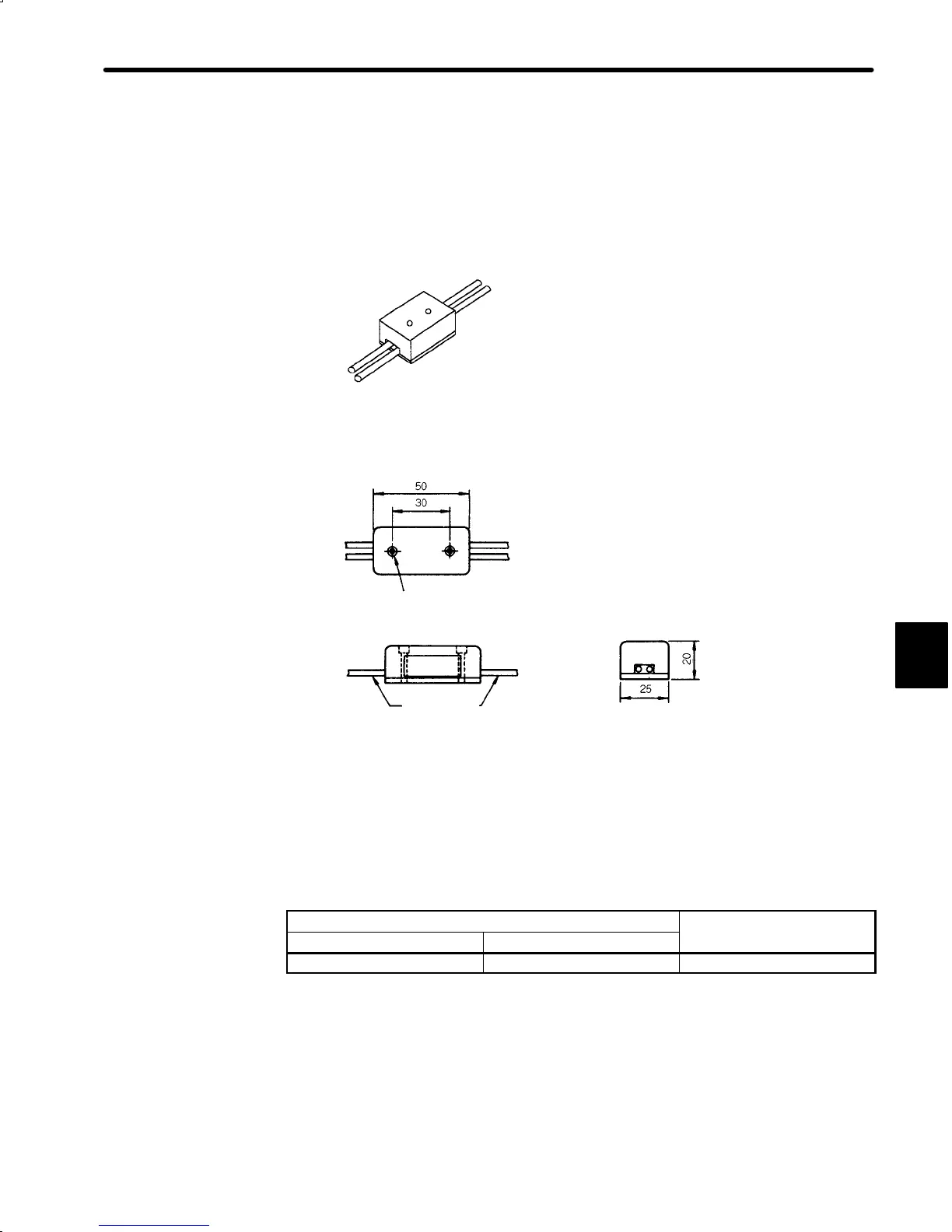

• Dimensional Drawings
Manufactured by Yaskawa Controls Co., Ltd.
Name
Plate
Lead Wires
(1.97)
(1.18)
(0.98)
(0.79)
2-∅3(2-∅0.12) MTG HOLES
(SPOT FACING ∅5.5
(∅0.22), 4 (0.16) LONG)
• Lead Wire Length: 500 mm each (19.69 in.)
• Max. Ambient Temperature: 60_C
• Lead Wires: Color Coded
AC Input
Brake
100V 200V
Blue/White Yellow/White Red/Black
