BASIC USES OF Σ-SERIES PRODUCTS
2.3.3 Examples of Connecting I/O Signal Terminals
30
2.3.3 Examples of Connecting I/O Signal Terminals
1) This sub-section provides typical examples of connecting to main host controllers. Con-
nection to other host controllers is also possible. Connect to the host controller according
to the connection examples shown below by referring to technical documentation for the
host controller.
NOTE This sub-section describes signals related to the DR2 Servopack only. For other signals,
refer to the relevant technical documentation.

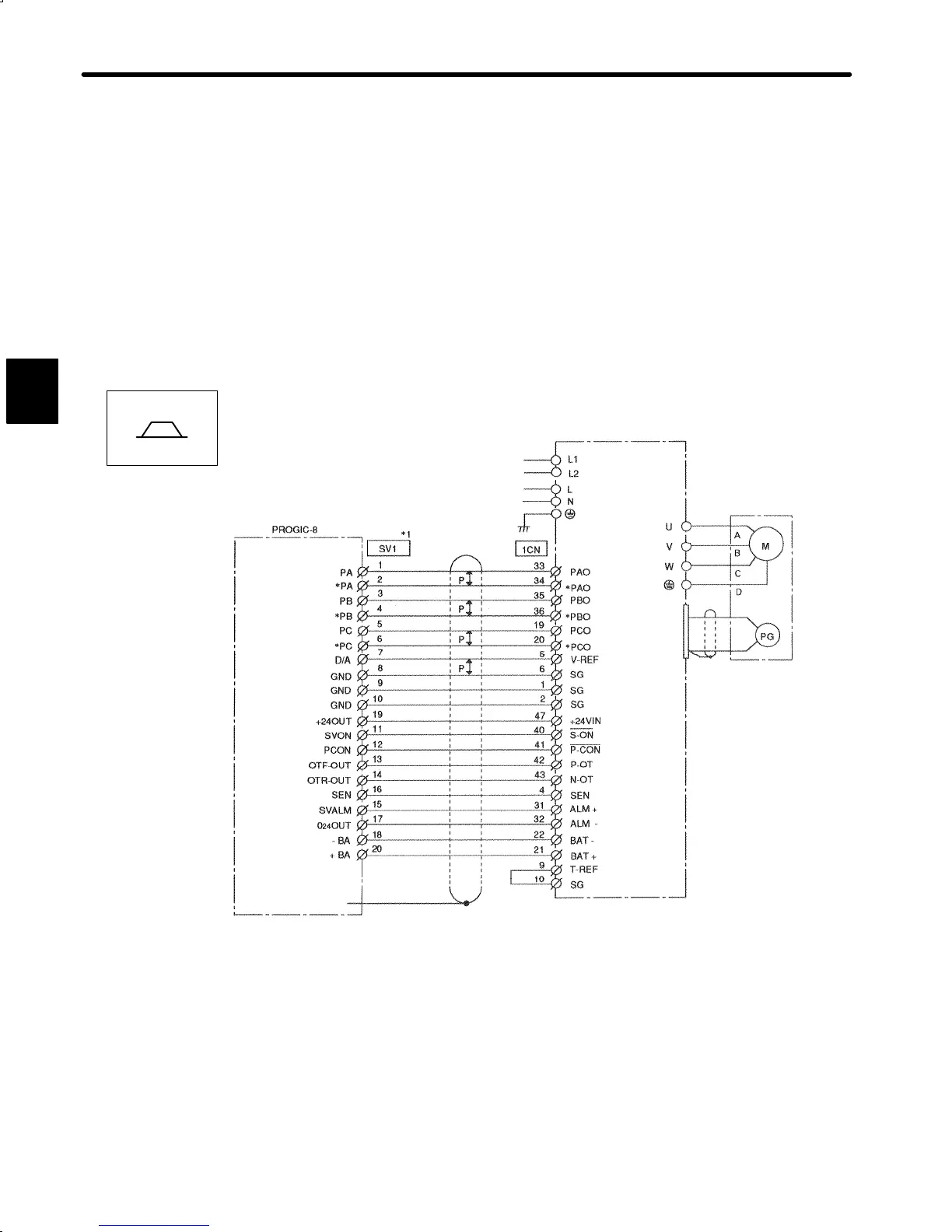

2) Example of Connecting to PROGIC-8
Servopack for Speed Control
(MADE BY YASKAWA)
FG (connector frame)
*1 These pin numbers are also applicable to SV2 to SV4.
*2 Do not change the standard settings of user constants for the Servopack.
Servopack
Cable between PROGIC−8 and DR2 Servopack
Type JEPMC − W5521 − 05 (1.6ft.)
JEPMC − W5521 − 10 (3.3ft.)
JEPMC − W5521 − 30 (9.8ft.)
2
Speed
To Next Page
