Connection
and
Wiring
31

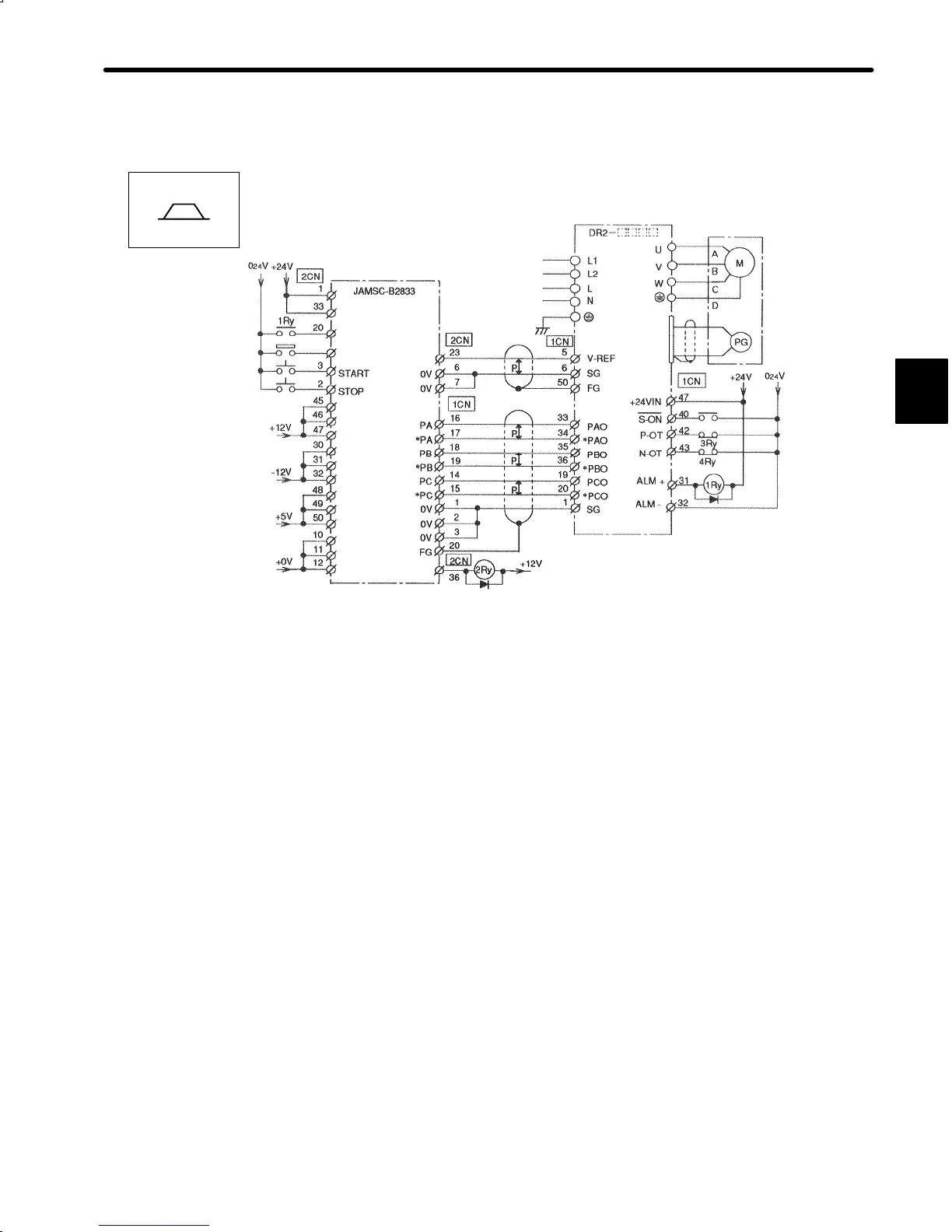

3)
Example
of
Connecting
to
GL-Series
Positioning
Module
B2833
Servopack
for
Speed
Control
(MADE
BY
Y
ASKAW
A)
SERVO
NORMAL
DECEL
LS
ALARM
SERVOP
ACK
*1
These
signals
are
output
for
approximately
two
seconds
when
the
power
is
turned
ON.
T
ake
this
into
consideration
when
designing
a
power
ON
sequence.
Relay
1Ry
is
used
to
stop
main
circuit
power
supply
to
the
Servopack.
*1
D/A
OUTPUT
35
2
Speed
44
46
