SERVO SELECTION AND DATA SHEETS

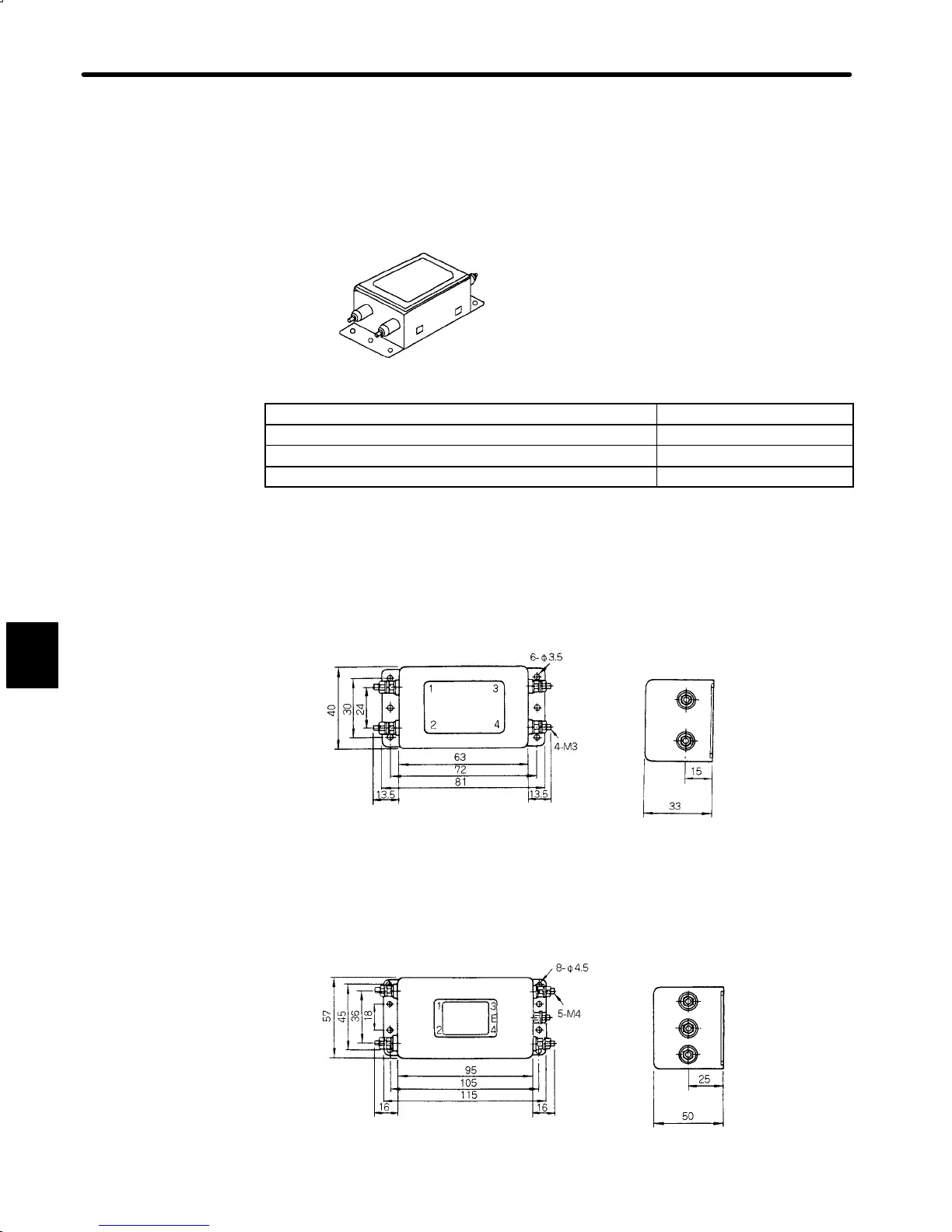

5.6.9 Noise Filter
374
5.6.9 Noise Filter
1) Select the noise filter from the following three types according to the Servopack capacity.
As for the noise filter conforming to the EMC instructions, refer to 7.2.2.
Install to eliminate external noise from the power lines.
Servopack Capacity Noise Filter Type
30W(0.04 HP),50W(0.07HP),100W(0.13HP),200W(0.27HP) LF-205A
200W(0.27HP)(100V),400W(0.53HP) LF-210
300W(0.40HP)(100V),750W(1.01HP) LF-220
• Dimensional Diagrams
• LF-205A (Single-phase 200 VAC Class, 5 A)
IN Rating Plate
(1.57) (1.18) (0.94)
(2.48)
(2.83)
(3.19)
(0.53)
(0.53)
(6-Φ0.14)
(0.59)
(
1.30
)
• LF-210 (Single-phase 200 VAC Class, 10 A)
IN Rating
Plate
(8-Φ0.18 )
(2.24) (1.77) (1.42) (0.71)
(3.74)
(4.13)
(4.53)
(0.98)
(1.97)
(0.63) (0.63)
5
